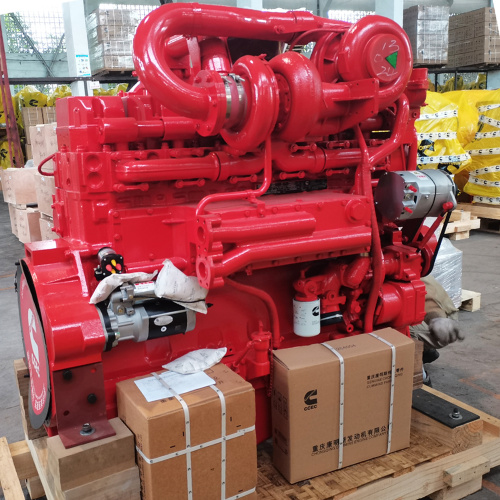

Belaz Mining Truck Engine 700hp Cummins Engine QSK19-C700

Belaz Mining Truck Engine 700hp Cummins Engine QSK19-C700

Get Latest Price

Transportation:: Ocean, Land, Air, Express

Port:: Chongqing, Shanghai, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China.Chongqing
Productivity:	10000
Supply Ability:	10000 Set/Sets per Year
Payment Type:	L/C,D/P,D/A,T/T,MoneyGram,online bank
Incoterm:	FOB,CFR,CIF,EXW,DDP,DDU,FCA
Certificate:	ISO9001
HS Code:	8408909390
Transportation:	Ocean,Land,Air,Express
Port:	Chongqing,Shanghai,Shenzhen

Product Description

Engine Type:Cummins mining dumper engine

Endine modle:Cummins mining dumper engine QSK19-C700

• Ultra strong power
• Low fuel consumption and good fuel economy
Patented technology PT fuel system, has ultra-high injection pressure, which to ensure good engine atumization, adequate combustion.
The efficient Holset exhaust turbocharger ensures greater air intake, improves engine efficiency, further improves combustion, and reduces engine fuel consumption.
Applying AA cooling technology to ensure more adequate intake, and better fuel economy.
• Compact structure and easy maintainiance
• Advanced design and great reliability
• Professional configuration and best quality
• Mature products with world reputation
Widely used: QSK19 series of Cummins engines are widely used in construction machinery, heavy vehicles, power generation, ship power and other fields; and form strategic partners with key customers
High reputation: QSK19 series Cummins engine has won a high recognition from customers in all areas because of its strong power, ultra low fuel consumption, high reliability and low maintenance costs.
Technology upgrades: With air-air intercooler, slow start and other technologies, further improved the engine’s reliability, power, fuel economy and emissions and other indicators. The application of electric fuel injection technology of QSK19 Cummins engines which meet the third phase of non-road mobile machinery emission standards, and will further enhanced the high-powered engine manufacturing industry’s leading position of CCEC in China.

Engine Model	QSK19- C700
Rating Type	Continuous
Rated Engine Power	700hp
Rated Engine Speed	2100rpm
Peak Engine Torque@ 1500 rpm	1513 lb. H ft. / 2052 NHm
Cylinders	6
Aspiration	Turbocharged
Compression Ratio	15.5:1
Piston Speed	1870 ft/min / 9.5 m/sec
Displacement	19L
Bore*Stroke	159*159mm
Fuel System	Mechanical speed governors /ECM
Fuel Consumption at Rated Speed	24gal/hr / 90 l/hr
Approximate Fuel Flow to Pump	71gal/hr / 270 l/hr
Intake Manifold Pressure	36in. Hg / 122kPa
Intake Air Flow	1101 cfm / 520 l/sce
Heat Rejection to Ambient	2618 BTU/min / 46 kW
Size-Engine Only	200015001900mm
Weight (Dry) - Engine Only	1725kg
Minimum Idle Speed Setting	650-700rpm
Normal Idle Speed Variation	±25rpm
High Idle Speed Range Minimum	1962rpm
High Idle Speed Range Maximum	2106rpm
Standard Thermostat Operating Range (Start to Open - Full Open)	82°C-94°C
Optional Configuration	1.Air compressor is optional. 2.According to the Cooling Type( Water-cooled, Air-cooled.) Fan, Radiator / Heat Exchanger, Expansion Tank, Sea Water Pump, Control System, Remote Control System.

Cummins Kta19 Truck Engine For Sale Kta19 C Cummins Kta19 Engine

About Us

TC Diesel Engine is an authorized dealer of Cummins and has been in the engine industry for more than 15 years. Our main products include N14/NT855/KTA19/KTA38/KTA50/QSK19/QSK38/QSN/M11/ISM/4BT/6BT/6CT/ISX etc. Applications aremarine engines, mining engines, truck engines, pump engines, drilling engines and generator sets. We also have a large stock of genuine engine parts.

Advantages:

* Excellent senior technical team trained by Cummins factory.
* Professional service.
* Recommends the best configuration according to customers' application conditions.
* Huge inventory of genuine parts
