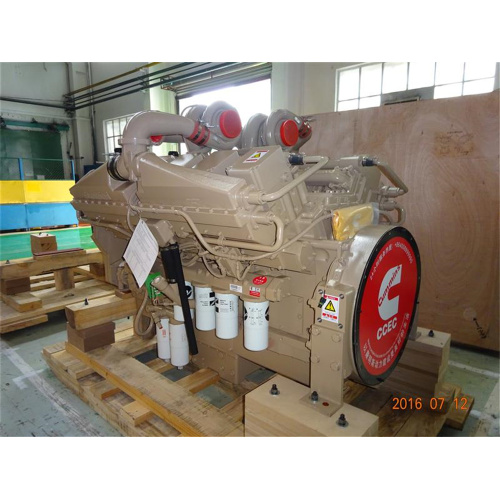

Agricultural machinery engine 1000hp KTA38-P1000 for Cummins

Agricultural machinery engine 1000hp KTA38-P1000 for Cummins

Get Latest Price

Transportation:: Ocean, Land, Air, Express

Port:: Chongqing, Shanghai, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Chongqing.China
Productivity:	10000
Supply Ability:	10000 Set/Sets per Year
Payment Type:	L/C,T/T,MoneyGram
Incoterm:	FOB,CFR,CIF,EXW,DDU,DDP
Certificate:	ISO9001
HS Code:	8408909390
Transportation:	Ocean,Land,Air,Express
Port:	Chongqing,Shanghai,Shenzhen

Product Description

Ultra strong power
• Low fuel consumption and good fuel economy
Patented technology PT fuel system, has ultra-high injection pressure, which to ensure good engine atumization, adequate combustion.
The efficient Holset exhaust turbocharger ensures greater air intake, improves engine efficiency, further improves combustion, and reduces engine fuel consumption.
Applying AA cooling technology to ensure more adequate intake, and better fuel economy.
• Compact structure and easy maintainence
• Advanced design and great reliability
• Professional configuration and best quality
• Mature products with world reputation
Widely used: OSK38 series of Cummins engines are widely used in construction machinery, heavy vehicles, power generation, ship power and other fields; and form strategic partners with key customers
High reputation: QSK38 series Cummins engine has won a high recognition from customers in all areas because of its strong power, ultra low fuel consumption, high reliability and low maintenance costs.
Technology upgrades: With air-air intercooler, slow start and other technologies, further improved the engine’s reliability, power, fuel economy and emissions and other indicators. The application of electric fuel injection technology of QSK38 engines which meet the third phase of non-road mobile machinery emission standards, and will further enhanced the high-powered engine manufacturing industry’s leading position of CCEC in China.

Technical Specification
Engine Model	Cummins engine KT38-P780 / KT38-P830 Cummins engine KTA38-P980 / KTA38-P1080 Cummins engine KTA38-P1200 / KTA38-P1300 Cummins engine KTA38-P1400 / KTA38-P1490	Fuel Consumption at Rated Speed	59gal/hr / 224 l/hr
Rating Type	Continuous	Approximate Fuel Flow to Pump	105gal/hr / 397 l/hr
Rated Engine Power	780HP-1490HP	Intake Manifold Pressure	54in. Hg / 183kPa
Rated Engine Speed	1500rpm/1800rpm/2100rpm	Intake Air Flow	2599 cfm / 1227 l/sce
Peak Engine Torque@ 1500 rpm	3842 lb. H ft. / 5210 NHm	Heat Rejection to Ambient	4440 BTU/min / 78 kW
Cylinders	12	Size-Engine Only	260015002000mm
Aspiration	Turbocharged & Aftercooled	Weight (Dry) - Engine Only	4300kg
Compression Ratio	13.9:1	Minimum Idle Speed Setting	625-675rpm
Piston Speed	1870 ft/min / 9.5 m/sec	Normal Idle Speed Variation	±25rpm
Displacement	38L	High Idle Speed Range Minimum	1815rpm
Bore*Stroke	159*159mm	High Idle Speed Range Maximum	2016rpm
Fuel System	PT pump	Standard Thermostat Operating Range (Start to Open - Full Open)	82°C-95°C
Optional Configuration	1. Air compressor is optional. 2. According to the Cooling Type( Water-cooled, Air-cooled.) Fan, Radiator / Heat Exchanger, Expansion Tank, Sea Water Pump, Control System, Remote Control System.

Cummins construction engine K38 C1 Jpg

About Us

TC Diesel Engine is an authorized dealer of Cummins and has been in the engine industry for more than 15 years. Our main products include N14/NT855/KTA19/KTA38/KTA50/QSK19/QSK38/QSN/M11/ISM/4BT/6BT/6CT/ISX etc. Applications aremarine engines, mining engines, truck engines, pump engines, drilling engines and generator sets. We also have a large stock of genuine engine parts.

Advantages:

* Excellent senior technical team trained by Cummins factory.

* Professional service.

* Recommends the best configuration according to customers' application conditions.

* Huge inventory of genuine parts.
