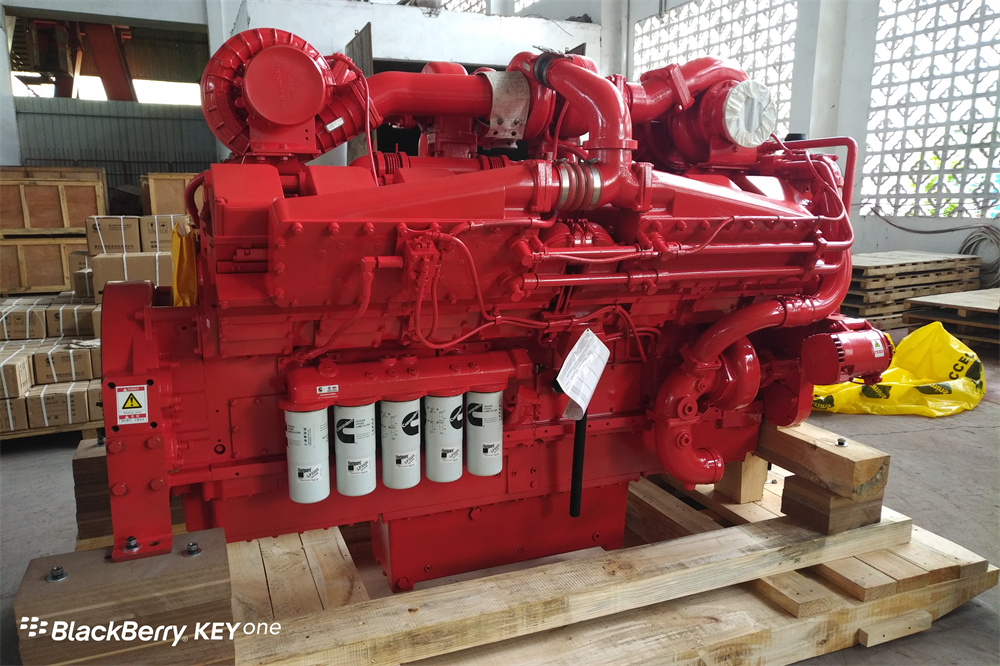

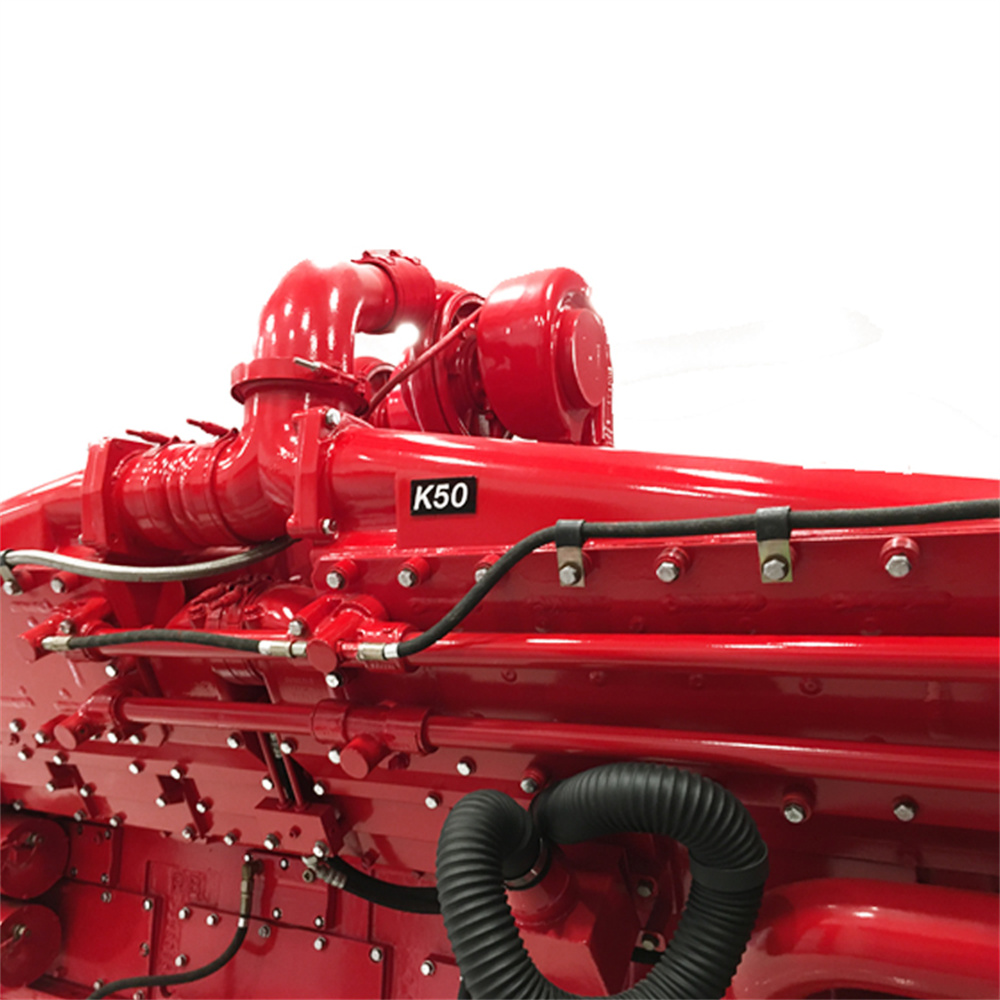

Cummins KTA50-C1600 mining truck diesel engine

Cummins KTA50-C1600 mining truck diesel engine

Get Latest Price

Min. Order:: 1 Unit

Min. Order:: 1 Unit

Transportation:: Ocean, Land, Air, Express

Port:: Chongqing, Shanghai, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Chongqing.China
Productivity:	10000
Supply Ability:	15000 Unit/Units per Year
Payment Type:	L/C,D/P,D/A,T/T,MoneyGram
Incoterm:	FOB,CFR,CIF,EXW,DDP,DDU,FCA
Certificate:	ISO9001
HS Code:	8408909390
Transportation:	Ocean,Land,Air,Express
Port:	Chongqing,Shanghai,Shenzhen

Product Description

Products Description

Feature of KTA50-C1600 Cummins construction engine :
Low Fuel Consumption and Good Economy: PT fuel system, high pressure fuel injection, ensure good atomization and full combustion.
Best Power Performance, Low Fuel Consumption: Optimized design for power-train, air distribution system, combustion system, cooling system, lubrication system.
The high quality Holset turbocharger: It upgrades the responsiveness of engines at the high altitude.

More Steady, More Quiet: Designed with V cylinder arrangement, enhanced crankshaft assembly and power-train, full balanced and integral crankshaft.

Since the joint venture in 1995, K50 series of Cummins engine are widely used in tractors, cement mixer, mining vehicles, engineering machinery, power generation, ship power and other fields and form strategic partners with key customers
High reputation: K50 series Cummins engine has won a high recognition from customers in all areas because of its strong power, ultra low fuel consumption, high reliability and low maintenance costs.
Technology upgrades: With air-air intercooler, slow start and other technologies, further improved the engine’s reliability, power, fuel economy and emissions and other indicators. The electronic fuel system further enhanced the high-powered engine manufacturing industry’s leading position in China.

Technical Specification
Engine Model	KTA50-C1600 KTTA50-C2000 K1800E/K2000E	Fuel Consumption at Rated Speed	80.2gal/hr / 303.6 l/hr
Rating Type	Continuous	Approximate Fuel Flow to Pump	141gal/hr / 533.7 l/hr
Rated Engine Power	2000hp / 1800hp/1600hp	Intake Manifold Pressure	54in. Hg / 183kPa
Rated Engine Speed	2100rpm	Intake Air Flow	2599 cfm / 1227 l/sce
Peak Engine Torque@ 1500 rpm	4859 lb. H ft. / 6588 NHm	Heat Rejection to Ambient	4464 BTU/min / 78 kW
Cylinders	16	Size-Engine Only	350018002200mm
Aspiration	Turbocharged/Aftercooler	Weight (Dry) - Engine Only	5200kg
Compression Ratio	13.9:1	Minimum Idle Speed Setting	650rpm
Piston Speed	1876 ft/min / 9.5 m/sec	Normal Idle Speed Variation	±25rpm
Displacement	50L	High Idle Speed Range Minimum	1860rpm
Bore*Stroke	159*159mm	High Idle Speed Range Maximum	1972rpm
Fuel System	Mechanical speed governors	Standard Thermostat Operating Range (Start to Open - Full Open)	82°C-95°C
Optional Configuration	1.Air compressor is optional. 2.According to the Cooling Type( Water-cooled, Air-cooled.) Fan, Radiator / Heat Exchanger, Expansion Tank, Sea Water Pump, Control System, Remote Control System.

About Us

TC Diesel Engine is an authorized dealer of Cummins and has been in the engine industry for more than 15 years. Our main products include N14/NT855/KTA19/KTA38/KTA50/QSK19/QSK38/QSN/M11/ISM/4BT/6BT/6CT/ISX etc. Applications aremarine engines, mining engines, truck engines, pump engines, drilling engines and generator sets. We also have a large stock of genuine engine parts.

Advantages:

* Excellent senior technical team trained by Cummins factory.

* Professional service.

* Recommends the best configuration according to customers' application conditions.

* Huge inventory of genuine parts
