Cummins Engine for Petroleum Drilling Machine NTA855-C360

Cummins Engine for Petroleum Drilling Machine NTA855-C360

Get Latest Price

Min. Order:: 1 Unit

Min. Order:: 1 Unit

Transportation:: Ocean, Land, Air, Express

Port:: Chongqing, Shanghai, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Chongqing.China
Productivity:	10000
Supply Ability:	15000 Unit/Units per Year
Payment Type:	L/C,D/P,D/A,T/T,MoneyGram
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	ISO9001
HS Code:	8511509000
Transportation:	Ocean,Land,Air,Express
Port:	Chongqing,Shanghai,Shenzhen

Product Description

Features of NTA855-C360 Cummins Oil Field Engine :

This is a double turbocharged classic engine, low fuel consumption and good economy: PT fuel system, high pressure fuel injection, ensure good automization and full combustion.

NTA855-C360 Cummins engine advantages: more steady, more quiet, designed with V cylinder arrangement, enhanced crankshaft assembly and power-train, full balanced and integral crankshaft.

Since the joint venture in 1995, NTA855 series of Cummins engine are widely used in tractors, cement mixer, mining vehicles, engineering machinery, power generation, ship power and other fields and form strategic partners with key customers
High reputation: NTA855 series Cummins engine has won a high recognition from customers in all areas because of its strong power, ultra low fuel consumption, high reliability and low maintenance costs.

Technology upgrades: With air-air intercooler, slow start and other technologies, further improved the engine’s reliability, power, fuel economy and emissions and other indicators. The electronic fuel system further enhanced the high-powered engine manufacturing industry’s leading position in China.

Technical Specification
Engine Model	NTA855-C360 S10	Fuel Consumption at Rated Speed	19gal/hr / 72 l/hr
Rating Type	Continuous	Approximate Fuel Flow to Pump	57gal/hr / 216 l/hr
Rated Engine Power	360HP	Intake Manifold Pressure	57in. Hg / 194kPa
Rated Engine Speed	1500rpm/1800rpm/2100rpm	Intake Air Flow	3597 cfm / 1698 l/sce
Peak Engine Torque@ 1500 rpm	1021 lb. H ft. / 1385 NHm	Heat Rejection to Ambient	4464 BTU/min / 78 kW
Cylinders	6	Size-Engine Only	190011501900mm
Aspiration	Turbocharged & Aftercooled	Weight (Dry) - Engine Only	1400kg
Compression Ratio	14.0:1	Minimum Idle Speed Setting	575-650rpm
Piston Speed	1791 ft/min / 9.1 m/sec	Normal Idle Speed Variation	±25rpm
Displacement	14L	High Idle Speed Range Minimum	1962rpm
Bore*Stroke	140*152mm	High Idle Speed Range Maximum	2106rpm
Fuel System	PT pump	Standard Thermostat Operating Range (Start to Open - Full Open)	82°C-94°C
Optional Configuration	1. Air compressor is optional. 2. According to the Cooling Type( Water-cooled, Air-cooled.) Fan, Radiator / Heat Exchanger, Expansion Tank, Sea Water Pump, Control System, Remote Control System.

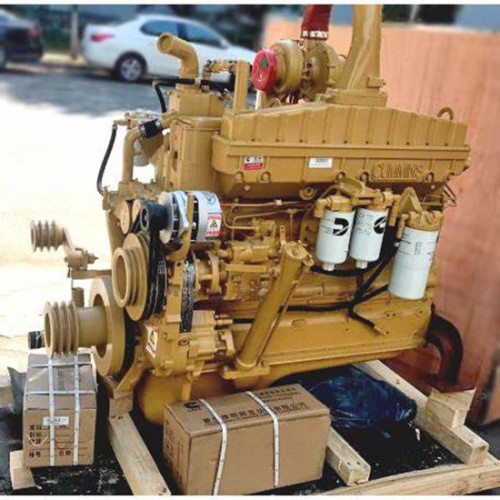

Cummins oil field engine Nta855 C360 B Jpg

About Us

TC Diesel Engine is an authorized dealer of Cummins and has been in the engine industry for more than 15 years. Our main products include N14/NT855/KTA19/KTA38/KTA50/QSK19/QSK38/QSN/M11/ISM/4BT/6BT/6CT/ISX etc. Applications aremarine engines, mining engines, truck engines, pump engines, drilling engines and generator sets. We also have a large stock of genuine engine parts.

Advantages:

* Excellent senior technical team trained by Cummins factory.
* Professional service.
* Recommends the best configuration according to customers' application conditions.
* Huge inventory of genuine parts.
