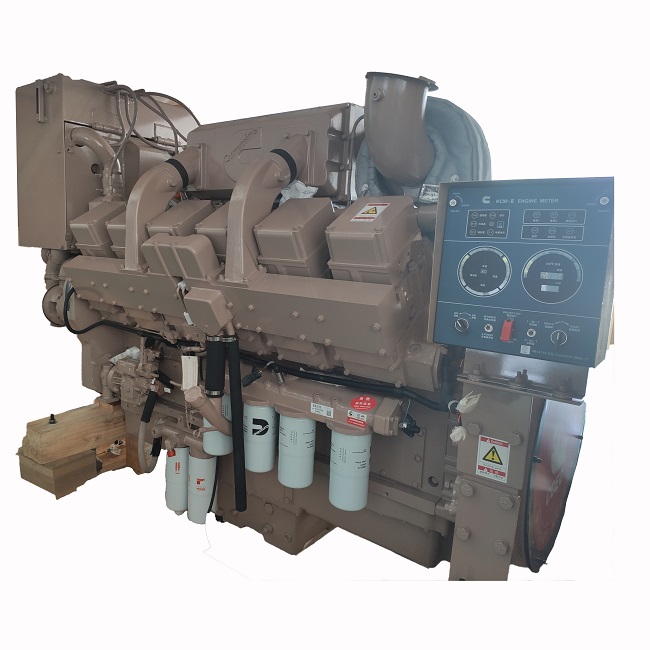

Cummins KTA38-C1400 Oil Field Diesel Engine Power Assembly

Cummins KTA38-C1400 Oil Field Diesel Engine Power Assembly

Get Latest Price

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean, Land, Air, Express

Port:: Chongqing, Shanghai, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China.Chongqing
Productivity:	10000
Supply Ability:	10000 Set/Sets per Year
Payment Type:	Western Union,L/C,D/P,D/A,T/T,MoneyGram,online bank payment
Incoterm:	FOB,CFR,EXW,CIF
Certificate:	ISO9001
HS Code:	8408909390
Transportation:	Ocean,Land,Air,Express
Port:	Chongqing,Shanghai,Shenzhen

Product Description

Engine Model: KTA38-C1400 1400HP
Product Category ：Cummins Engine
Application Type ：Cummins truck engine, Cummins pump engine

Cummins KTA38-C1400 Truck Engine is applied to Construction Mining truck , coupling with fan clutch and cooling system. Cummins KTA38-C1400 Truck Engine has very reliable performance.

Cummins KTA38-C1400 mining truck engine unit adopts the world famous brand Cummins diesel engine, equipped with advanced control system and cooling system. The products are widely used in movable and stationed water pump station, fire pump, mud pump,sand pumping ships and mining truck etc. Characterized by the robust power, fuel economy, reliability, durability and safety, Cummins engines are highly praised by customers all over the world.

Engine Model	KTA38-C1400
Rating Type	Continuous
Rated Engine Power	1400HP
Rated Engine Speed	1900rpm
Peak Engine Torque@ 1500 rpm	3842 lb. H ft. / 5210 NHm
Cylinders	12
Aspiration	Turbocharged/Aftercooler
Compression Ratio	13.9:1
Piston Speed	1870 ft/min / 9.5 m/sec
Displacement	38L
Bore*Stroke	159*159mm
Fuel System	Mechanical speed governors
Fuel Consumption at Rated Speed	59gal/hr / 224 l/hr
Approximate Fuel Flow to Pump	105gal/hr / 397 l/hr
Intake Manifold Pressure	54in. Hg / 183kPa
Intake Air Flow	2599 cfm / 1227 l/sce
Heat Rejection to Ambient	4440 BTU/min / 78 kW
Size-Engine Only	260015002000mm
Weight (Dry) - Engine Only	4300kg
Minimum Idle Speed Setting	625-675rpm
Normal Idle Speed Variation	±25rpm
High Idle Speed Range Minimum	1815rpm
High Idle Speed Range Maximum	2016rpm
Standard Thermostat Operating Range (Start to Open - Full Open)	82°C-95°C
Optional Configuration	1.Air compressor is optional. 2.According to the Cooling Type( Water-cooled, Air-cooled.) Fan, Radiator / Heat Exchanger, Expansion Tank, Sea Water Pump, Control System, Remote Control System.

Remarks:

(1) If you need KTA38-C1400 engine power pack with Radiator, Air Filter, Muffler, Engine Monitor, Engine Chassis, please further contact our sales.
(2) We can provide the KTA38-C1400 complete engine, as well as the KTA38-C1400 genuine Cummins engine spare parts.
(3) Cummins KTA38 Series Construction Engine Model: KTA38-C900,KTA38-C1000, KTA38-C1200, KTA38-C1300.

Cummins construction engine Kta38 C1400 Jpg

About Us

TC Diesel Engine is an authorized dealer of Cummins and has been in the engine industry for more than 15 years. Our main products include N14/NT855/KTA19/KTA38/KTA50/QSK19/QSK38/QSN/M11/ISM/4BT/6BT/6CT/ISX etc. Applications are marine engines, mining engines, truck engines, pump engines, drilling engines and generator sets. We also have a large stock of genuine engine parts.
Advantages
* Excellent senior technical team trained by Cummins factory.
* Professional service.
* Recommends the best configuration according to customers' application conditions.
* Huge inventory of genuine parts.
