Cummins Engine KTA19-P750 for Agricultural pump

Cummins Engine KTA19-P750 for Agricultural pump

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Certificate:	ISO9001:14001

Product Description

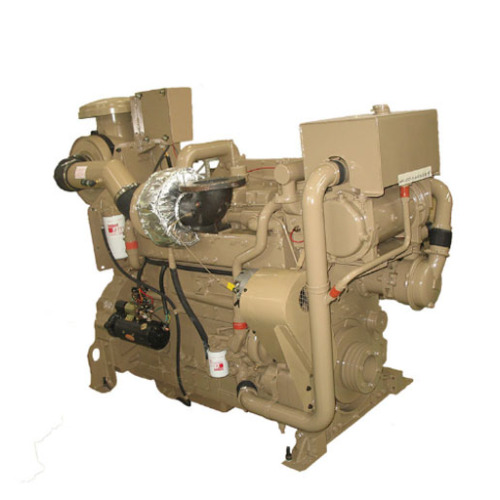

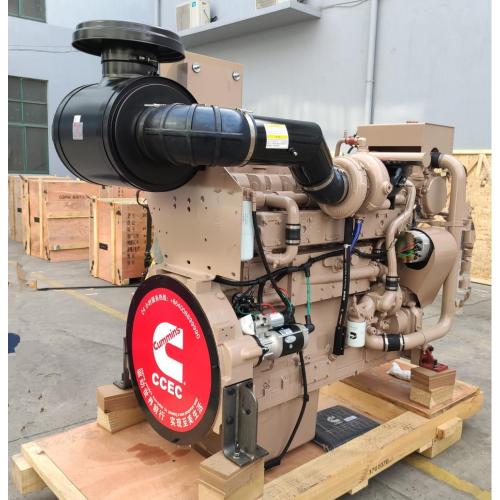

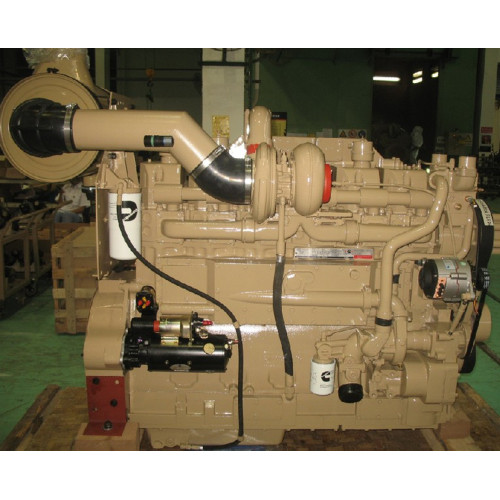

Product Name: Cummins Pump Engine

Engine Model: KTA19-P500

K19 Data K19 Drawings

Technical Specification
Engine Model	KTA19-P500	Fuel Consumption	24gal/hr
Rating Type	Continuous	Fuel Flow	71gal/hr
Rated Power	500hp / 373kW	Manifold Pressure	122kPa
Rated Speed	1500/1800/2100rpm	Intake Air Flow	1101 cfm
Peak Torque	2052 NHm	Heat Rejection	2618 BTU/min/46kW
Cylinders	6	Size-Engine Only	200015001900mm
Aspiration	Turbocharged	Weight (Dry)	1725kg
Compression Ratio	15.5:1	Idle Speed Setting	650-700rpm
Piston Speed	1870 ft/min	Idle Speed Variation	±25rpm
Displacement	19L	High Idle Speed Min	1962rpm
*BoreStroke**	159*159mm	High Idle Range Max	2106rpm
Fuel System	PT pump	Thermostat Operating	82°C-94°C
Optional Configuration	According to the type of cooling( Water-cooled, Air-cooled.) Configuration: Radiator,Fan / Heat Exchanger(Keel cooling), Expansion tank, Sea water pump, Control system, Remote control system.

Cummins Features and Benefits

■ Cylinder Block

High quality alloy cast iron for the rigidity performance and lower vibration and noise. Wet and replaceable cylinder liners for better heat rejection performance and easier replacement.

■ Head and Valve

4 valves per cylinder, Optimize the mixed level which lead to an excellent fuel consumption rate and emission performance. High quality alloy cast iron, one cylinder on head, single camshaft and special designed outline for better reliability and durability.

■ Fuel System

Cummins unique PT with fixture and Step Timing control for precise fuel injection make the fuel injection pressure above 120Mpa, which leads to an excellent fuel consumption rate and emission performance. Check valve in fuel tube improve reliability.

■ Cooling System

Great water pump and great flux channel design provide effective cooling. Spin-in water filter makes the coolant clean and keeps it in normal acidity.

■ Exhaust System(After-cooled)

Advanced Holset turbocharger and water-air after cooler technology, pulse exhaust manifold reduce exhaust temperature, provide excellence fuel consumption and emission performance.
