Cummins Pump Engine Used For Pump Agricultural

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Certificate:	ISO9001
Port:	Chongqing,Shanghai,Guangzhou

Product Description

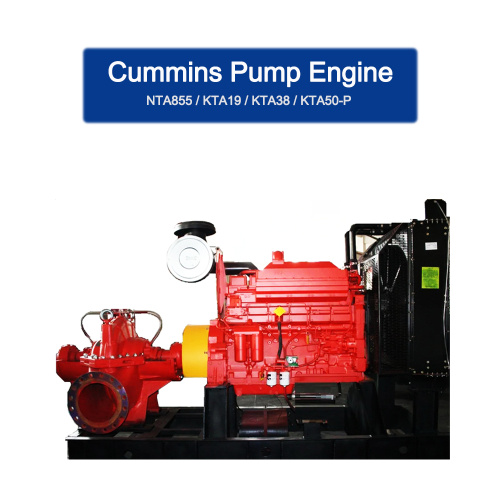

Cummins Agricultural Machinery Pump Engine

Cummins Pump Engine NTA855

Cummins Pump Engine KTA19

Cummins Pump Engine KTA38

Cummins Pump Engine KTA50

Technical Specification
Engine Model	NTA855/KTA19/KTA38/KTA50-P	Fuel Consumption	24gal/hr
Rating Type	Continuous	Fuel Flow	71gal/hr
Rated Power	300-2220HP	Manifold Pressure	122kPa
Rated Speed	1500/1800/2100rpm	Intake Air Flow	1101 cfm
Peak Torque	2052 NHm	Heat Rejection	2618 BTU/min/46kW
Cylinders	6-16	Size-Engine Only	200015001900mm
Aspiration	Turbocharged	Weight (Dry)	1725kg
Compression Ratio	15.5:1	Idle Speed Setting	650-700rpm
Piston Speed	1870 ft/min	Idle Speed Variation	±25rpm
Displacement	14/19/38/50L	High Idle Speed Min	1962rpm
*BoreStroke**	159*159mm	High Idle Range Max	2106rpm
Fuel System	PT pump	Thermostat Operating	82°C-94°C
Optional Configuration	According to the type of cooling( Water-cooled, Air-cooled.) Configuration: Radiator,Fan / Heat Exchanger(Keel cooling), Expansion tank, Sea water pump, Control system, Remote control system.
