Engine Model: KTA38-M1200

Product Category：Cummins Engine
Application Type：Cummins Marine engine

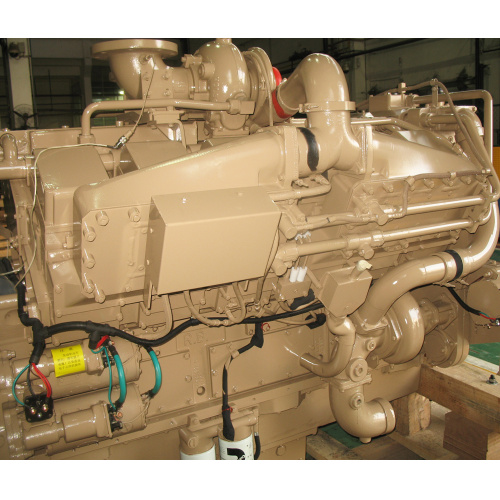

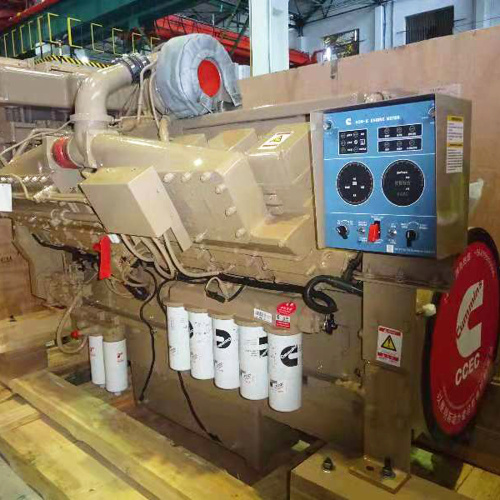

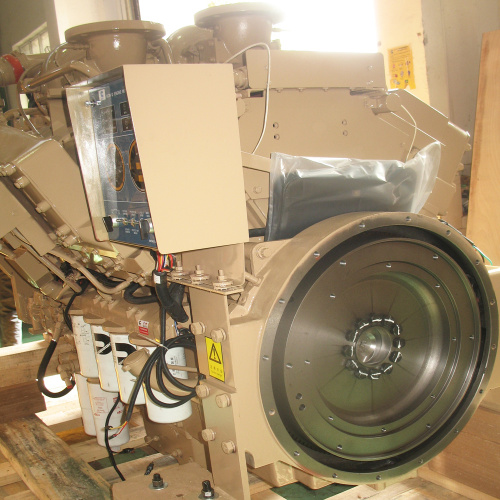

Cummins 1200hp KTA38-M1200 is produced by Chongqing Cummins Engine Co.,Ltd (CCEC). CCEC is the first joint venture plant in internal combustion industry of China and also the biggest heavy duty and high horse-power engine(maximum displacement from 11L-50L) producer and seller.

Cummins marine engines meet both IMO requirements and Tier 2 emission standards. These products are widely used in major propelling power of various kinds of ships and marine generators. Characterized by the robust power, fuel economy, reliability, durability and safety,these products are highly praised by customers all over the world.

KTA38-M2 Marine Engine Technical Specification
Engine Model	KTA38-M2
Rating Type	Continuous
Rated Engine Power	1200hp / 895kW
Rated Engine Speed	1500rpm/1800rpm/2100rpm
Peak Engine Torque@ 1500 rpm	3842 lb. H ft. / 5210 NHm
Cylinders	12
Aspiration	Turbocharged & Aftercooled
Compression Ratio	13.9:1
Piston Speed	1870 ft/min / 9.5 m/sec
Displacement	38L
Bore*Stroke	159*159mm
Fuel System	PT pump
Fuel Consumption at Rated Speed	59gal/hr / 224 l/hr
Approximate Fuel Flow to Pump	105gal/hr / 397 l/hr
Intake Manifold Pressure	54in. Hg / 183kPa
Intake Air Flow	2599 cfm / 1227 l/sce
Heat Rejection to Ambient	4440 BTU/min / 78 kW
Size-Engine Only	260015002000mm
Weight (Dry) - Engine Only	4300kg
Minimum Idle Speed Setting	625-675rpm
Normal Idle Speed Variation	±25rpm
High Idle Speed Range Minimum	1815rpm
High Idle Speed Range Maximum	2016rpm
Standard Thermostat Operating Range (Start to Open - Full Open)	82°C-95°C
Engine Model	KTA38-M
Rating Type	Continuous
Optional Configuration	According to the Cooling Type( Keel Cooling, Circulating Cooling,etc.) Heat Exchanger, Expansion Tank, Sea Water Pump, Control System, Remote Control System.

KTA38-M1200e
