Cummins 1600 hp KTA50-M2 Marine Engine For Sale

Cummins 1600 hp KTA50-M2 Marine Engine For Sale

Get Latest Price

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean, Land, Air, Express

Port:: Shanghai, Shenzhen, Ningbo

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Chongqing.China
Productivity:	10000
Supply Ability:	10000
Payment Type:	L/C,T/T,D/P,D/A,Paypal,Western Union
Incoterm:	FOB,CFR,CIF,FCA,DDP,DDU,Express Delivery
Certificate:	ISO9001-14001
HS Code:	8511509000
Transportation:	Ocean,Land,Air,Express
Port:	Shanghai,Shenzhen,Ningbo

Product Description

Engine Power: 1600HP

Engine Model: KTA50-M2

Product Category：Cummins Engine
Application Type：Cummins Marine engine

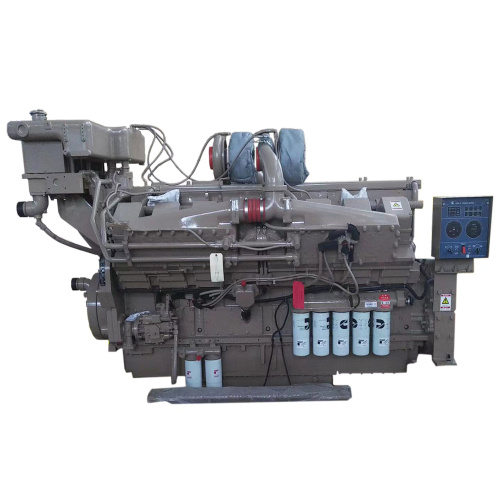

Cummins 1600hp KTA50-M2 is produced by Chongqing Cummins Engine Co.,Ltd (CCEC). CCEC is the first joint venture plant in internal combustion industry of China and also the biggest heavy duty and high horse-power engine(maximum displacement from 11L-50L) producer and seller.

Cummins marine engines meet both IMO requirements and Tier 2 emission standards. These products are widely used in major propelling power of various kinds of ships and marine generators. Characterized by the robust power, fuel economy, reliability, durability and safety,these products are highly praised by customers all over the world.

KTA50-M2 Marine Engine Technical Specification
Engine Model	KTA50-M2
Rating Type	Continuous
Rated Engine Power	1600hp / 1193kW
Rated Engine Speed	1800rpm
Peak Engine Torque@ 1500 rpm	4859 lb. H ft. / 6588 NHm
Cylinders	16
Aspiration	Turbocharged & Aftercooled
Compression Ratio	13.9:1
Piston Speed	1876 ft/min / 9.5 m/sec
Displacement	50L
Bore*Stroke	159*159mm
Fuel System	PT pump
Fuel Consumption at Rated Speed	80.2gal/hr / 303.6 l/hr
Approximate Fuel Flow to Pump	141gal/hr / 533.7 l/hr
Intake Manifold Pressure	54in. Hg / 183kPa
Intake Air Flow	2599 cfm / 1227 l/sce
Heat Rejection to Ambient	4464 BTU/min / 78 kW
Size-Engine Only	350018002200mm
Weight (Dry) - Engine Only	5200kg
Minimum Idle Speed Setting	650rpm
Normal Idle Speed Variation	±25rpm
High Idle Speed Range Minimum	1860rpm
High Idle Speed Range Maximum	1972rpm
Standard Thermostat Operating Range (Start to Open - Full Open)	82°C-94°C
Optional Configuration	According to the Cooling Type( Keel Cooling, Circulating Cooling,etc.) Heat Exchanger, Expansion Tank, Sea Water Pump, Control System, Remote Control System.
