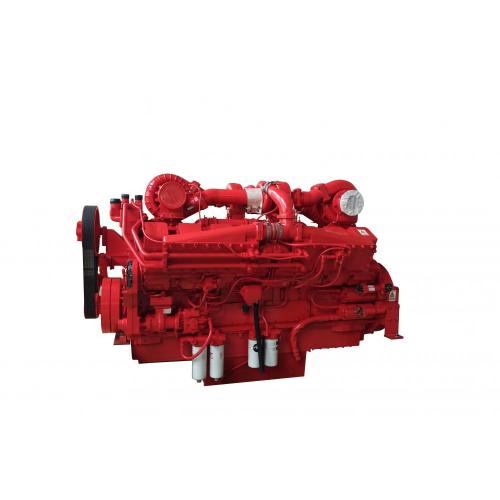

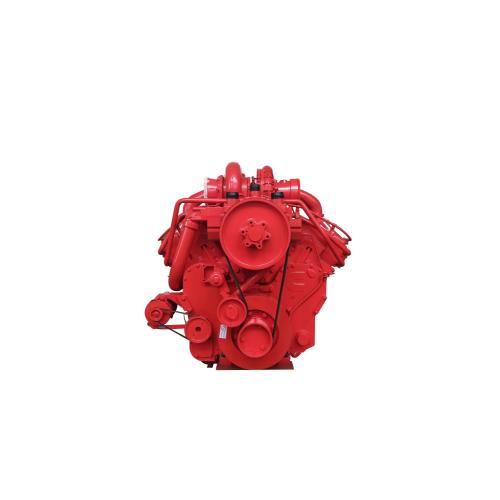

Cummins Engine KTA50-P2220 for Mining Machine

Cummins Engine KTA50-P2220 for Mining Machine

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Certificate:	ISO9001:14001

Product Description

Product Name: Cummins Pump Engine

Engine Model:KTA50-P2220

K50 Data

K50 Drawings

Technical Specification
Engine Model	KTA50-P	Fuel Consumption	80.2gal/hr
Rating Type	Continuous	Fuel Flow	141gal/hr
Rated Power	2220hp / 1384kW	Manifold Pressure	183kPa
Rated Speed	1500/1800/2100rpm	Intake Air Flow	2599 cfm
Peak Torque	6588 NHm	Heat Rejection	4464 BTU/min/78kW
Cylinders	16	Size-Engine Only	350018002200mm
Aspiration	Turbocharged	Weight (Dry)	5200kg
Compression Ratio	13.9:1	Idle Speed Setting	650rpm
Piston Speed	1876 ft/min	Idle Speed Variation	±25rpm
Displacement	50L	High Idle Speed Min	1860rpm
*BoreStroke**	159*159mm	High Idle Range Max	1972rpm
Fuel System	PT pump	Thermostat Operating	82°C-95°C
Optional Configuration	According to the type of cooling( Water-cooled, Air-cooled.) Configuration: Radiator,Fan / Heat Exchanger(Keel cooling), Expansion tank, Sea water pump, Control system, Remote control system.

Cummins Features and Benefits

■ Fuel System

K50 is one of the engines that could deliver the lowest life cycle cost with the longest life-to overhaul in global HHP engine family.

K50 is designed based on the excellent structure of K series engines. The design enhances the engine displacement and the efficiency. The power ranges from 1250 to 2000 hp. The turbocharger technology upgrades the engine performance. K50 adopts the reliable and well-proven PT^TM fuel technology or optional CENTRY^TM electronic system to meet your needs on reliability and fuel economy. The well-proven K50 engines are widely used in the movable and station equipment of mine, rig, marine, rail, harbor, construction and generation sets etc. Around the world.

■ Lubrication System

Great flux gear pump, lube oil filter and by-pass oil filter can separate impurity above 10um effectively. Keep lubrication system in good state and make the engine more reliability.

■ Cooling System

Great water pump and great flux channel design provide effective cooling. Spin-in water filter makes the coolant clean and keeps it in normal acidity.

■ Exhaust System

Advanced Holset turbocharger,pulse exhaust manifold reduce exhaust temperature,provide excellence fuel consumption and emission performance.

■ Electrical System

24V cranking motor and 35A Battery charging system. EFC governor system provide a perfect instantaneous response.
