Cummins 450hp 336kw Marine Eiesel Engine NTA855-M450

Cummins 450hp 336kw Marine Eiesel Engine NTA855-M450

Get Latest Price

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean, Land, Air, Express

Port:: Shanghai, Shenzhen, Chongqing

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China.Chongqing
Productivity:	10000
Supply Ability:	10000
Payment Type:	L/C,T/T,D/P,D/A,Paypal,Western Union
Incoterm:	FOB,CFR,CIF,FCA,DDP,DDU,Express Delivery
Certificate:	ISO14001
HS Code:	8409999100
Transportation:	Ocean,Land,Air,Express
Port:	Shanghai,Shenzhen,Chongqing

Product Description

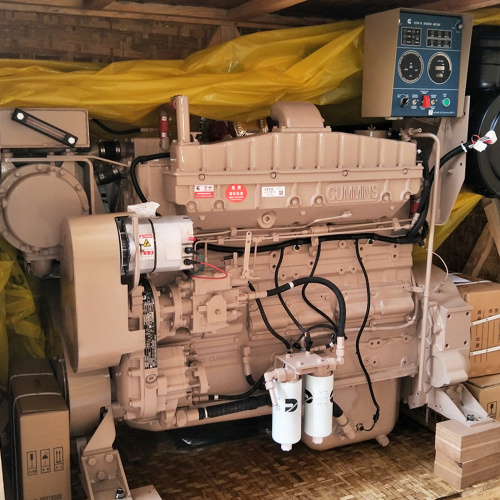

Engine Model: NTA855-M450

Product Category：Cummins Engine
Application Type：Cummins Marine engine

Cummins 450hp NTA855-M is produced by Chongqing Cummins Engine Co.,Ltd (CCEC). CCEC is the first joint venture plant in internal combustion industry of China and also the biggest heavy duty and high horse-power engine(maximum displacement from 11L-50L) producer and seller.

Cummins marine engines meet both IMO requirements and Tier 2 emission standards. These products are widely used in major propelling power of various kinds of ships and marine generators. Characterized by the robust power, fuel economy, reliability, durability and safety,these products are highly praised by customers all over the world.

NTA855-M450 Marine Engine Technical Specification
Engine Model	NTA855-M450
Rating Type	Continuous
Rated Engine Power	450hp / 336kW
Rated Engine Speed	1500rpm/1800rpm/2100rpm
Peak Engine Torque@ 1500 rpm	1021 lb. H ft. / 1385 NHm
Cylinders	6
Aspiration	Turbocharged & Aftercooled
Compression Ratio	14.0:1
Piston Speed	1791 ft/min / 9.1 m/sec
Displacement	14L
Bore*Stroke	140*152mm
Fuel System	PT pump
Fuel Consumption at Rated Speed	19gal/hr / 72 l/hr
Approximate Fuel Flow to Pump	57gal/hr / 216 l/hr
Intake Manifold Pressure	57in. Hg / 194kPa

Heat Rejection to Ambient	3597 cfm / 1698 l/sce
Size-Engine Only	190011501900mm
Weight (Dry) - Engine Only	4300kg
Minimum Idle Speed Setting	575-650rpm
Normal Idle Speed Variation	±25rpm
High Idle Speed Range Minimum	1962rpm
High Idle Speed Range Maximum	2106rpm
Standard Thermostat Operating Range (Start to Open - Full Open)	82°C-94°C
Optional Configuration	According to the Cooling Type( Keel Cooling, Circulating Cooling,etc.) Heat Exchanger, Expansion Tank, Sea Water Pump, Control System, Remote Control System.
