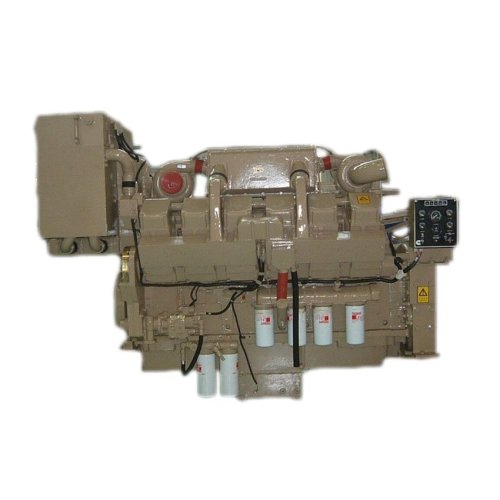

Cummins 4 Stroke 890hp 664kw Marine Generator KT38-DM2

Cummins 4 Stroke 890hp 664kw Marine Generator KT38-DM2

Get Latest Price

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean, Land, Air, Express

Port:: Shanghai, Shenzhen, Ningbo

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China.Chongqing
Productivity:	10000
Supply Ability:	10000
Payment Type:	L/C,T/T,D/P,D/A,Paypal,Western Union
Incoterm:	FOB,CFR,CIF,FCA,DDP,DDU,Express Delivery
Certificate:	ISO9001
HS Code:	8511509000
Transportation:	Ocean,Land,Air,Express
Port:	Shanghai,Shenzhen,Ningbo

Product Description

Engine Power: 1350HP

Engine Model: KT38-D(M)2

Product Category：Cummins Engine
Application Type：Cummins Marine engine

K38 series Diesel Engine for marine

Rating Conditions: Ratings are based upon ISO 8665 reference conditions; air pressure of 100 kPa [29.612 in. Hg] air temperature 25°C [77°F] and 30% relative humidity. Power is rated in accordance with IMCI procedures. Fuel consumption is based on fuel of 35° API gravity at 16°C (60°F) having LHV of 42,780 kj/kg (18,390 Btu/lb) and weighing 838.9 g/liter (7.001 lb/U.S. gal).

Cummins marine engines meet both IMO requirements and Tier 2 emission standards. These products are widely used in major propelling power of various kinds of ships and marine generators. Characterized by the robust power, fuel economy, reliability, durability and safety,these products are highly praised by customers all over the world.

Cummins marine engine Specification
Engine Model	KTA38-（D）M
Power	890hp / 664kW
Speed	1500/1800/2100rpm
Bore*Stroke	159*159mm
Peak Torque	5210 NHm
Cylinders	12
Aspiration	Turbocharged
Compression Ratio	13.9:1
Piston Speed	1870 ft/min
Displacement	38L
Fuel System	PT pump
Fuel Consumption	59gal/hr / 224 l/hr
Fuel Flow	105gal/hr / 397 l/hr
Pressure	54in. Hg / 183kPa
Air Flow	2599 cfm

About Us

TC Diesel Engine is an authorized dealer of Cummins and has been in the engine industry for more than 15 years. Our main products include N14/NT855/KTA19/KTA38/KTA50/QSK19/QSK38/QSN/M11/ISM/4BT/6BT/6CT/ISX etc. Applications aremarine engines, mining engines, truck engines, pump engines, drilling engines and generator sets. We also have a large stock of genuine engine parts.

Advantages:

* Excellent senior technical team trained by Cummins factory.

* Professional service.

* Recommends the best configuration according to customers' application conditions.

* Huge inventory of genuine parts
