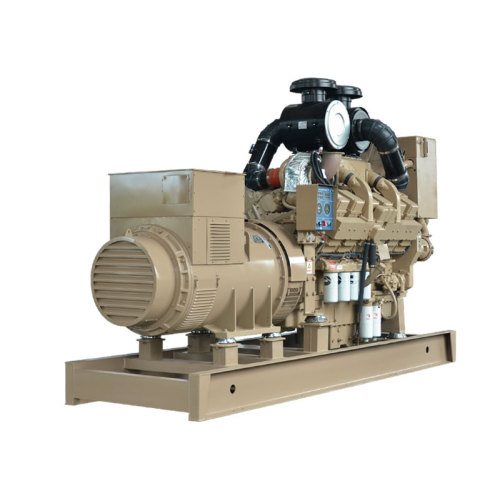

Cummins 1000hp marine generator for ship use K38-DM
  • Cummins 1000hp marine generator for ship use K38-DM
  • Cummins 1000hp marine generator for ship use K38-DM
  • Cummins 1000hp marine generator for ship use K38-DM
  • Cummins 1000hp marine generator for ship use K38-DM
Cummins 1000hp marine generator for ship use K38-DM
Cummins 1000hp marine generator for ship use K38-DM
Cummins 1000hp marine generator for ship use K38-DM
Cummins 1000hp marine generator for ship use K38-DM

Cummins 1000hp marine generator for ship use K38-DM

Min. Order:
1 Set/Sets
Min. Order:
1 Set/Sets
Transportation:
Ocean, Land, Air, Express
Port:
Shanghai, Shenzhen, Ningbo
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China.Chongqing
Productivity: 10000
Supply Ability: 10000
Payment Type: L/C,T/T,D/P,D/A,Paypal,Western Union
Incoterm: FOB,CFR,CIF,FCA,DDP,DDU,Express Delivery
Certificate: ISO9001
HS Code: 8511509000
Transportation: Ocean,Land,Air,Express
Port: Shanghai,Shenzhen,Ningbo
Product Description
Product Description

Engine Power: 1000HP

Engine Model:  Cummins Marine engine K38-DM

Product Category:Cummins Engine
Application Type:Cummins Marine engine

The Cummins engine has the highest thermal efficiency (engine efficiency) of any practical internal or external combustion engine due to its very high expansion ratio and inherent lean burn which enables heat dissipation by the excess air. A small efficiency loss is also avoided compared to two-stroke non-direct-injection gasoline engines since unburned fuel is not present at valve overlap and therefore no fuel goes directly from the intake/injection to the exhaust. Low-speed diesel engines (as used in ships and other applications where overall engine weight is relatively unimportant) can have a thermal efficiency that exceeds 50%.

Cummins marine engine Specification

Engine Model

KTA38-M

Power

1000hp / 746kW

Speed

1500/1800/2100rpm

Bore*Stroke

159*159mm

Peak Torque

5210 NHm

Cylinders

12

Aspiration

Turbocharged

Compression Ratio

13.9:1

Piston Speed

1870 ft/min

Displacement

38L

Fuel System

PT pump

Fuel Consumption

59gal/hr  / 224 l/hr

Fuel Flow

105gal/hr  / 397 l/hr

Pressure

54in. Hg  / 183kPa

Air Flow

2599 cfm


Cummins marine engine K38 Dm3

About Us

TC Diesel Engine is an authorized dealer of Cummins and has been in the engine industry for more than 15 years. Our main products include N14/NT855/KTA19/KTA38/KTA50/QSK19/QSK38/QSN/M11/ISM/4BT/6BT/6CT/ISX etc. Applications aremarine engines, mining engines, truck engines, pump engines, drilling engines and generator sets. We also have a large stock of genuine engine parts.

Advantages:

* Excellent senior technical team trained by Cummins factory.

* Professional service.

* Recommends the best configuration according to customers' application conditions.

* Huge inventory of genuine parts.
