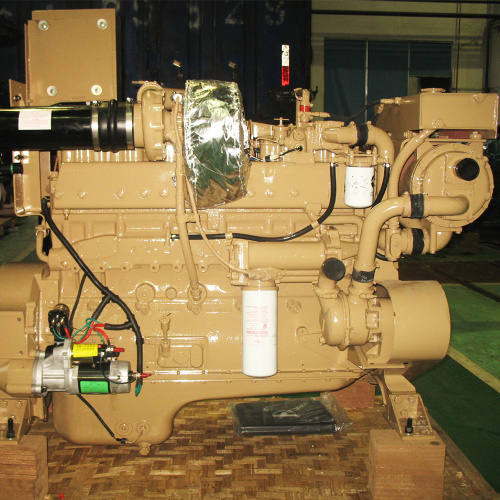

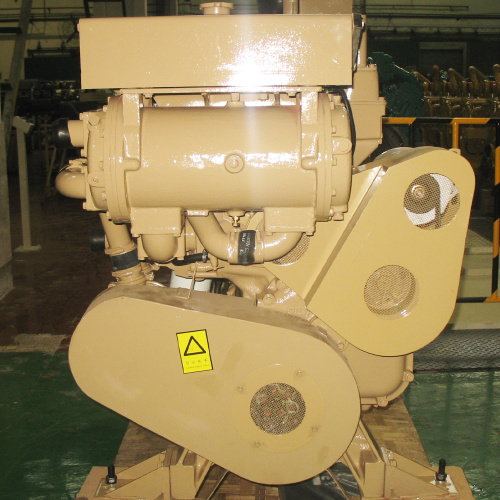

Marine Boat Inboard Engine K19 Series 425hp-600hp CCEC

Marine Boat Inboard Engine K19 Series 425hp-600hp CCEC

Get Latest Price

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean, Land, Air, Express

Port:: Shanghai, Shenzhen, Chongqing

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China.Chongqing
Productivity:	10000
Supply Ability:	10000
Payment Type:	L/C,T/T,D/P,D/A,Paypal,Western Union
Incoterm:	FOB,CFR,CIF,FCA,DDP,DDU,Express Delivery
Certificate:	ISO14001
HS Code:	8409999100
Transportation:	Ocean,Land,Air,Express
Port:	Shanghai,Shenzhen,Chongqing

Product Description

Engine Power: 425hp-600hp

Engine Model: KTA19-M

Product Category：Cummins Engine
Application Type：Cummins Marine engine

Cummins marine engine 425hp-600hp is produced by Chongqing Cummins Engine Co.,Ltd (CCEC). CCEC is the first joint venture plant in internal combustion industry of China and also the biggest heavy duty and high horse-power engine(maximum displacement from 11L-50L) producer and seller.

Cummins marine engines meet both IMO requirements and Tier 2 emission standards. These products are widely used in major propelling power of various kinds of ships and marine generators. Characterized by the robust power, fuel economy, reliability, durability and safety,these products are highly praised by customers all over the world.

KTA19-M Marine Engine Technical Specification
Engine Model	KTA19-M
Rating Type	Continuous
Rated Engine Power	425hp-600hp
Rated Engine Speed	1500rpm/1800rpm/2100rpm
Peak Engine Torque@ 1500 rpm	1513 lb. H ft. / 2052 NHm
Cylinders	6
Aspiration	Turbocharged & Aftercooled
Compression Ratio	15.5:1
Piston Speed	1870 ft/min / 9.5 m/sec
Displacement	19L
Bore*Stroke	159*159mm
Fuel System	PT pump
Fuel Consumption at Rated Speed	24gal/hr / 90 l/hr
Approximate Fuel Flow to Pump	71gal/hr / 270 l/hr
Intake Manifold Pressure	36in. Hg / 122kPa
Intake Air Flow	1101 cfm / 520 l/sce
Heat Rejection to Ambient	2618 BTU/min / 46 kW
Size-Engine Only	200015001900mm
Weight (Dry) - Engine Only	1725kg
Minimum Idle Speed Setting	650-700rpm
Normal Idle Speed Variation	±25rpm
High Idle Speed Range Minimum	1962rpm
High Idle Speed Range Maximum	2106rpm
Standard Thermostat Operating Range (Start to Open - Full Open)	82°C-94°C
Optional Configuration	According to the Cooling Type( Keel Cooling, Circulating Cooling,etc.) Heat Exchanger, Expansion Tank, Sea Water Pump, Control System, Remote Control System.
