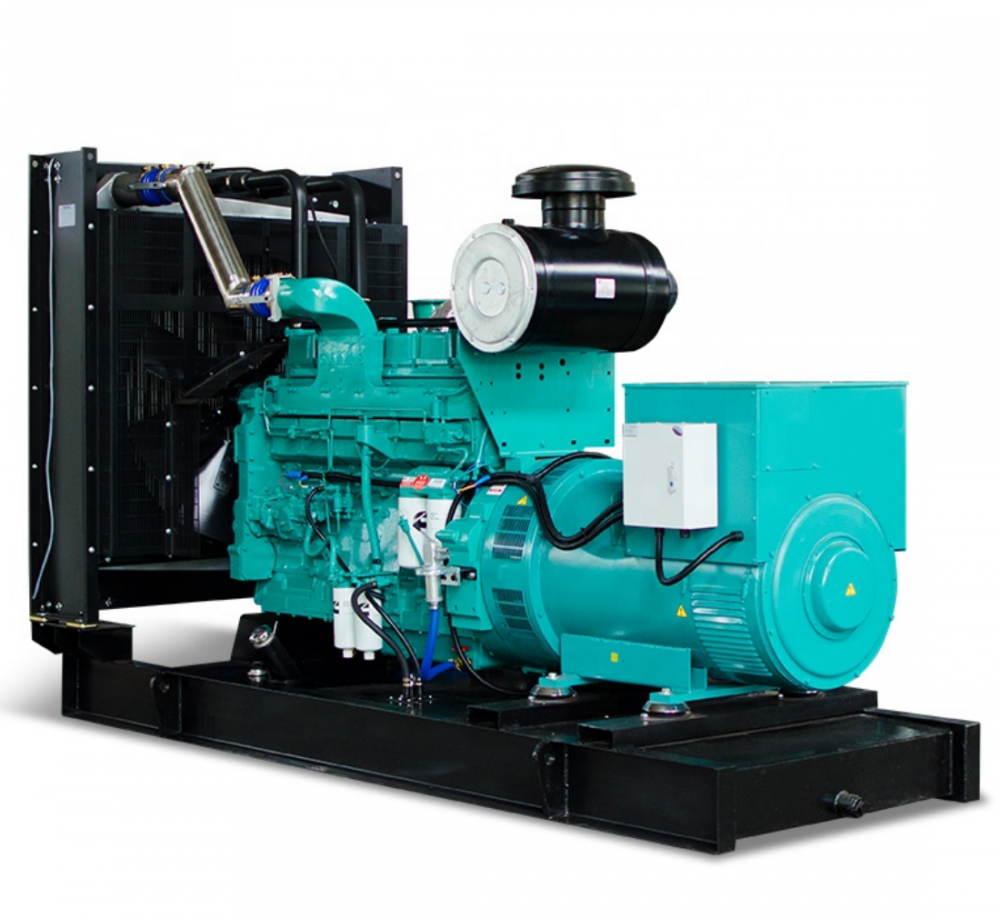

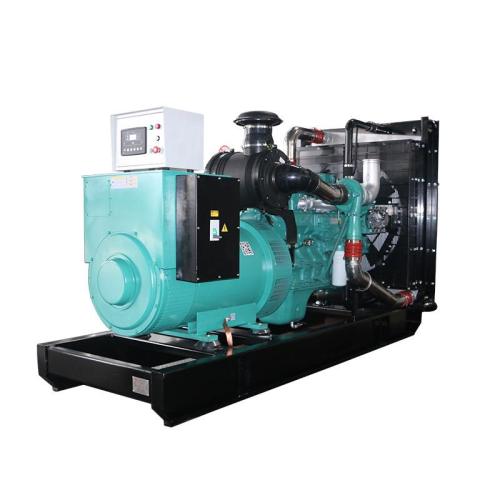

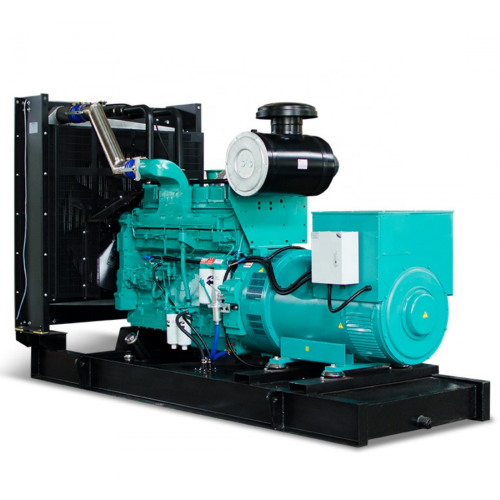

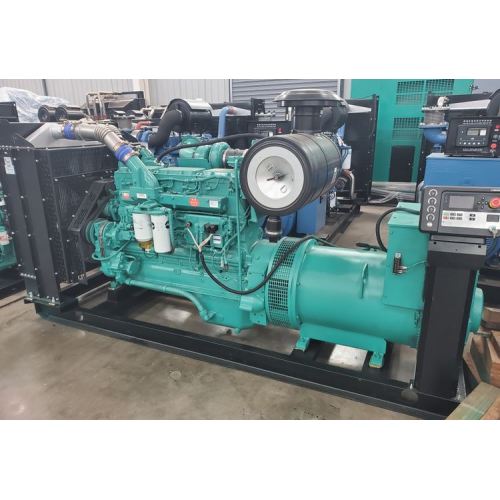

Cummins generator QSNT-G3 320KW with Stamford Alternator

Cummins generator QSNT-G3 320KW with Stamford Alternator

Get Latest Price

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean, Land, Air, Express

Port:: Shanghai, Shenzhen, Ningbo

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China.Chongqing
Productivity:	10000
Supply Ability:	10000
Payment Type:	L/C,T/T,D/P,D/A,Paypal,Western Union
Incoterm:	FOB,CFR,CIF,FCA,DDP,DDU,Express Delivery
Certificate:	ISO9001
HS Code:	8511509000
Transportation:	Ocean,Land,Air,Express
Port:	Shanghai,Shenzhen,Ningbo

Product Description

Part Name:Cummins Generator

Model number : QSNT-G3

Prime power

This rating is for the supply of continuous electrical power (at variable load). There is no limit on the annual hours of operation and 10% overload power can be supplied for 1 hour in 12.

Standby power

This rating is for the supply of continuous electrical power (at variable load) in the event of a utility power failure. No overload is permitted.

General features:

n Every generator set is subjected to a comprehensive test program which includes 50% load, 75% load,100% load, 110% load and the checking and proving of all control and safety shut-down functions;

n 24V DC start motor;

n Equipped 24V high performance maintenance-free lead-acid starting batteries and connecting with cables;

n Equipped with industrial silencer and flexible exhaust hose;

n Designed to Comply with ISO8528/GB2820;

n Powered by Cummins engine, Stamford alternator and SmartGen control panel.

Cummins engine technical data

Engine Model	QSNT-G3
Type	four strokes ,waste gas turbine boost,direct spurting type
Cooling way	water cooling
Witn type	L type
Bore×Stroke	140mm x152mm
Displacement	14L
Lubricating oil capacity	38.6L
Cylinder	6 cylinders
Rotating speed	1500rpm or 1800rpm
The regulation of rotating spped	electrical speed
Starting way	DC24V starting with electricity
Alternator brand	Stamford, Marathon, Leroy Somer, Mecc-alte, TWGII…
Prime power	320kw
Frequency/speed	50HZ/1500rpm (60Hz/1800rpm)
Exciter type	Single bearing, Brushless, Self-excited
Power factor	0.8
Voltage adjust range	≥5%
Voltage regulation NL-FL	≤±1%
Insulation Grade	H
Protection Grade	IP23

About Us

TC Diesel Engine is an authorized dealer of Cummins and has been in the engine industry for more than 15 years. Our main products include N14/NT855/KTA19/KTA38/KTA50/QSK19/QSK38/QSN/M11/ISM/4BT/6BT/6CT/ISX etc. Applications aremarine engines, mining engines, truck engines, pump engines, drilling engines and generator sets. We also have a large stock of genuine engine parts.

Advantages:

* Excellent senior technical team trained by Cummins factory.

* Professional service.

* Recommends the best configuration according to customers' application conditions.

* Huge inventory of genuine parts.
