Kta50-g3 for Cummins CCEC Engine 1000kw Generator

Kta50-g3 for Cummins CCEC Engine 1000kw Generator

$170000.00

1-29 Set/Sets
$165000.00

≥30 Set/Sets

Transportation:: Express, Ocean, Land, Air

Port:: Chongqing, Shanghai, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China Chongqing
Productivity:	10000
Supply Ability:	15000 Set/Sets per Year
Payment Type:	L/C,D/P,D/A,T/T,MoneyGram
Certificate:	ISO9001
HS Code:	8511509000
Transportation:	Express,Ocean,Land,Air
Port:	Chongqing,Shanghai,Shenzhen

Product Description

Cummins KTA50-G3 – Original from Chongqing Cummins Engine Plant (CCEC), Cummins Joint Venture Plant, 50% shareholding by Cummins USA, original genuine Cummins generator engine.

Our large wholesale of CCEC Cummins generator engine brings competitive agent price for Cummins KTA50-G3. Our diesel generator factory manufacture Cummins generator set with high quality & fast delivery.

Products Description

TINCON Diesel Generator Set 1000kW
Engine Date
Engine Model	KTA50-G3	Fuel Consumption at Rated Speed	80.2gal/hr / 303.6 l/hr
Rating Type	Continuous	Approximate Fuel Flow to Pump	141gal/hr / 533.7 l/hr
Rated Engine Power	1097kW/1227kva at 1500rpm	Intake Manifold Pressure	54in. Hg / 183kPa
Rated Engine Speed	1500rpm/1800rpm	Intake Air Flow	2599 cfm / 1227 l/sce
Peak Engine Torque@ 1500 rpm	4859 lb. H ft. / 6588 NHm	Heat Rejection to Ambient	4464 BTU/min / 78 kW
Cylinders	16	Size-Engine Only	350018002200mm
Aspiration	Turbocharged & Aftercooled	Weight (Dry) - Engine Only	5200kg
Compression Ratio	13.9:1	Minimum Idle Speed Setting	650rpm
Piston Speed	1876 ft/min / 9.5 m/sec	Normal Idle Speed Variation	±25rpm
Displacement	50L	High Idle Speed Range Minimum	1860rpm
*BoreStroke**	159*159mm	High Idle Speed Range Maximum	1972rpm
Fuel System	PT pump	Standard Thermostat Operating Range (Start to Open - Full Open)	82°C-95°C
Generator Date
Generator Model	TC1000GF
Engine Brand	All engine brands are available
Prime Power	897kw/1202kva at 1500rpm
Standby Power	1227kw/1533kva at 1500rpm
Current	1978A
Voltage	380V
Phase	three phase four wire
Power Factor	0.8(lag)
Alternator Date
Alternator Brand	Optional (Stamford / Marathon / LeroySomer/Siemens etc.)
Efficiency	95%
Exciting Type	Brushless, Self-Excited
Voltage Regulation Factor	±0.5%
Insulation Grade	H
Level of Protection	IP23
Control Panel
Protection	High water temperature, Low oil pressure, Low fuel, Low coolant, Overspeed, Owe speed, Fail to start, Stop delay etc.
Function	Emergency shut down, Automatic stop, Remote control
Support	RS232, RS485, USB

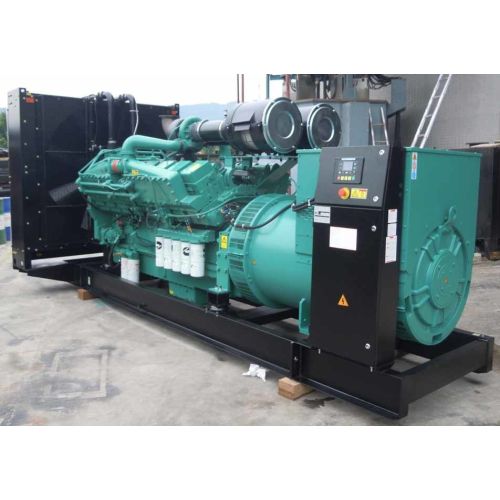

Cummins generator Kta50 G15c Jpg

About Us

TC Diesel Engine is an authorized dealer of Cummins and has been in the engine industry for more than 15 years. Our main products include N14/NT855/KTA19/KTA38/KTA50/QSK19/QSK38/QSN/M11/ISM/4BT/6BT/6CT/ISX etc. Applications aremarine engines, mining engines, truck engines, pump engines, drilling engines and generator sets. We also have a large stock of genuine engine parts.

Advantages:

* Excellent senior technical team trained by Cummins factory.

* Professional service.

* Recommends the best configuration according to customers' application conditions.

* Huge inventory of genuine parts.
