Factory price Cummins 900KW 1125kva KTA38-G4 Generator Set for sale

Factory price Cummins 900KW 1125kva KTA38-G4 Generator Set for sale

$6000.00 - $65000.00/Set/Sets

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Express, Ocean, Land, Air

Port:: Chongqing, Shanghai, Guangzhou, Other Ports

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	100 Set/Sets per Month
Payment Type:	L/C,D/P,D/A,T/T,MoneyGram
Transportation:	Express,Ocean,Land,Air
Port:	Chongqing,Shanghai,Guangzhou,Other Ports

Product Description

Products Description

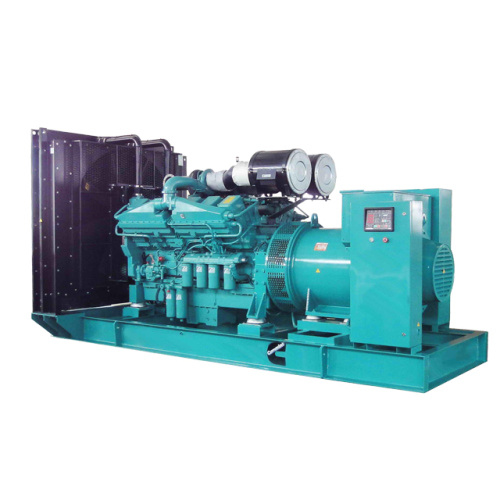

TINCON Diesel Generator Set 800-1000kW
Engine Date
Engine Model	KTA38-G4 KTA38-G5	Fuel Consumption at Rated Speed	59gal/hr / 224 l/hr
Rating Type	Continuous	Approximate Fuel Flow to Pump	105gal/hr / 397 l/hr
Rated Engine Power	880kW/970kW at 1500rpm	Intake Manifold Pressure	54in. Hg / 183kPa
Rated Engine Speed	1500rpm/1800rpm	Intake Air Flow	2599 cfm / 1227 l/sce
Peak Engine Torque@ 1500 rpm	3842 lb. H ft. / 5210 NHm	Heat Rejection to Ambient	4440 BTU/min / 78 kW
Cylinders	12	Size-Engine Only	260015002000mm
Aspiration	Turbocharged & Aftercooled	Weight (Dry) - Engine Only	4300kg
Compression Ratio	14.5:1	Minimum Idle Speed Setting	625-675rpm
Piston Speed	1870 ft/min / 9.5 m/sec	Normal Idle Speed Variation	±25rpm
Displacement	38L	High Idle Speed Range Minimum	1815rpm
Bore*Stroke	159*159mm	High Idle Speed Range Maximum	2016rpm
Fuel System	PT pump	Standard Thermostat Operating Range (Start to Open - Full Open)	82°C-95°C
Generator Date
Generator Model	TC1000GF
Engine Brand	All engine brands are available
Prime Power	800kw/1000kva at 1500rpm
Standby Power	880kw/1100kva at 1500rpm
Current	1443A
Voltage	380V
Phase	three phase four wire
Power Factor	0.8(lag)
Alternator Date
Alternator Brand	Optional (Stamford / Marathon / LeroySomer/Siemens etc.)
Efficiency	95%
Exciting Type	Brushless, Self-Excited
Voltage Regulation Factor	±0.5%
Insulation Grade	H
Level of Protection	IP23
Control Panel
Protection	High water temperature, Low oil pressure, Low fuel, Low coolant, Overspeed, Owe speed, Fail to start, Stop delay etc.
Function	Emergency shut down, Automatic stop, Remote control
Support	RS232, RS485, USB

Our Advantages

As we all know, the engine is a very professional field, only proficient in technology, can really solve the problems for customer. We are honored to share our advantages with you.

1. Manufacturer------OEM factory, next to Cummins CCEC.

2. Professional ------ More than 15 years of rich experience.

3. Large Project------China Steel, Scientific Research Ship, Sudan Water Project,

Baotou Mining, Kaiquan Water Pump,ect.

4. Presale Service------Application design and technology support.

5. Customer Training------Provide use, maintenance and professional knowledge

training.

We supply all products of Cummins
Marine engine	Industrial engine	Pump engine
4BT/6BT/6CT	NT855-C280	NT855-P270
NTA855-M300	NTA855-C310/C360	NT855-P300
NTA855-M350	NTA855-C400/C450	NTA855-P360
NTA855-M400	QSN-C360/C400	NTA855-P400
NTA855-M450	QSN-C450/C500	NTA855-P450
NTA855-M500	KTA19-C525 / QSK19-C525	KTA19-P495
NTA855-M/DM	KTA19-C600	KTA19-P500
KTA19-M	QSK19-C600	KTA19-P600/P680
KTA19-M3	KTA19-C700	KTA19-P700 /P715
KTA19-M4	QSK19-C700/C760	KTA19-P750 / P755
KTA38-M	KTTA19-C700	KTA38-P830
KTA39-DM	KTA38-C900/C100	KTA38-P980/ P1080
KTA38-M1	KTA38-C1050	KTA38-P1200
KTA38-M2	KTA38-C1200	KTA38-P1400
KTA50-DM	KTA38-C1300/C1400	KTA50-P1645
KTA50-M	KTA50-C1600/K1800E	KTA50-P1915
KTA50-M2	KTTA50-C2000/K2000E	KTA50-P2220

Cummins Full Range of Products Supply
Generator set engines	Generator set engines	Spare parts
MTA11-G2	KT38-GA /G1	cylinder liner/Block
MTAA11-G3	KTA38-G2 /G2A	connecting rod
NT855-GA	KTA38-G2B	Piston/Ring
NTA855-G1 / G1A	KTA38-G4 /G5	Fan/Pelley hub
NTA855-G1A	KTA38-G9	Radiator/Water tank
NTA855-G1B	KTA50-G3	Sea water pump
NTA855-G2 / G2A	KTA50-G8	Heat exchanger
NTA855-G3	KTA50-GS8	Belt/Belt pulley
NTA855-G4	KTA50-G9	Turbocharger
NTAA855-G7 / G7A	KTA50-G15	Fresh water pump
KTA19-G2	QSNT-G6/G7	Fuel pump/Injector
KTA19-G3/G3A	QSNT-G1/G2/G3/G4X	Control module
KTA19-G4	QSK19-G14/G13/G12	Bellows/Connector
KTAA19-G5 /G6 /G6A	QSK19-G6/G4/G5	Muffler/Silencer
KTAA19-G7	QSK19-G11/G11X	Pipe/Hose/
KTA19-G8	QSK19-G8/G7/G6/G1/G2	Operation manual

Factory Information

Chongqing Tincon Mechanical & Electrical Equipment Co.,Ltd

We have more than 15 years of rich experience in engine and auto industry and have com-

pleted many large projects. Our professional engineering teams provide clients with the

mature products application design,on-site technology support and customers training etc.

Presales service and help the customers to solve the problems and difficulties resulted
from products application design.

Successful Project

Customer Photos

Packaging & Shipping

* We can choose any method of delivery for the customer.

* The express companies we cooperate with are DHL, UPS, TNT, FedEx, EMS, etc.

* The logistics cooperation includes all kinds of large shipping companies and railway

transportation.

FAQ

Q1. Can you provide technical support?
A: Yes, we have an advance technical team with many experienced engineers who can provide you with strong and reliable technicalsupport.

Q2: Can we customize the products?
A: Yes, in addition to providing regular products, we can also customize it for you to meet your requirements.

Q3: How long is the production time of the goods?
A: We have a lot of regular inventory of spare parts, it will take 1-3 days after receiving your advance payment. Engine assembly
and generator sets depends on the items and specification of customers, the quickest delivery time can be 15 days.

Q4: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We will show you the photos and videos of the goods.

Q5. What is your packing method?
A: Generally, the engine assembly is packed in wooden case, the parts is packed in carton. And we can also according to customers requests.
