Centrifugal Oil Purifier for Heavy Fuel Oil Filtration and Oil Dehydration

Centrifugal Oil Purifier for Heavy Fuel Oil Filtration and Oil Dehydration

Get Latest Price

Payment Type:: L/C, T/T

Incoterm:: FOB, CFR, CIF, EXW

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 30 Days

Transportation:: Ocean, Land, Air

Port:: Shanghai, Chongqing

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Chongqing China
Productivity:	500 Sets/Month
Supply Ability:	500 Set/Month
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	CE, ISO, CCC
HS Code:	842199090
Transportation:	Ocean,Land,Air
Port:	Shanghai,Chongqing

Product Description

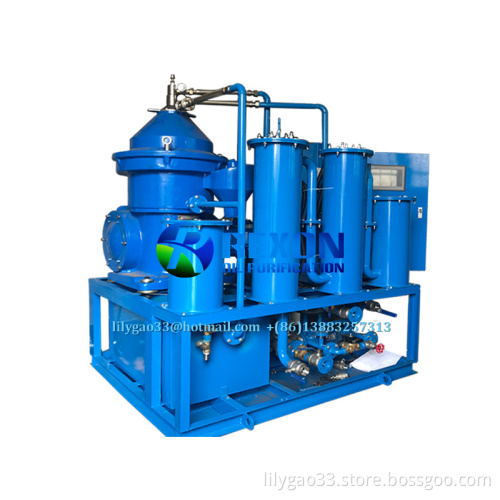

REXON Centrifugal Oil Separator equip with Multi-Stage Oil Filtering System together which have strong capacity to remove high content of sludge, impurities from oil fast
REXON Centrifugal Oil Separator equip with Online Automatic Sludge Discharge System to guarantee long time automatic working and no need operator to discharge sludge anymore

Application
REXON Centrifuge Separation Oil Filter Set for Heavy Fuel Oil Onsite Processing equip with three stage oil filter together which have strong capacity to remove high content of sludge, impurities from oil fast. It can deal with high content impurity and water in dirty oil, and the equipment takes automatic slagging system to discharge the large sludge and impurities online and high efficient. It is especially for used Lubricating oil, engine oil, heavy diesel oil, and other industrial oil purification processing, to make high efficient oil dehydration, oil dewatering, oil filtration and oil purification by centrifugal separation and multistage oil filtering.

In order to reduce the heating load of the plant, Rexon centrifugal oil filter unit uses heat recovery device for bigger models which processing capacity are bigger than 50Liters/Hour. The oil pump will pump out the hot oil and import cold oil for energy exchange, and heating efficiency will be increased by 50% or more.

Advantages
REXON Centrifuge Separation Oil Filter Set for Heavy Fuel Oil Onsite Processing can be equipped with automatic slagging device, which can solve manual slagging troubles, automatic and high efficient. And the plant is using the "gradual density" filtration technology, the maximum filtration accuracy reaches to 0.5μm, β ≥ 1000, solid particle retention rate is up to 99.99%. Normally the primary filter's filtering accuracy is 5μm, secondary filter is 3μm, fine filter is 1μm.

Note: If the user has very high requirement on oil's moisture content and need to remove dissolved water completely, we recommend to use our another vacuum oil dehydration machine series TYA to make a deep oil dehydration and oil filtration after the treatment by series RCF equipment. TYA can quickly remove water from the oil high efficiently and eventually reduce the total water content to 15-30 PPM or less.

Technical Parameters

Item	3	6	8	10
Processing Capacity (m³/h)	3	6	8	10
Sludge Discharge Modes	Manual Discharge Mode or Automatic Discharge Mode
Drum speed (r/min)	8300
Working Temperature for Oil(ºC)	20~80
Moisture after Processing (ppm)	≤100
Oil Cleanliness (NAS)	≤6 Grade
Power Supply Data	Three Phase 4 Wires AC 380V 50Hz
