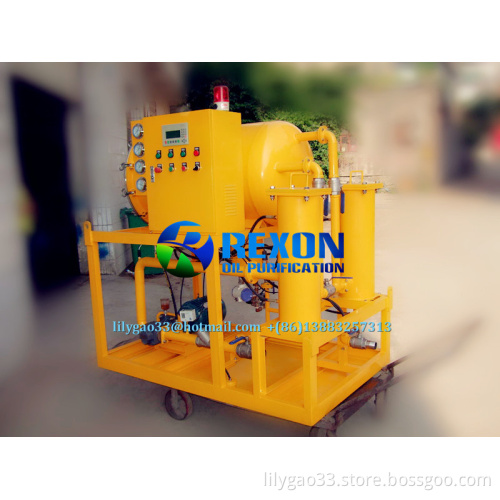

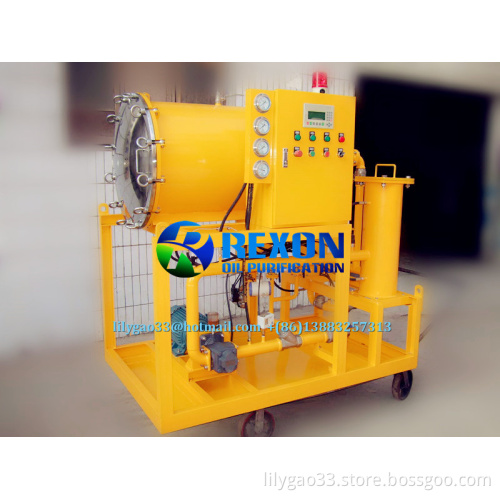

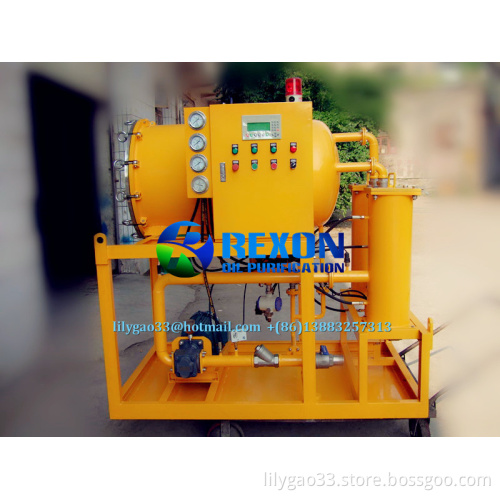

Series TYB Coalescence-separation Oil Purifier

 Application and Function

It is applicable for light oil. such as  aviation fuel, gasoline, kerosene, diesel oil. It can remove water and impurities .In order to prolong lifetime of nozzle and improve efficiency of fuel engine, finally improve the quality of oil . It is good machine to serve in petroleum warehouse and oil storage station. This machine is mainly consisted of rough filter, second filter, fine filter, coalescence filter & separation filter,oil pump and electronic control system. During oil in storage, transportation and filling process will breathe in size. It will be contaminated oil due to the change of outdoor environment temperature and humidity, the invasion of rain, snow and dust through the respiration valve. Moreover,it's  inevitable  to bring into a large number of moisture and impurities during link into oil Pipes, tanks, moreover, assembly, welding, anticorrosive, purging and pressure testing of the manufacture, installation, debugging, hard to avoid in production.Hence,in order to ensure the safety of oil equipment in use operation and avoid an accident, it must be remove moisture and impurities.

Fuel Oil Purifier Machine Fast Dehydration Oil Cleaner Working principle

Advantage of coalescing purifier machine for macro-molecular water; removing moisture by heating is not needed; different liquid with different surface tension and when liquid flows through the hole, the smaller the surface tension, the faster the transmission rate. When the different mixed liquid flow into the separator and enter into the coalescing filter element firstly, the filter with multi-layer filter media and the hole diameter is increased layer by layer. Due to the difference in surface tension, the oil can go through the filter layer quickly but the water goes much slower; besides the coalescence filter take use of the hydrophilic material, fine moisture droplets are adsorbed on the surface of the filter layer then cause the coalescence of water droplets. water droplets go through the hole by the function of kinetic energy, and becomes the large water droplets gradually, and fall down under the function of gravity, then separating from the oil, the oil ends in the coalescence filter element is still smaller moisture included, and it moves forward to separation filter elements by Inertia.
The separation filter element is made of a special hydrophobic material, the smaller moisture will be blocked when the oil go through the separation filter, and oil go through the separation filter and released from the outlet.

Fuel Oil Purifier Machine Fast Dehydration Oil Cleaner parameter of the purified oil

REXON After Sales Service
-We will help to arrange the transport and shipping for the machine to customer.
-We offer full set documents for customs clearance at customer's destination port.
-We will offer lifetime technical support for our equipment, free technical upgrade, free or chargeable spare parts supply, etc.
-We offer online service for customers 24 hours everyday. If you have any question while using our machine, you can contact us by online chat software, or by email, phone etc, we will get back to you very soon within 4 hours.
-We will also offer operation training for free in our factory and offer door-to-door service to send our engineer to your place for the machine's installation service and operation training if you need.
-Installation, Operation and Maintenance details will be in the operation manual booklet and videos which will be sent to you with machine.
-Rexon's guarantee time is two years for each of our equipment.
