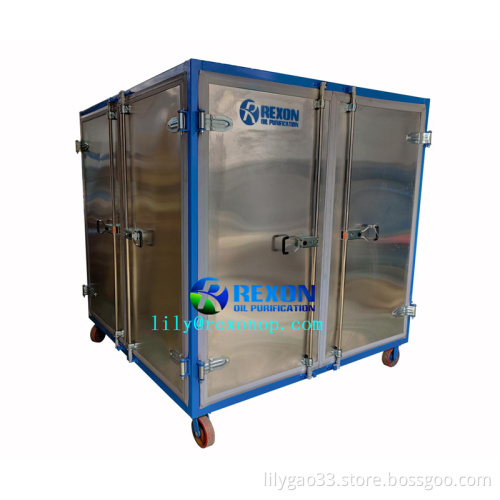

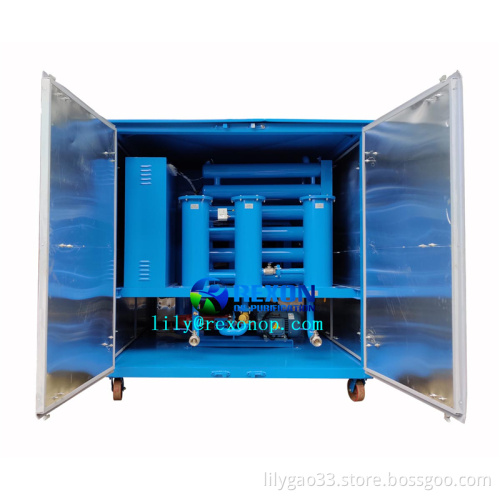

Bipolar High Vacuum Transformer Oil Purification Machine

Bipolar High Vacuum Transformer Oil Purification Machine

USD15000

≥1 Set/Sets

Payment Type:: L/C, T/T, Western Union

Incoterm:: FOB, CFR, CIF, EXW

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 20 Days

Transportation:: Ocean, Land, Air

Port:: Chongqing, Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Chongqing China
Productivity:	500 Sets/Month
Supply Ability:	500 Set/Month
Payment Type:	L/C,T/T,Western Union
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	CE, ISO, CCC
HS Code:	842199090
Transportation:	Ocean,Land,Air
Port:	Chongqing,Shanghai

Product Description

Application

ZYD series oil purifier is widely used in electric power, transforming electricity industry, metallurgy, chemical engineering, traffic, railway and others. It is designed for the vacuum filter of expensive oil such as fresh oil, imported oil, instrument transformer oil, extra-high tension transformer oil (cover110v, major transformer), and for vacuum oiling, and drying of transformers. This filter can live line work on the spot.

Features

1. Fast water removal, Duplex 3D stereo-evaporation, eliminating moisture and gas contaminants quickly: Advanced dehydrating and degassing system that use large area three-dimension flash distillation technique to remove harmful composition in the oil, such as water, air and gases much quickly and completely so as to get a value of ≤ 3 PPM for moisture, ≤0.1% for gas content.

2. Double stage high vacuum system presentation: Besides vacuum pump, this machine installs Roots Pump vacuum system, which speeds up evacuation to make a High point Vacuum≤5pa, Working vacuum≤35pa.

3. High precise degree for oil filtration: Precise fine filter, multi-stage filtration help remove mechanical impurities, tiny particles in oil completely, high quality filter elements material is of corrosion proof, strong mechanical strength and wear resistance. After purification the filtration precision will get a value of ≤1 micron (no free carbon).

Machines' Technical Data Guarantee

Parameters		Model Unit	ZYD-30		ZYD-50	ZYD -100	ZYD-150	ZYD-200	ZYD-250	ZYD-300
Flow Rate		L/hr	1800		3000	6000	9000	12000	15000	18000
Working Vacuum		MPa	-0.08 ~ -0.099
Working Pressure		MPa	≤ 0.3
Temperature Control Range		ºC	20 ~ 80
Operation Temperature		ºC	50 ~ 70(55~60 is best)
Power Supply			380V, 3 Phase, 50Hz (or as per requirements)
Working hours without Trouble		Hour	4000
Continuous Working Hours		Hour	200
Working Noise		dB(A)	75	75		75	80	80	80	80
Heating Power		KW	30	60		90	135	150	165	180
Total Power		KW	35	67.5		101.5	149	164	179	198
Inlet/Outlet		mm	φ25	φ32		φ42	φ50	φ50	φ60	φ60
Weight		Kg	450	550		900	1150	1450	1600	1950
Overall	Length	mm	1050	1100		1300	1450	1600	1800	2000
	Width	mm	1000	1000		1250	1350	1550	1750	1850
	Height	mm	1050	1050		1280	1450	1600	1800	2000
