Transformer Oil Filtration Machine with Oil Filling, Vacuum Evacuation Function

Transformer Oil Filtration Machine with Oil Filling, Vacuum Evacuation Function

Get Latest Price

Payment Type:: L/C, T/T, Western Union

Incoterm:: FOB, CFR, CIF, EXW

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 20 Days

Transportation:: Ocean, Land, Air

Port:: Shanghai, Chongqing

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Chongqing China
Productivity:	500 Sets/Month
Supply Ability:	500 Set/Month
Payment Type:	L/C,T/T,Western Union
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	CE, ISO, CCC
HS Code:	842199090
Transportation:	Ocean,Land,Air
Port:	Shanghai,Chongqing

Product Description

Brief Introduction

Machine Condition: New
Treatment Capacity: 9000 L/H
Working Pressure: ≤0.4 Mpa
Place of Origin: Chongqing, China (Mainland)
Brand Name: REXON OIL PURIFICATION
Model Number: ZYD-150
Application: Transformer Oil
Power data: 380V 50HZ/3 Phase Or As Required

Function: Vacuum oil dehydration and degassing, oil filtering, removing particles, free water, dissolved water, gas, acidity completely.
After-sales Service: Free factory training & Engineers available for on-site commissioning.
Warranty: 2 Years

Oil Data After Process:
Impurity size after process: ≤1 micron
Gas content after process: ≤0.1%
Moisture content after process: ≤3 PPM

Application

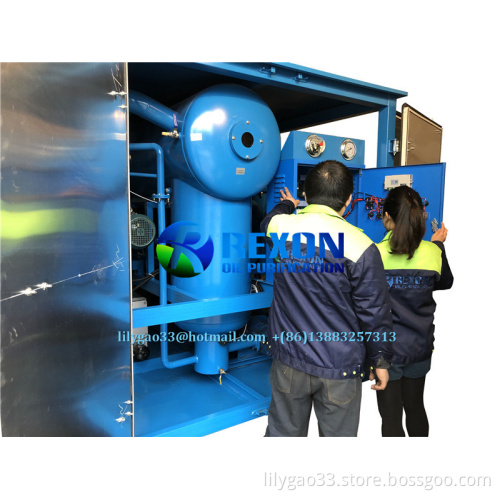

REXON Three-stage Filter Transformer Oil Cleaning Machine 9000Liters/Hour, can remove the water, gas and impurities in insulation oil high-efficiently, increasing the pressure force and quality of oil, make the oil limiting voltage-withstand value much higher and make sure the electric device running safely. The machine is mainly used for electric power department and industries to deal with various oils such as transformer oil, mutual oil, switch oil, dielectric oil and so on. It also can be used for filtration of more than 110KV substation live line work onsite. Meanwhile, as the bridge-type vacuum linking system, Series ZYD oil purifier can be used as independent vacuum source with functions of vacuum drying and vacuum oiling. The dielectric value of treated oil is higher than 75~85KV. It is very suitable for the large electric&insulation equipments.

Features

1. Double-stage vacuum system, strong power of vacuum evacuating, ultimate vacuum value ≤ 5Pa.
2. Big capacity of moisture ands gas separating chambers, efficient oil film sprayer, increasing separating size and separating time to ensure the dry-level and dielectric strength of oil improving greatly.
3. Duplex-Stereo film evaporation technology, combined with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.
4. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies, which can purify oil high efficient and make oil highly pure.
5. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
6. Double-infrared liquid level sensor, pressure protective system and foaming elimination system to ensure machine operating easy and safely.
7. Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
8. It can be operated both online and offline of transformers.
9. Can be used independent device for vacuuming transformers which are above 110KV and can vacuum oil filling for power equipment.
10. Can work online for 150 hours continuously, high reliable and long time running.
11. Can be installed by PLC programming control system to achieve machine working fully automatically.

Advantages
Three-stage Filter Transformer Oil Cleaning Machine 9000Liters/Hour, Comparing with the single-stage vacuum oil purifier, series ZYD adds ROOTS vacuum system, second stage of separating system to improve the effect of purification which dewaters, degases and removes impurities more quickly, more completely and make the oils limiting voltage-withstand value much higher. This machine also can remove free, soluble water, carbon, free and dissolved gases and particulate matters from insulating oil effectively and rapidly. As the bridge-type vacuum linking system that can filter and be an independent vacuum power supply, this machine can be vacuum treating the electric insulating devices. Series ZYD utilizes coacervation technology, coalescing technology, separating technology and refined purification technology.

Technical Parameters

Parameters		Unit	ZYD-30	ZYD-50	ZYD-100	ZYD-150	ZYD-200	ZYD-250	ZYD-300
Flow Rate		L/H	1800	3000	6000	9000	12000	15000	18000
Working Vacuum		Mpa	-0.08 ~-0.099
Working Pressure		Mpa	≤ 0.3
Temp Range		ºC	20 ~80
Power Supply			380V, 50Hz, 3Phase( As per required)
Working Noise		Db	60 - 80 (Depended on the configuation)
Heating Power		KW	30	60	90	135	150	165	180
Total Power		KW	35	67.5	101.5	149	164		198
Inlet/Outlet Diam		MM	25	32	42	50	50	60	60
Weight		KG	450	550	750	950	1200	1850	2000
Size	Length	MM	1450	1450	1750	1850	1950	2050	2150
	Width	MM	950	1000	1250	1300	1350	1400	1450
	Height	MM	1700	1750	1950	2000	2050	2100	2150
AFTER TREATMENT
Dielectric Strength		KV	≥ 75-85
Water Content		PPM	≤ 3
Gas Content		%	≤ 0.1
Particle Size		μ	≤ 3
Cleanliness ≤NAS 1638 Grade 5

Our Transformer Oil Purification and Maintenance Machines can bring you:
→Purifying your transformer oil high efficiently
→Maintain your transformer oil always in good status
→Save your old transformer oil replacement cost
→Solve your waste transformer oil disposal problem
→Guarantee your transformers working normally with qualified oil property
→Protect your transformers and power equipment from oil pollution problems
→Reduce your maintenance time, energy and invest on transformers and power plant
→Create a safety and cleaning oil use environment for your transformers of power station

→Bring a green oil ideal to the world and save oil energy for all of our generations
