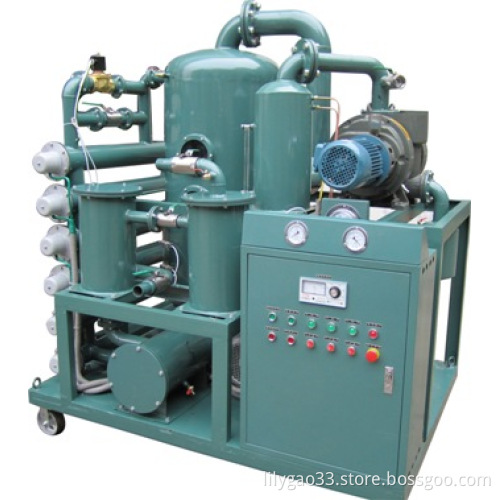

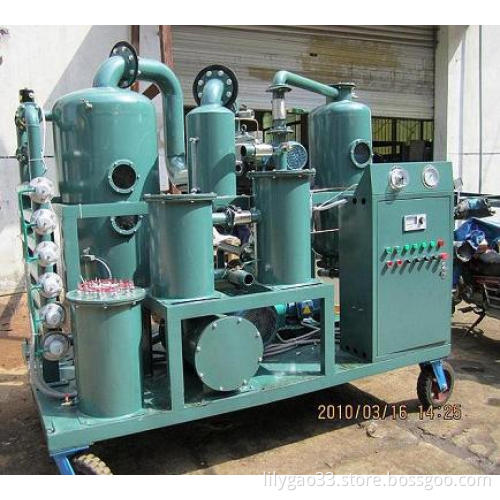

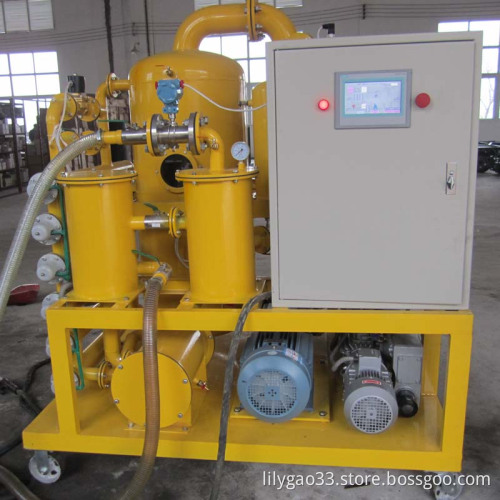

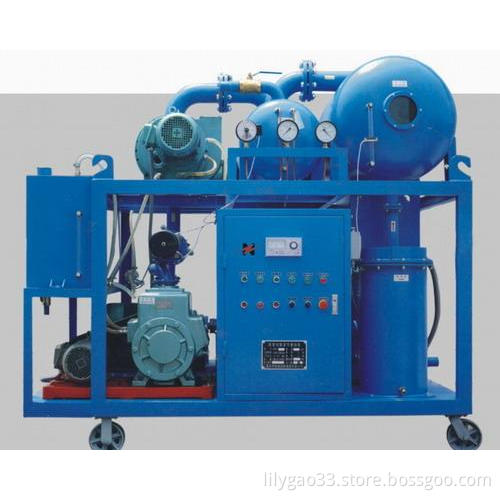

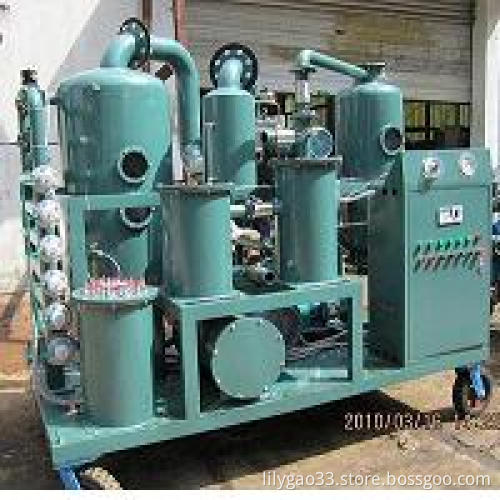

ZYD--Double Stage Vacuum Insulating Oil Regeneration Purifier

Application

It is mainly used for purifying the insulating oil in all kinds of large power equipments, which are above 110KV especially for those over 500 meters height area.

Features

1. High vacuum: Ultimate vacuum ≤5pa  Working vacuum ≤35pa.

2. High absorption speed: Absorption speed power ≥333L/S.

3. Duplex 3D stereo-evaporation, eliminating the liquid water quickly.

4. UK G technology by which the trace water that is show chain, such as dissolved water, can be removed effectively.

5. Distinctive remove impurities system filtering through double FH trapezoidal network and absorption by high polymer without the mechanical power.

6. Especially applied to vacuum oiling and drying for power transmission equipments that are over 110KV.

7. Can be operated both on-load and off-load.

Advantage

Comparing with the single-stage vacuum oil purifier, this machine dewaters, degases and removes the impurities more quickly, more completely, and makes the oils limiting voltage-withstand value much higher. As the bridge-type vacuum linking system, it is used for filtrating system as well as an independent vacuum power supply to vacuum oiling of power equipment.
