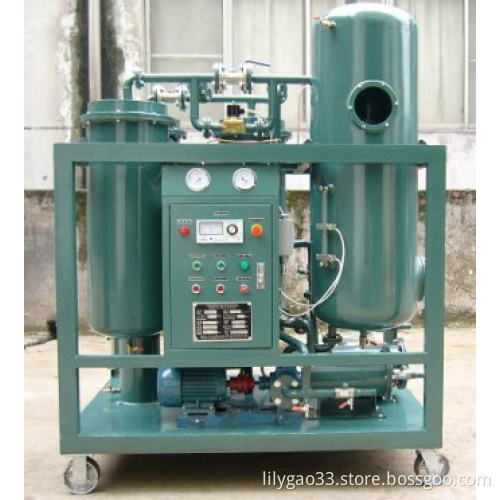

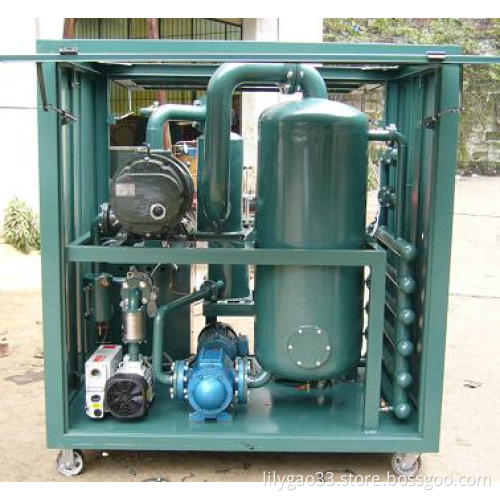

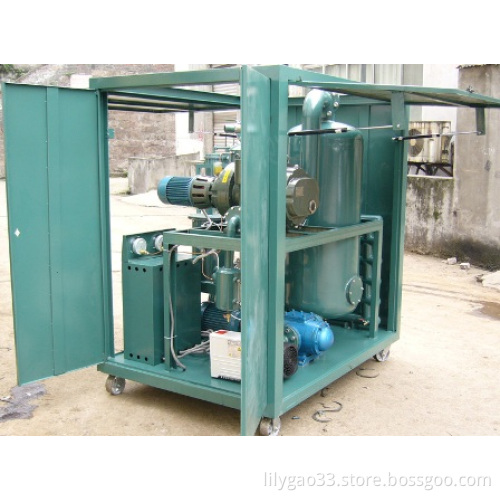

High Perfermance Turbine Oil Purifier Turbine Oil Filtration Machine
- Payment Type:
- L/C, T/T, Money Gram
- Incoterm:
- FOB, CFR, CIF, EXW
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 20 Days
- Transportation:
- Ocean
- Port:
- ShanghI, Chongqing
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Chongqing China |
|---|---|
| Productivity: | 500 Sets/Month |
| Supply Ability: | 500 |
| Payment Type: | L/C,T/T,Money Gram |
| Incoterm: | FOB,CFR,CIF,EXW |
| Certificate: | CE, ISO, CCC |
| HS Code: | 842199090 |
| Transportation: | Ocean |
| Port: | ShanghI,Chongqing |
Application:
It is used for treating the unqualified turbine oil, especially the seriously emulsified turbine oil. This series, which can rapidly and effectively remove the water, gas and impurities aiming at turbine oil's nature of high water content, easily emulsified and high impurity content, make the oil reach new oil's standard.
Features:
1. Dewater and break emulsification efficiently. Remove a quantity of water and moisture. As adopt break emulsification, the oil turn to be clear.
2. Filter impurities efficiently, auto-back flush can remove a quantity of impurities and the precious material can remove the tiny particles instead of the clean device of oil system. The feature can have the serious polluted oil system recover and reach the standard of the turbine oil pollution control standard
3. Hi-autoimmunization, small, convenience, reliable, and safety. The purifier used infrared ray liquid level auto-control system. It can run without person operating so that have simple operation and reliable. TY oil purifier is especially for turbine oil, lubricating oil, hydraulic oil and so on.
Technical Parameters:
Item
Unit
TY-10
TY-20
TY-30
TY-50
TY-100
TY-150
TY-200
TY-300
Flow rate
Liters/hour
600
1200
1800
3000
6000
9000
12000
24000
Working Vacuum Degree
MPa
-0.06 ~-0.095
Working Pressure
MPa
≤ 0.3
Temperature Range
ºC
20 ~80
Water content
PPM
≤50
Impurity content
μm
≤5
Gas content
%
≤0.1 %
Cleanness
NAS
≤6 grade (NAS1638)
Demulsification value
min
≤15 (GB/F 7305)
Power Supply
3 Phase, 50 Hz, 380V (or as per requirement)
Heating power
kW
12
15
18
24
45
60
72
84
Total power
kW
14
17
20
27
48
66
81
97
Inlet/outlet caliber
mm
25
25
25
32
42
50
50
60
Weight
kg
400
450
500
600
700
900
1050
1550
Dimension
Length
mm
1280
1350
1350
1400
1500
1500
1600
1800
Width
mm
750
900
950
950
1000
1200
1350
1400
Height
mm
1450
1450
1500
1600
1650
1800
1800
Welcome to contact us for more information please!
-
