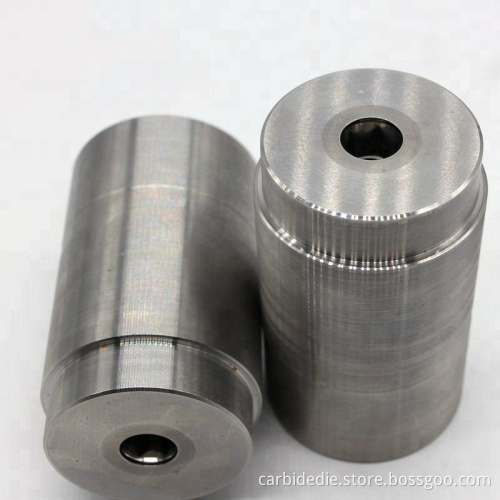

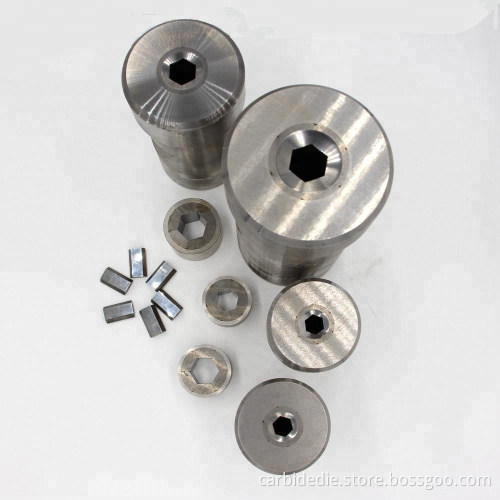

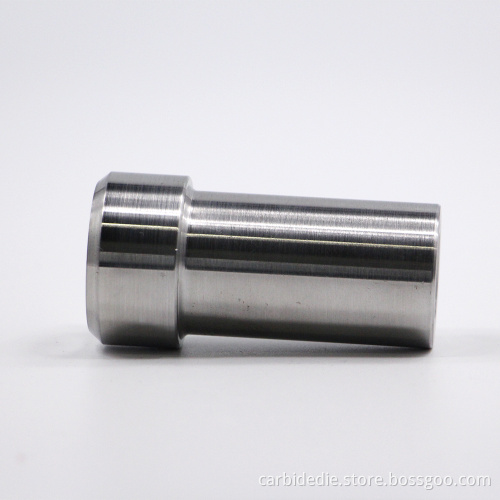

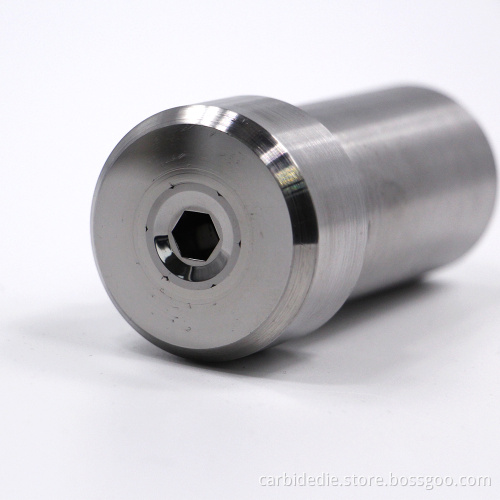

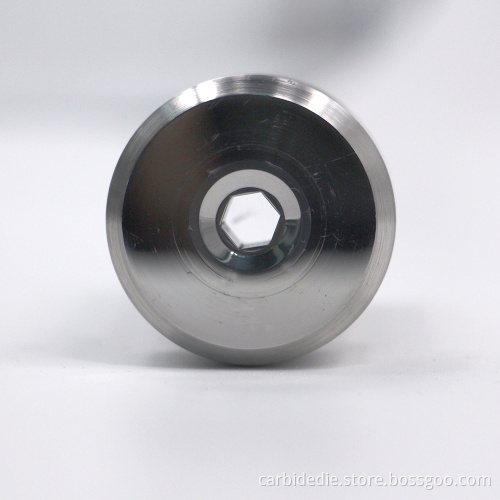

High Quality Customized Screw Punch Die

Minimum and maximum dimensions:

Holes from  1,0 up to  40 mm, outer dimensions from 10 up to 200 mm, length from 1,0 up to 300 mm.

Mirror polish before and after coating.

Different technologies.

± 0.005 mm tolerances.

Possibility of tooling design.

Mechanical Processing surfaces when it is geometrically possible.

 Henghui will choose the suitable carbide materials of products, combined with perfect technology, makes the carbide dies to achieve a better life.Tungsten carbide straight hole dies with the property of high wear resistance, good polishing performance, low friction coefficient, etc.and has very high compressive strength.

   Even today, steel mold are still in use due to they're cheap, as tungsten carbide parts tend to cost more up front. The performance benefits that tungsten carbide dies have to offer, however, easily justify their price point.

  The primary advantage of tungsten carbide die is strength. Carbide dies, which are notable for offering more satisfactory performance than steel counterparts, tend to last significantly longer, too – even in extreme conditions. Thanks to this durability, our tungsten carbide dies require replacement much less often than typical steel dies, which not only reduces overall maintenance costs, but lessens machine downtime as well.

Tungsten Carbide Dies (Punch Die )are designed with high precision in order to meet the international quality standards.

The offered dies are known for their robust designs, durable finish standards and longer service life.

 Apart from this, the offered tungsten carbide dies are available in various sizes and dimensions as per the

 varied needs of the clients.

Tungsten Carbide Dies durable finish standards and longer service life. Apart from this, the offered tungsten

 carbide dies

Applications:
Heading dies ( Punch Die) can be used in many cold heaidng industry parts including bolts, screws, rivets, etc., which can act as intermediates for final-products.

We supply for customer including:
Cold Heading Die
 Carbide Punches And Dies
 Tungsten Carbide Die
 Cold Forging Die
 HSS Punches
 Punch Pin
 Second Punch
 Second Punch Case
 Carbide Punch Pin
 Trimming Die
 Thread Rolling Die
 Nut Forming Dies
 Die Cutting Knife
 Shear Die
 Drawing Die
 Extrusion Die
 Carbide Die
 Drill Point Die
 Hex Punch
 First Punch Die
 First Punch Case
