Carbide Segmented Carbide Dies For Screws And Rivets

Carbide Segmented Carbide Dies For Screws And Rivets

$200.00 - $50.00/Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean, Land, Air, Express, Others

Port:: Chongqing, guangzhou, shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	30000 Piece/Pieces per Month
Payment Type:	T/T
Incoterm:	FOB,CIF,EXW,CIP,DDP
HS Code:	8207209000
Transportation:	Ocean,Land,Air,Express,Others
Port:	Chongqing,guangzhou,shanghai

Product Description

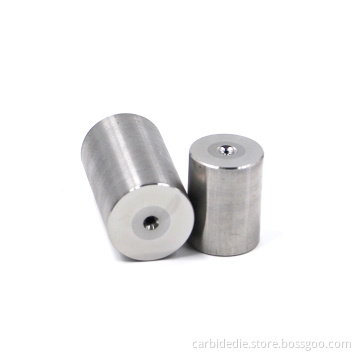

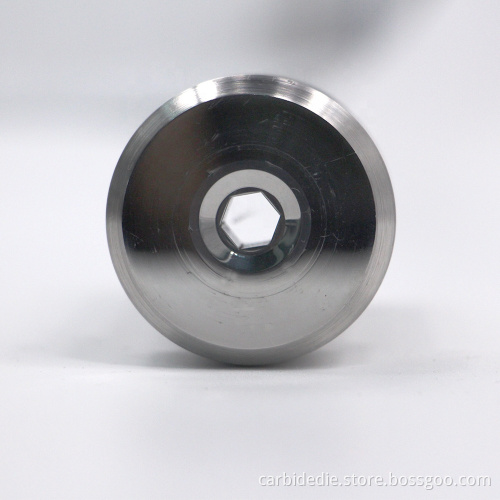

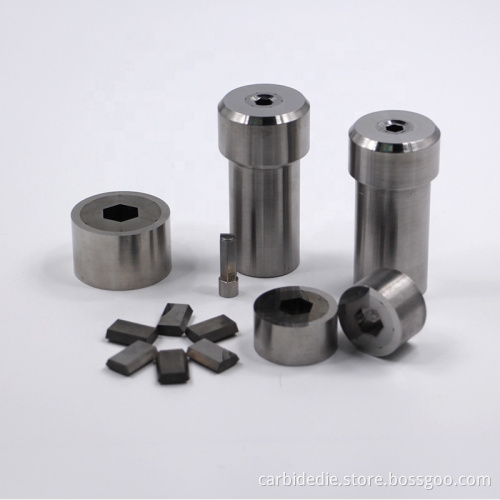

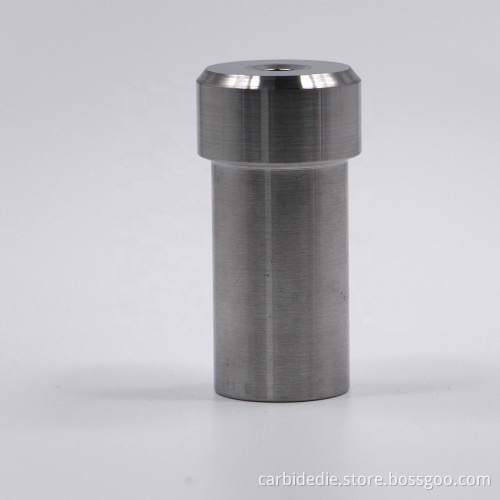

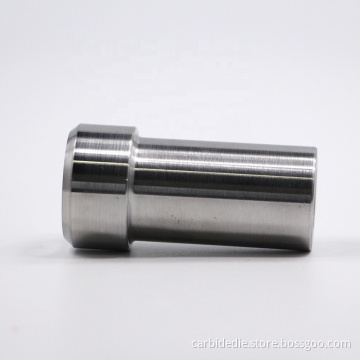

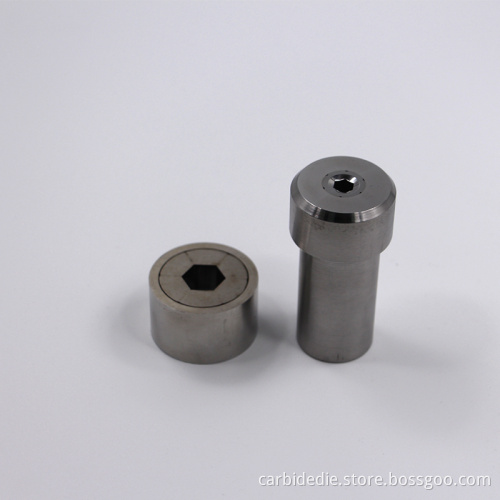

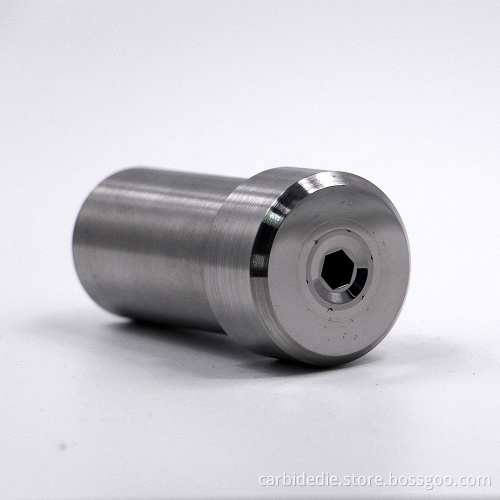

Tungsten Carbide Segmented Carbide Dies For Screws And Rivets

Product Description

Hole size: H6~H50 (mm)

Material: Tungsten carbide(VA80, ST7, G6, YG20, etc) and Die Steel(H13)

Provide design services

Segmented dies can be supplied as either inserts or complete die assemblies in tungsten carbide or special steels. The advantages of extended tool life offered by interchangeable segmented inserts are now widely recognised. All tools are certified prior to despatch to our customers.

Being a highly effective and fast-moving firm, Henghui is actively engrossed in offering an exclusive assortment of Hex Segmental Dies. The offered products are highly acclaimed across the globe for their optimum quality and easy installation. Manufactured under innovative professionals with advanced techniques, these dies are used in various in various industries for making varied types of fasteners. Apart from this, the products offered by us are available in diverse sizes as per client's demands. Tungsten Carbide Segmented Carbide Dies For Screws And Rivets

Main material:

Reasonable choice of carbide material will greatly improve the service life of die

	Item	Co	Grain Size	Density	Hardness	TRS	Impact Strength	application
Medium-Grained		Co%	μm	g/cm²	HRA	Kgf/mm²	Kgf/m-cm²
	KG2	6.5%	2~3	14.90	90.5	320	0.28	Drawing die
	KG3	9%	2~3	14.61	89.3	340	0.52	Extrusion die
	KG5	12%	2~3	14.31	88.3	340	0.58	Extrusion die
	KG6	14%	2~3	14.12	87.3	320	0.65	Extrusion die
Coarse -Grained	ST6	15%	3~6	13.80	86.0	270	0.78	Stainless steel
	ST7	20%	2~6	13.40	85.3	270	0.80	Stainless steel
	EA65	18%	2~6	13.73	85.0	300	0.80	Carbon steel screw/cutting die
	VA80	20%	3~6	13.58	84.0	280	0.85	impact resistance
	VA90	22%	6~9	13.39	82.5	240	0.90	impact resistance

We supply for customer including:
Cold Heading Die
Carbide Punches And Dies
Tungsten Carbide Die
Cold Forging Die
HSS Punches
Punch Pin
Second Punch
Second Punch Case
Carbide Punch Pin
Trimming Die
Thread Rolling Die
