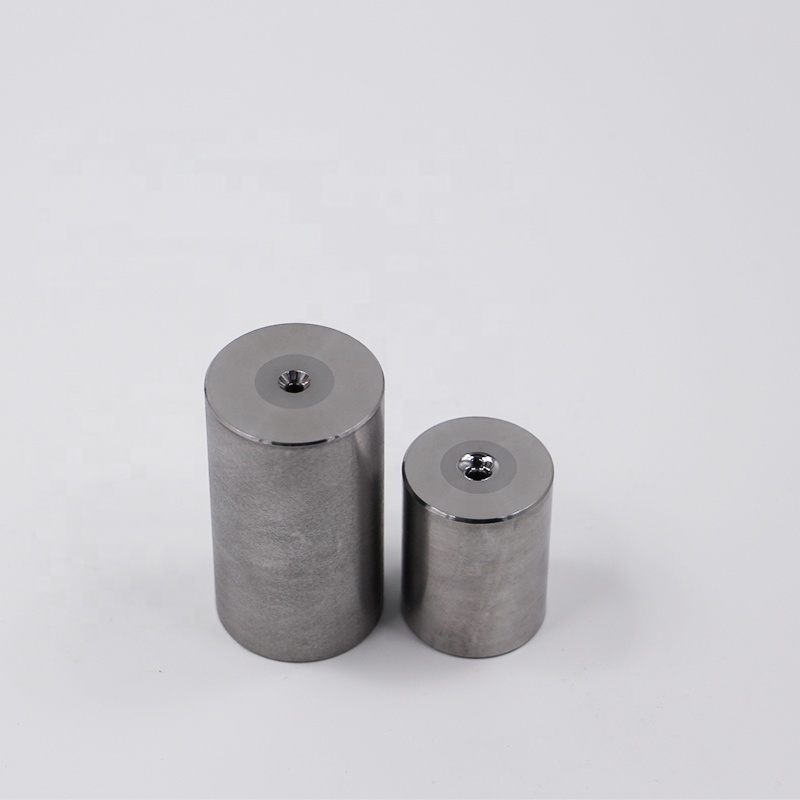

Cold Heading Machine Die Tungsten Carbide Main Die

Cold Heading Machine Die Tungsten Carbide Main Die

$20.00 - $100.00/Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Express, Ocean, Land, Air

Port:: Hangzhou/Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	200 Piece/Pieces per Month
Payment Type:	T/T,MoneyGram
Transportation:	Express,Ocean,Land,Air
Port:	Hangzhou/Shanghai

Product Description

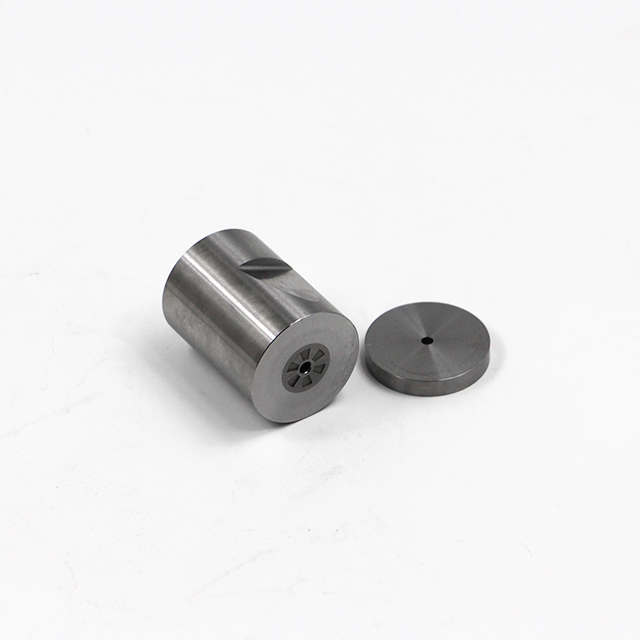

According to the composition of the main die into ordinary mold and segmented hex die. Ordinary mold refers to the die is a whole, with the method of mechanical (such as wrench) can not be disassembled, used for forming relatively simple products. Segmented hex die refers to the combination of die, can be disassembled, used for molding screw head more complex products, each mold model is consistent with the corresponding equipment die base.

Size	Customized
Keyword	Tungsten Carbide Die
Certification	ISO9001:2015
Application	For making screw
Material	Carbide
Precision	0.01mm

Main die selection: the length of the main die, the length and diameter of tungsten carbide of the main die should be selected according to the specification of the screw. The length of the main die tungsten carbide shall be longer than the length of the screw, the outer diameter of the tungsten carbide shall be larger than the diameter of the screw head, and the R Angle of the main die shall meet the requirements of the drawing..

General simple stamping die is composed of punch, die, punch fixing plate, die fixing plate, discharge plate, base, upper bracket, base plate, etc

Main material: Reasonable choice of carbide material will greatly improve the service life of die

	Item	Co	Grain Size	Density	Hardness	TRS	Impact Strength	application
Medium-Grained		Co%	μm	g/cm²	HRA	Kgf/mm²	Kgf/m-cm²
		KG2	6.5%	2~3	14.90	90.5	320	0.28	Drawing die
		KG3	9%	2~3	14.61	89.3	340	0.52	Extrusion die
		KG5	12%	2~3	14.31	88.3	340	0.58	Extrusion die
		KG6	14%	2~3	14.12	87.3	320	0.65	Extrusion die
Coarse -Grained	ST6	15%	3~6	13.80	86.0	270	0.78	Stainless steel
		ST7	20%	2~6	13.40	85.3	270	0.80	Stainless steel
		EA65	18%	2~6	13.73	85.0	300	0.80	Carbon steel screw/cutting die
		VA80	20%	3~6	13.58	84.0	280	0.85	impact resistance
		VA90	22%	6~9	13.39	82.5	240	0.90	impact resistance

Packing&Shipping

We will suggest the best mode of transportation or choose the mode of transportation according to your requirements.

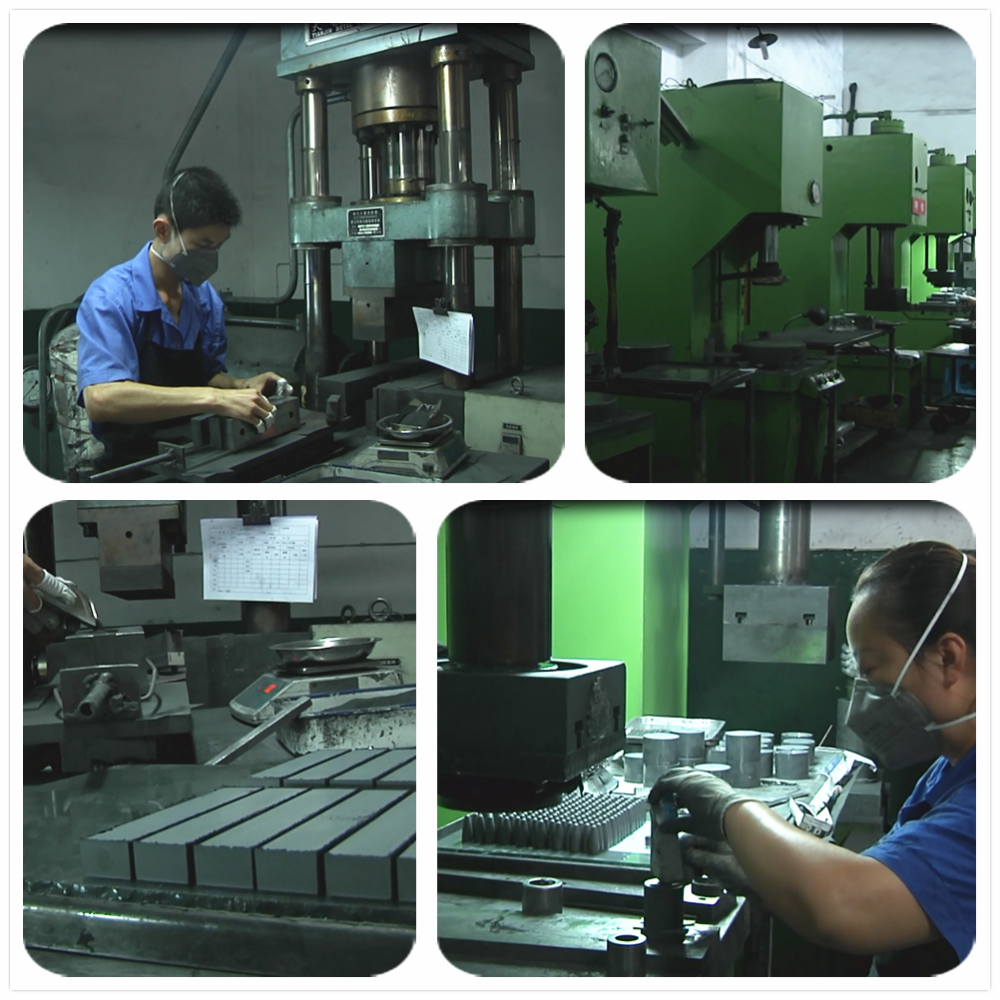

Company Introduction

Chongqing Henghui precision mold Co., Ltd. is a professional screw mold production enterprise with strong technical force, professional production and strict quality control. Main production standard, non-standard special screw mold. According to the customer's requirements, we can produce and order: straight body, shrinking die, closing die, strong binding die, and triangle, hexagon and other multilateral main dies; carbide upper and lower punching and punching sleeve; sleeve, combined die sleeve; cutter; thread rolling die; Six-Lobe thimble, Six-Lobe protection sleeve; straight body, step, tail hole and other multi specification punching needles; punch, thread plate (thread rolling die) and other multi specification screw forming Mold.

FAQ

Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 7-15 days.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we do not offer the sample for free charge.

Q: What is your terms of payment ?
A: 100% T/T(western union or moneygram) in advance.
