Customized Fasteners Cemented Carbide Punching Die

Customized Fasteners Cemented Carbide Punching Die

$20.00 - $189.00/Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Express, Ocean, Land, Air

Port:: Chongqing Port or As Your Request

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	50000 Set/Sets per Month
Payment Type:	T/T,MoneyGram,by cash
Transportation:	Express,Ocean,Land,Air
Port:	Chongqing Port or As Your Request

Product Description

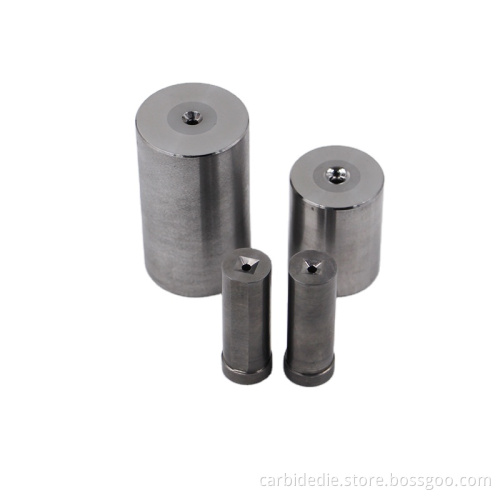

China Supplier Customized Fasteners Cemented Carbide Punching Die

Product Description

China Supplier Customized Fasteners Cemented Carbide Punching Die

Main material:

Reasonable choice of carbide material will greatly improve the service life of die

	Item	Co	Grain Size	Density	Hardness	TRS	Impact Strength	application
Medium-Grained		Co%	μm	g/cm²	HRA	Kgf/mm²	Kgf/m-cm²
	KG2	6.5%	2~3	14.90	90.5	320	0.28	Drawing die
	KG3	9%	2~3	14.61	89.3	340	0.52	Extrusion die
	KG5	12%	2~3	14.31	88.3	340	0.58	Extrusion die
	KG6	14%	2~3	14.12	87.3	320	0.65	Extrusion die
Coarse -Grained	ST6	15%	3~6	13.80	86.0	270	0.78	Stainless steel
	ST7	20%	2~6	13.40	85.3	270	0.80	Stainless steel
	EA65	18%	2~6	13.73	85.0	300	0.80	Carbon steel screw/cutting die
	VA80	20%	3~6	13.58	84.0	280	0.85	impact resistance
	VA90	22%	6~9	13.39	82.5	240	0.90	impact resistance

Company Information

Chongqing Henghui precision mold Co., Ltd. is a professional screw dies production enterprise with strong technical force, professional production and strict quality control. Main production standard, non-standard special screw mold. According to the customer's requirements, we can produce and order: straight body, shrinking die, closing die, strong binding die, and triangle, hexagon and other multilateral main dies; carbide upper and lower punching and punching sleeve; sleeve, combined die sleeve; cutter; thread rolling die; Six-Lobe thimble, Six-Lobe protection sleeve; straight body, step, tail hole and other multi specification punching needles; punch, thread plate (thread rolling die) and other multi specification screw forming Mold.
