Set for Bolts Carbide Screw Main Die
  • Set for Bolts Carbide Screw Main Die
  • Set for Bolts Carbide Screw Main Die
  • Set for Bolts Carbide Screw Main Die
  • Set for Bolts Carbide Screw Main Die
  • Set for Bolts Carbide Screw Main Die
Set for Bolts Carbide Screw Main Die
Set for Bolts Carbide Screw Main Die
Set for Bolts Carbide Screw Main Die
Set for Bolts Carbide Screw Main Die
Set for Bolts Carbide Screw Main Die

Set for Bolts Carbide Screw Main Die

  • $99.00
    ≥1 Piece/Pieces
Min. Order:
1 Piece/Pieces
Min. Order:
1 Piece/Pieces
Transportation:
Express, Ocean, Land, Air
Port:
Chongqing, Shanghai
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Supply Ability: 2000 Piece/Pieces per Month
Payment Type: T/T,Cash
Incoterm: FOB,CIF,EXW,CIP,DDP
HS Code: 8207209000
Transportation: Express,Ocean,Land,Air
Port: Chongqing,Shanghai
Product Description
Product Description
Product Description

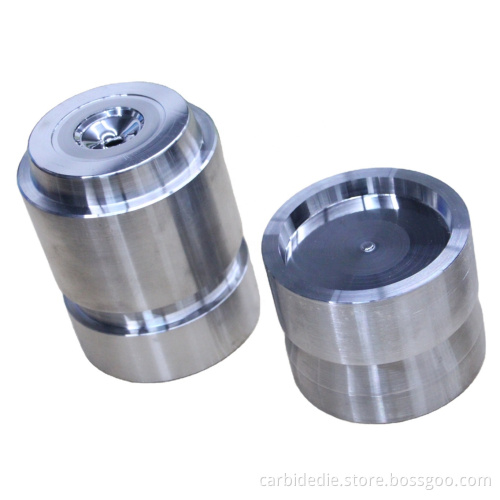

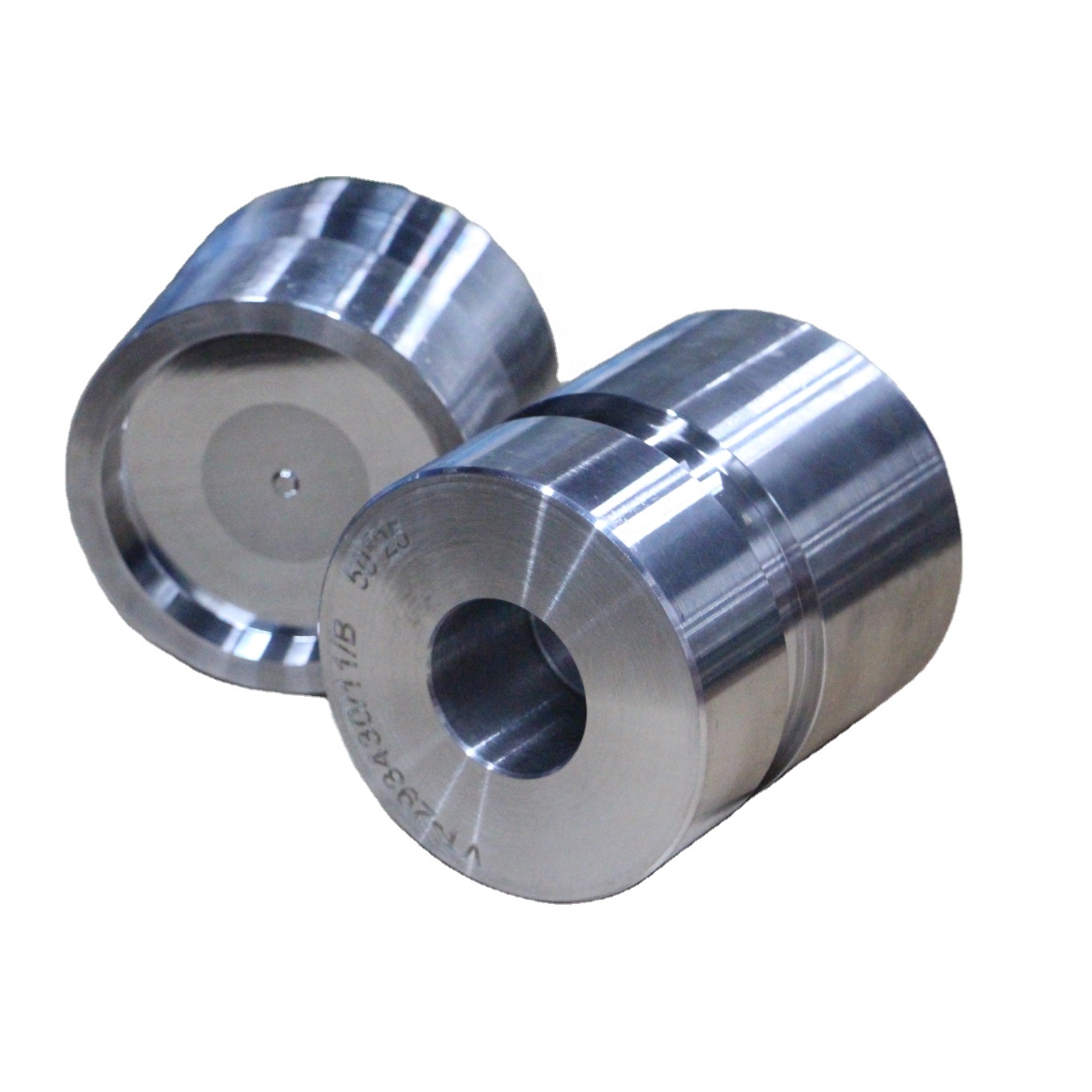

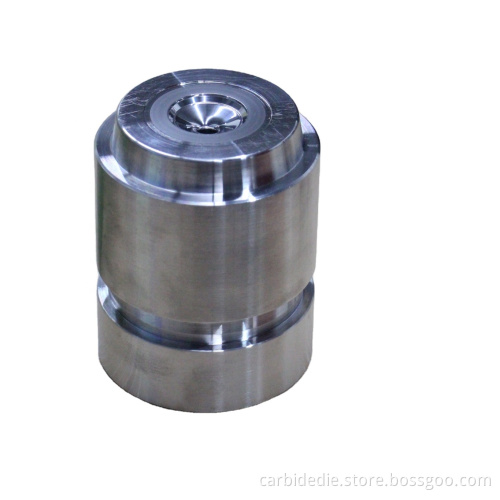

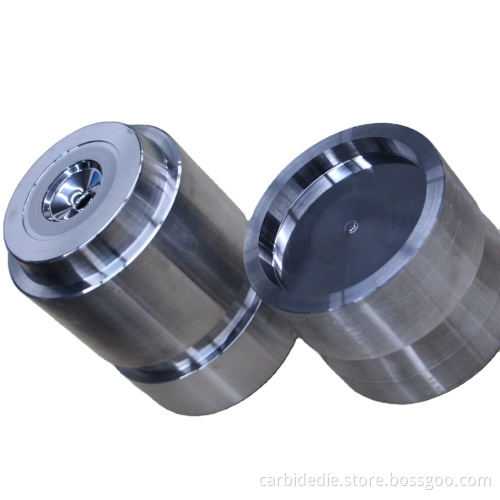

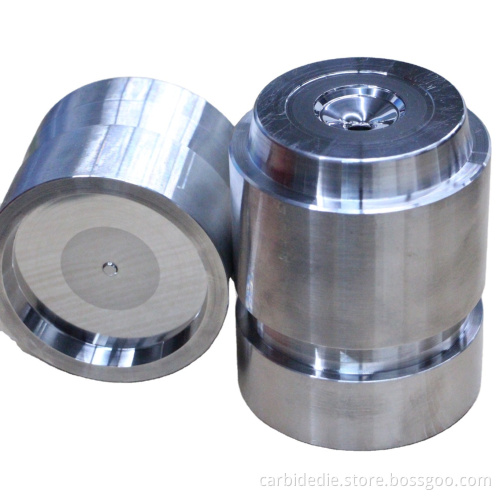

The main die is the main cavity in which the blank is produced. It is generally composed of mould steel (such as SKD11/SKD61) and tungsten carbide (cemented carbide). After the wire is cut off, it is sent to the main die cavity, and the punch strikes the material left outside the main die, causing it to deform into blank. According to the composition of the main die into ordinary mold and segmented hex die. Ordinary mold refers to the die is a whole, with the method of mechanical (such as wrench) can not be disassembled, used for forming relatively simple products. Segmented hex die refers to the combination of die, can be disassembled, used for molding screw head more complex products, each mold model is consistent with the corresponding equipment die base. Main die selection: the length of the main die, the length and diameter of tungsten carbide of the main die should be selected according to the specification of the screw. The length of the main die tungsten carbide shall be longer than the length of the screw, the outer diameter of the tungsten carbide shall be larger than the diameter of the screw head, and the R Angle of the main die shall meet the requirements of the drawing.
Company Profie

Chongqing Henghui Precision Mold Co., Ltd located in Chongqing, which is specialized in developing, production and sales of various tungsten carbide dies manufacturer. All our products are made from high-precision manufacturing equipment and testing equipment. Using advanced processing technology to ensure products’ precision. At the same time, we also have technical engineers with many years of professional design experience, a group of experienced technical and quality inspection personnel, implemented the ISO 9001 quality management system and ERP system management. Our products and services cover the Asian market in China and are exported to Europe, America and Southeast Asia. Our carbide die have a reputation for precision, efficiency, stability and durability. We have a customer service experienced sales staff to provide customers with more attentive service and create more value.


Other product:
Cold Heading Die
 Carbide Punches And Dies
 Tungsten Carbide Die
 Cold Forging Die
 HSS Punches
 Punch Pin
 Second Punch
 Second Punch Case
 Carbide Punch Pin
 Trimming Die
