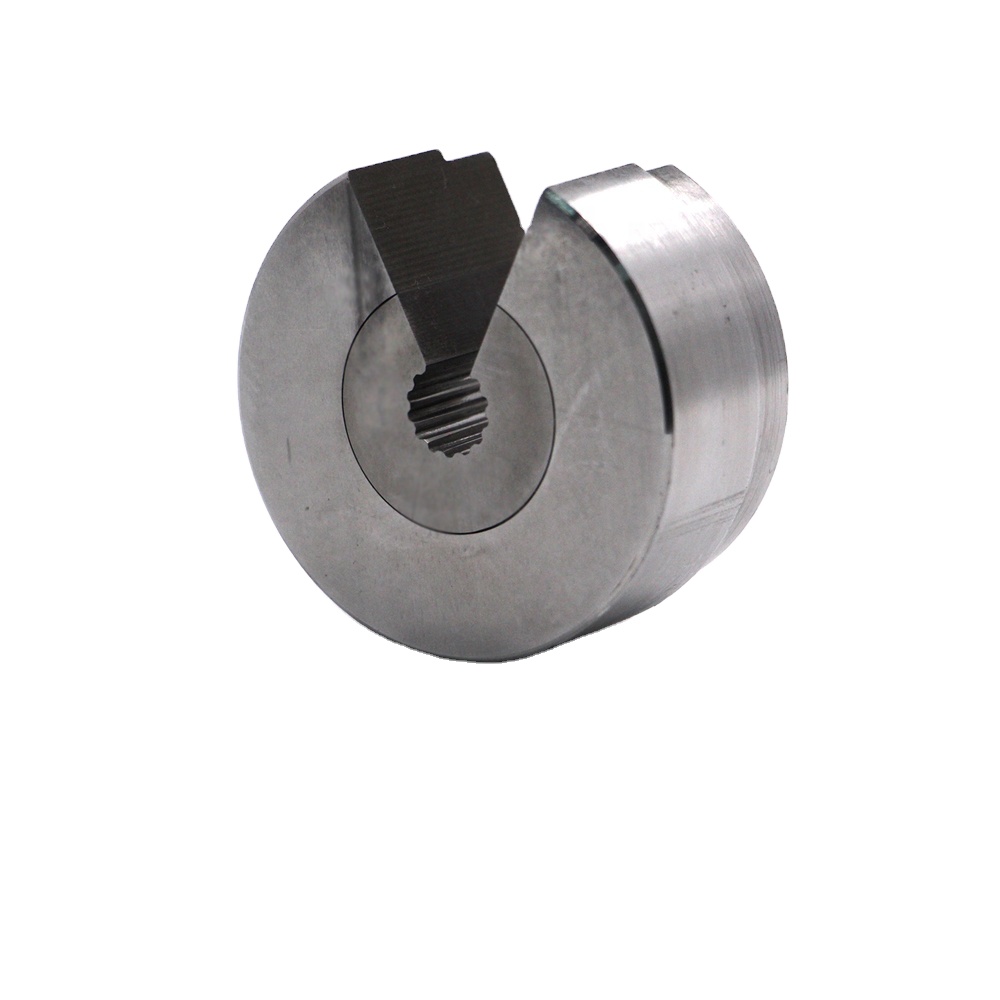

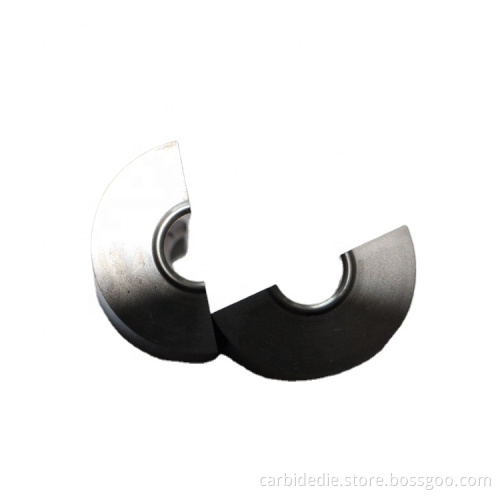

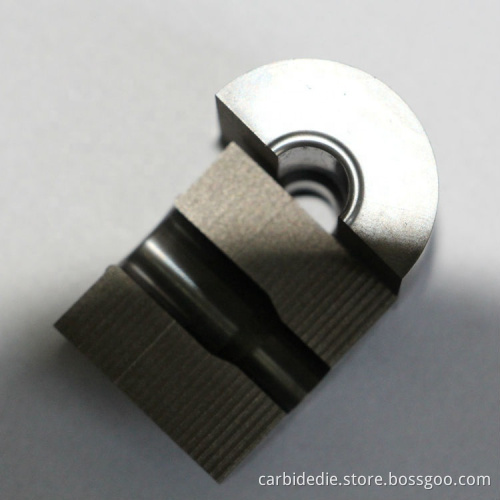

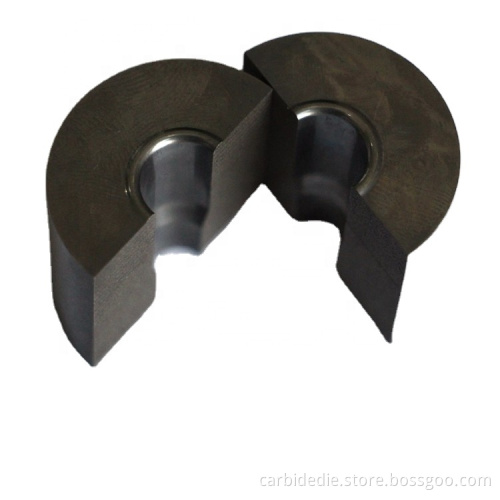

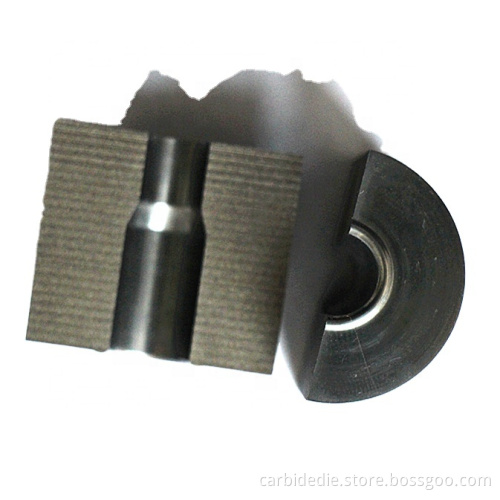

Screw Die,Convex Chamfering Die,Carbide Die
$30.00 - $120.00/Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Express, Ocean, Land, Air
- Port:
- Shanghai, Shenzhen, Chongqing
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Supply Ability: | 2000 Piece/Pieces per Month |
---|---|
Payment Type: | T/T,Cash |
Incoterm: | FOB,CIF,EXW,CIP |
HS Code: | 8207209000 |
Transportation: | Express,Ocean,Land,Air |
Port: | Shanghai,Shenzhen,Chongqing |
Product Description
Product Description
Product Description

Forging heading die is one of the steel dies. It is made of alloy materials with high strength and hardness, corrosion resistance, wear resistance and high temperature resistance, which is far longer than the service life of ordinary steel dies. It is a popular die in modern machinery industry. Its characteristics are as follows:
1) the guiding mechanism of the die adopts the four guide pillar ball mold base, and the stability, reliability and accuracy of the guiding mechanism are very high.
2) use T7 as the raw material of the hardened base plate to avoid the crushing of the cemented carbide die during stamping.
3) most of the formwork bases are made of 45 steel, hrc38-420, which is thicker than the general steel formwork and increases the rigidity.
4) at the die handle, in order to prevent the impact of the precision of the press on the stamping process of the carbide die, the floating die handle structure should be adopted as far as possible.
5) the clearance of the concave convex die is larger than that of the steel die.
6) in order to prevent the impact on the die during stamping, the fixed discharge plate structure is adopted, and the height h of the step is one thick material different from the thickness h of the guide plate.
The selection of the material for the cold heading die is very important. The service life time depends on the quality of the tungsten carbide inside. We use authentic CB-CERATIZIT tungsten carbide to ensure effective life.
We supply for customer including:
Carbide Punches And Dies
Tungsten Carbide Die
Cold Forging Die
HSS Punches
Punch Pin
Second Punch
Second Punch Case
Carbide Punch Pin
Trimming Die
Thread Rolling Die
Nut Forming Dies
Die Cutting Knife
Shear Die
Drawing Die
Extrusion Die
Carbide Die
Drill Point Die
Hex Punch
First Punch Die
First Punch Case
