Tungsten Carbide Stamping Die Wire Cutter Knife

Tungsten Carbide Stamping Die Wire Cutter Knife

$10.00 - $20.00/Piece/Pieces

Min. Order:: 5 Piece/Pieces

Min. Order:: 5 Piece/Pieces

Transportation:: Express, Ocean, Land, Air

Port:: Chongqing, China

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	100 Piece/Pieces per Month
Payment Type:	T/T,MoneyGram,credit card
Transportation:	Express,Ocean,Land,Air
Port:	Chongqing,China

Product Description

Screw Die Sets Tungsten Carbide Stamping Die Wire Cutter Knife

Product Description

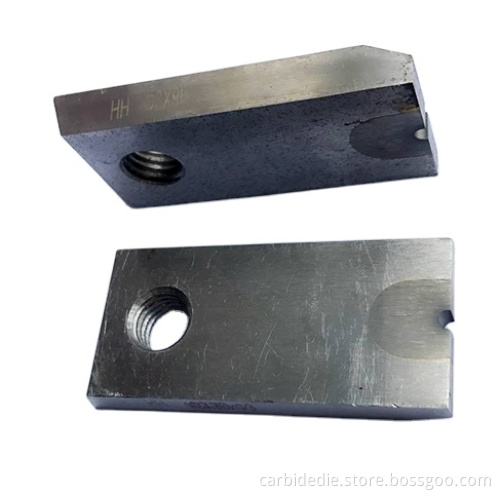

Carbide Die Die cutting knife

*Cutting knife for high quality raw materials

*Cutting knife for the rich production experience

*Cutting knife for advanced process equipment

*Cutting knife for reliable quality assurance

*Cut off knives are hard to determine the minimum and maximum dimensions.Please send me your detailed requirements or drawings

The drawing of Die cutting knife

The die cutting knife is the first step of making screws. They can quickly cut the wire.

If you want to know more about Die cutting knife, please contact us derectly!

We could also make the other molds or die for screws, bolts and nuts for our customers all round the world. Please feel free to contact me to get more information!

Main material:

Reasonable choice of carbide material will greatly improve the service life of die

	Item	Co	Grain Size	Density	Hardness	TRS	Impact Strength	application
Medium-Grained		Co%	μm	g/cm²	HRA	Kgf/mm²	Kgf/m-cm²
	KG2	6.5%	2~3	14.90	90.5	320	0.28	Drawing die
	KG3	9%	2~3	14.61	89.3	340	0.52	Extrusion die
	KG5	12%	2~3	14.31	88.3	340	0.58	Extrusion die
	KG6	14%	2~3	14.12	87.3	320	0.65	Extrusion die
Coarse -Grained	ST6	15%	3~6	13.80	86.0	270	0.78	Stainless steel
	ST7	20%	2~6	13.40	85.3	270	0.80	Stainless steel
	EA65	18%	2~6	13.73	85.0	300	0.80	Carbon steel screw/cutting die
	VA80	20%	3~6	13.58	84.0	280	0.85	impact resistance
	VA90	22%	6~9	13.39	82.5	240	0.90	impact resistance
