Product Description

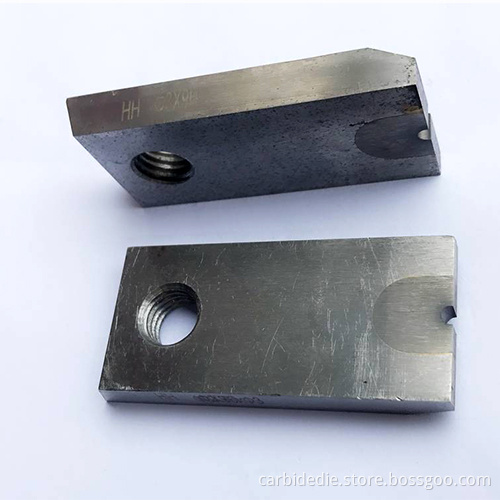

Screw Mold With Material of ST6 The Carbide Die Cutting Knife

Product introduction

Cutting knife for high quality raw materials

Cutting knife for the rich production experience

Cutting knife for advanced process equipment

Cutting knife for reliable quality assurance

Until the mid-1900s, most precision wear parts were made of steel. Even today, steel parts are still in use due to their affordability, as tungsten carbide parts tend to cost more up front. The performance benefits that tungsten carbide dies have to offer, however, easily justify their price point.

The primary advantage of tungsten carbide is its strength. Endurance Carbide’s tungsten carbide dies, which are notable for offering more satisfactory performance than their steel counterparts, tend to last significantly longer, too – even in extreme conditions. Thanks to this durability, our tungsten carbide dies require replacement much less often than typical steel dies, which not only reduces overall maintenance costs, but lessens machine downtime as well.

Henghui will according to your product demand suggest Cutting knife's tungsten steel grades, or according to your requirements.

Screw Mold With Material of ST6 The Carbide Die Cutting Knife

Features

100% quality guarantee

Various size for selection

Professional technical support

OEM & ODM are welcomed

Small order is acceptable

Factory service with competitive service in the market

Delivery in time

Flexible payment terms(T/T, western union, etc.)

Best after-sales service

Main material:

Reasonable choice of carbide material will greatly improve the service life of die

	Item	Co	Grain Size	Density	Hardness	TRS	Impact Strength	application
Medium-Grained		Co%	μm	g/cm²	HRA	Kgf/mm²	Kgf/m-cm²
	KG2	6.5%	2~3	14.90	90.5	320	0.28	Drawing die
	KG3	9%	2~3	14.61	89.3	340	0.52	Extrusion die
	KG5	12%	2~3	14.31	88.3	340	0.58	Extrusion die
	KG6	14%	2~3	14.12	87.3	320	0.65	Extrusion die
Coarse -Grained	ST6	15%	3~6	13.80	86.0	270	0.78	Stainless steel
	ST7	20%	2~6	13.40	85.3	270	0.80	Stainless steel
	EA65	18%	2~6	13.73	85.0	300	0.80	Carbon steel screw/cutting die
	VA80	20%	3~6	13.58	84.0	280	0.85	impact resistance
	VA90	22%	6~9	13.39	82.5	240	0.90	impact resistance
