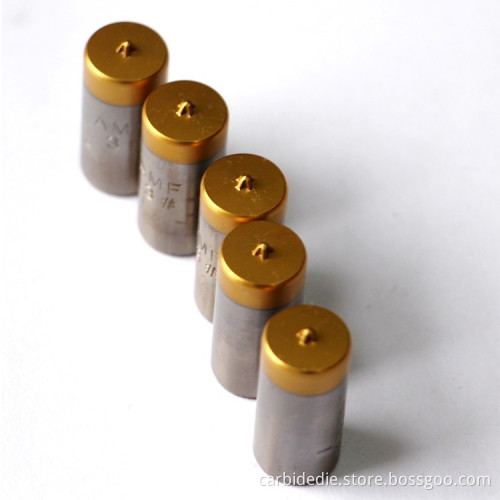

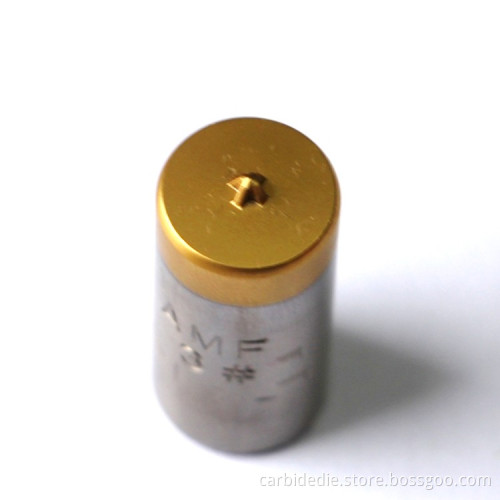

M2 TIN High Speed Steel Screw Second Punch

 Product introduction

Header punch standard:

JIS, ANSI, DIN, ISO, BS, GB, and NON-STANDARD .

The common head style:

Flat head, pan head , oval head , binding head , round head, truss head, button head, pf head, cheese head, fillister head and so on .

The common driver:

Phillips , Phillips and slot combination, slotted, hexagon, six-lobe (torx), six-lobe tamper , six-lobe/slot , pozidriv , square, square/slot , Phillips/square, triangle and so on .

The coating about the screw header punch:

Without coating,

With TIN coating-yellow coated,

With TILAN coating-black coated

The standard size:

12x25mm

14x25mm

18x25mm

23x25mm

The unit weight about the header punch:

12x25mm: 25g/pc

14x25mm: 30g/pc

18x25mm: 50g/pc

23x25mm: 80g/pc

Please specify the details of header punches as follows when you inquire or order:

1. The material of header punches you need or the material of screw you used;

2. The specification of standard you use, for examples: JIS, ANSI or DIN;

3. Screw Application: Machine Screw , Tapping Screw , Wood Screw or any others;

4. Head Style: Flat head , Pan head , Truss head , Binding head or any others;

5. Nominal Size: JIS-M20, M23; ANSI-#4, #8; DIN-M30, M35;

6. Recess Driver: Phillips , Slot, Phillips and Slot Combination, Pozi ect;

7. Dimension : 12x25, 14x25, 18x25, 23x25;

8. Coated : Plian , TIN Coated , TILAN Coated.

 Aftersales Service

    Please open it and check all the items as soon as possible when you receive the packages, if there is any damage or mistake, tell us please, we will exchange or replace for you within two weeks (don’t let it more than two weeks ).

   Customer satisfaction is the most important to us.  if you have any problem,  please feel free to contact with us!
