various kind of Head Trimming And Cutting Die

 Trimming Dies

Perfect tangent radius

Surface coating

± 0.005 mm tolerances.

Competitive prices.

One of the screw-formed tools, trimming die is used to form the head of screw. Square, hexagon and octangle are the common trimming die types.

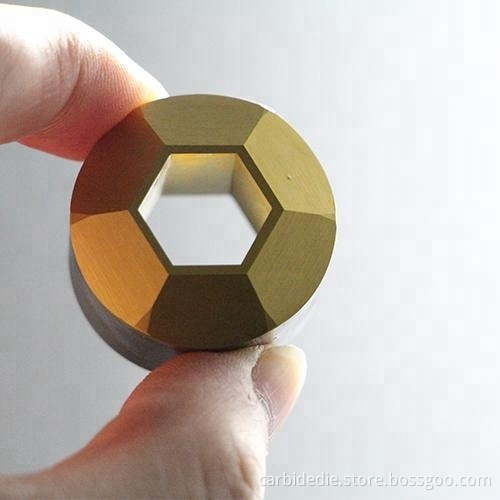

Trimming die is used to making hex head or square head bolt to form the head shape. There are many kinds of material for choice like M2 or M35 etc. In order to extend the lifetime, surface Tin/TiALN-coated is considerable.

   Trimming dies are promptly used in industry to trim the heads of bolts & screws of different shapes by removing distorted, undesirable angular part and sizes of high precision. It leads to create innovative product of perfect sizes and precision without having process of unnecessary resizing that wastes not only money but time also leaving behind more wastage. We are highly in making these kind of high tech dies of best performance with very low and competitive rate.

   The manufacture of cutting and trimming dies with different profiles is carried on high precision grinding centres, high-speed machining centres, wire and electrode EDM and CNC lathes for hard lathing (steel and carbide) based on Henghui’s technology. The technical department will help selecting the most suitable steel or carbide tool for the material to be cut.

 Advantage

Advice on carbide and steel grades for different applications.

Perfect tangent radius.

Mechanical Processing surfaces when it is geometrically possible.

Large number of shapes with very high geometric complexity.

Coating, the most suitable for the materials to be cut.

Mirror polishing before and after coating.

± 0.005 mm tolerances.

Competitive prices.

Function of Trimming Dies

Trimming die is a kind of stamping die with a certain height, diameter and shape. The trimming die is mainly used for trimming the screws or bolts to make the end face smooth and beautiful and facilitate the next progress.

After screws/bolts formed, the head of screws generally has an uneven flange, and the trimming is often performed.
