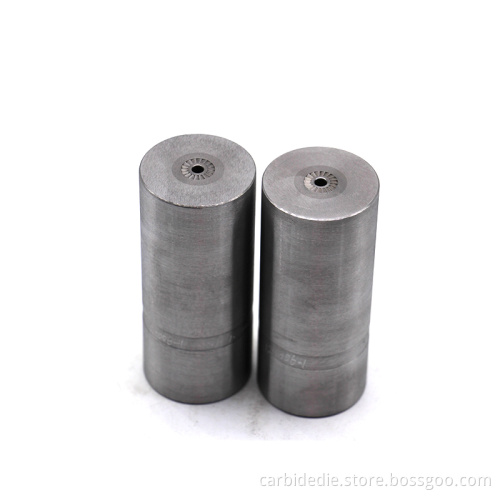

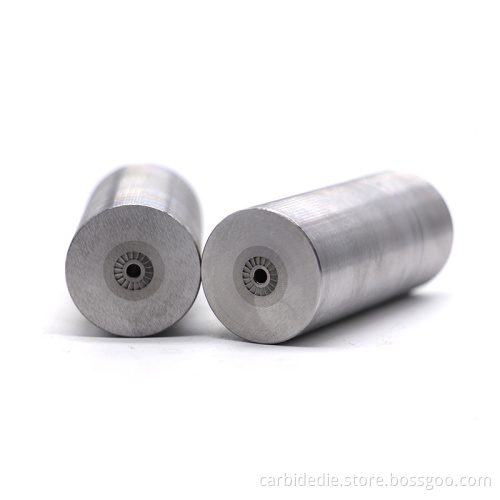

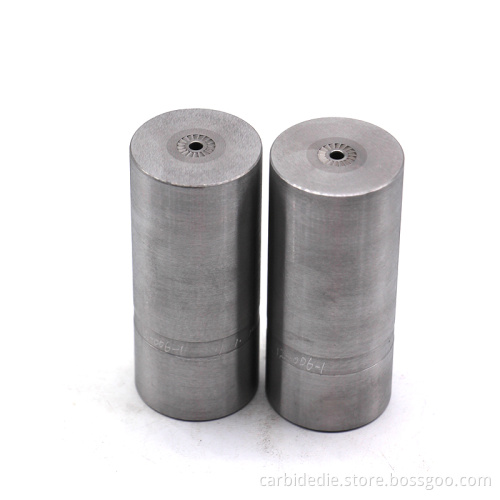

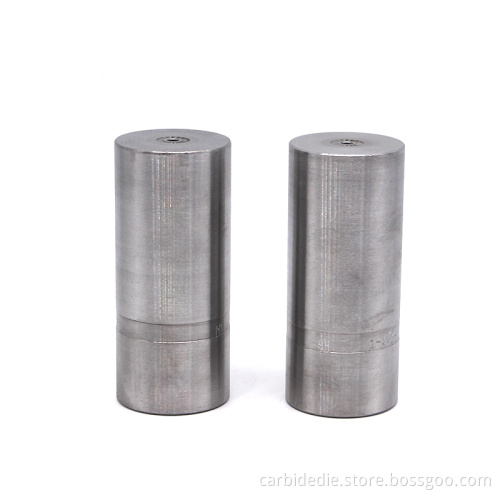

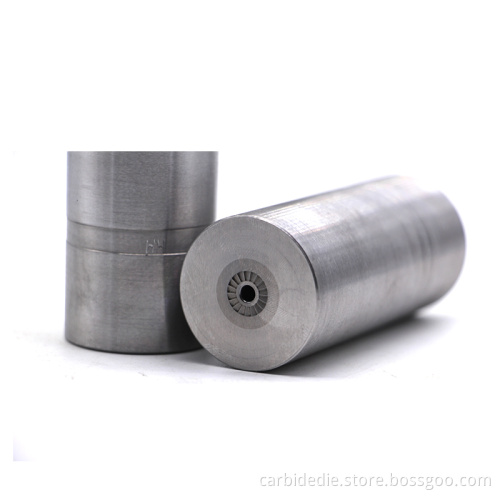

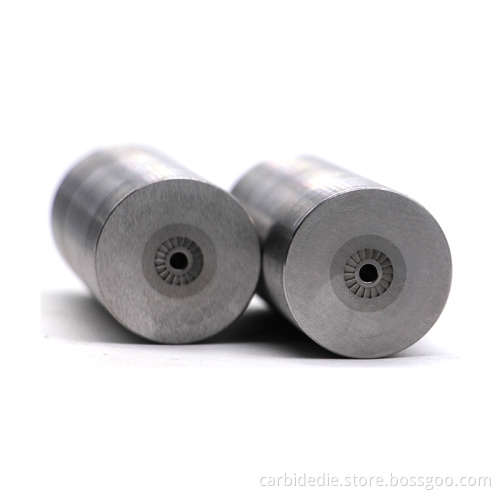

Tungsten Carbide Screw Main Dies for Serration Screw

Tungsten Carbide Screw Main Dies for Serration Screw

$20.00 - $50.00/Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Express, Ocean, Land, Air

Port:: Chongqing, Shengzhen, Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	200 Piece/Pieces per Month
Payment Type:	T/T,Cash
Incoterm:	FOB,CIF,EXW,CIP
HS Code:	8207209000
Transportation:	Express,Ocean,Land,Air
Port:	Chongqing,Shengzhen,Shanghai

Product Description

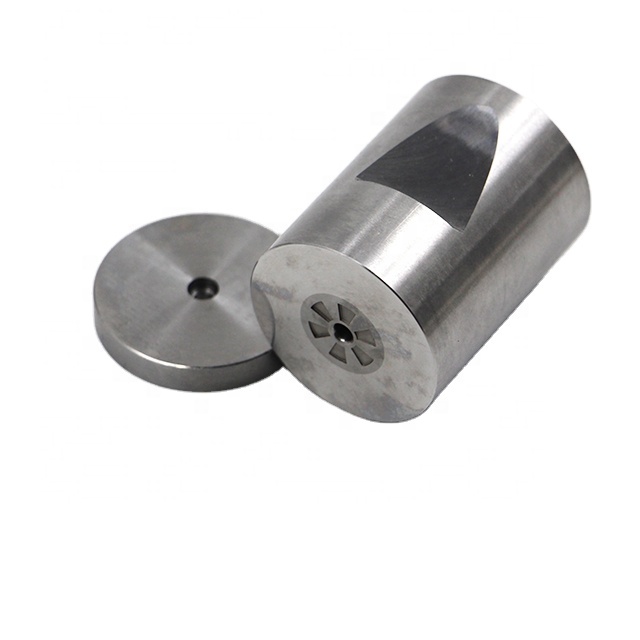

The main die is the main cavity in which the blank is produced. It is generally composed of mould steel (such as SKD11/SKD61) and tungsten carbide (cemented carbide). After the wire is cut off, it is sent to the main die cavity, and the punch strikes the material left outside the main die, causing it to deform into blank. According to the composition of the main die into ordinary mold and segmented hex die. Ordinary mold refers to the die is a whole, with the method of mechanical (such as wrench) can not be disassembled, used for forming relatively simple products. Segmented hex die refers to the combination of die, can be disassembled, used for molding screw head more complex products, each mold model is consistent with the corresponding equipment die base. Main die selection: the length of the main die, the length and diameter of tungsten carbide of the main die should be selected according to the specification of the screw. The length of the main die tungsten carbide shall be longer than the length of the screw, the outer diameter of the tungsten carbide shall be larger than the diameter of the screw head, and the R Angle of the main die shall meet the requirements of the drawing.

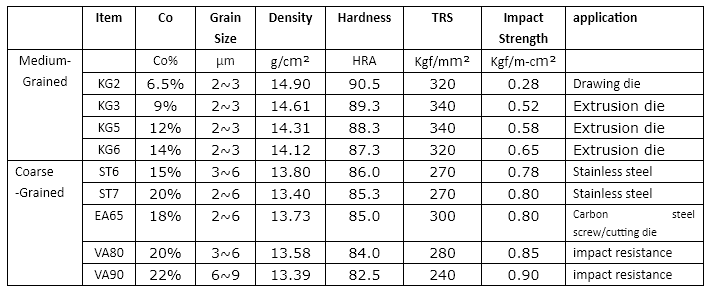

Main material:
Reasonable choice of carbide material will greatly improve the service life of die

We supply for customer including:
Cold Heading Die
Carbide Punches And Dies
Tungsten Carbide Die
Cold Forging Die
HSS Punches
Punch Pin
Second Punch
Second Punch Case
Carbide Punch Pin
Trimming Die
Thread Rolling Die
Nut Forming Dies
Die Cutting Knife
Shear Die
Drawing Die
Extrusion Die
Carbide Die
Drill Point Die
Hex Punch
First Punch Die
First Punch Case
