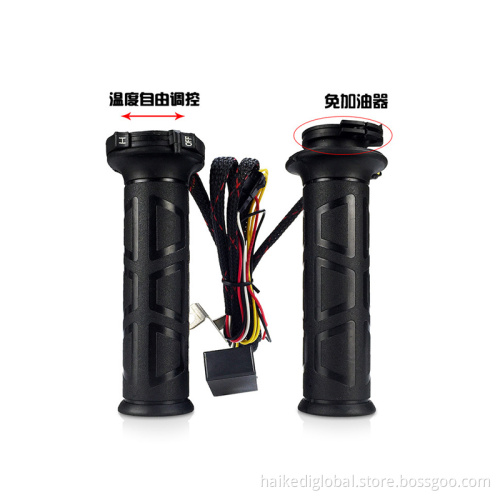

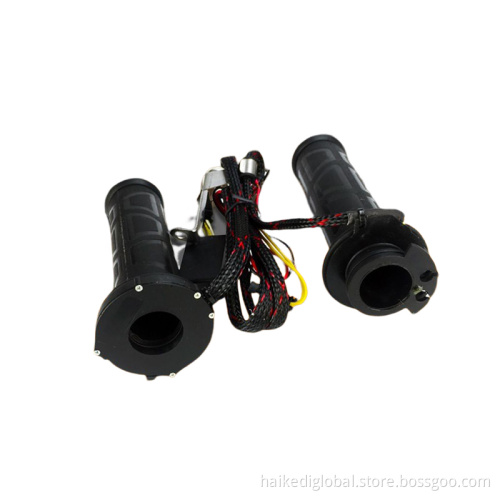

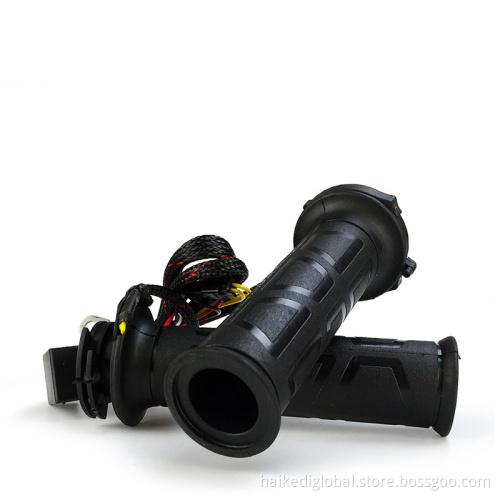

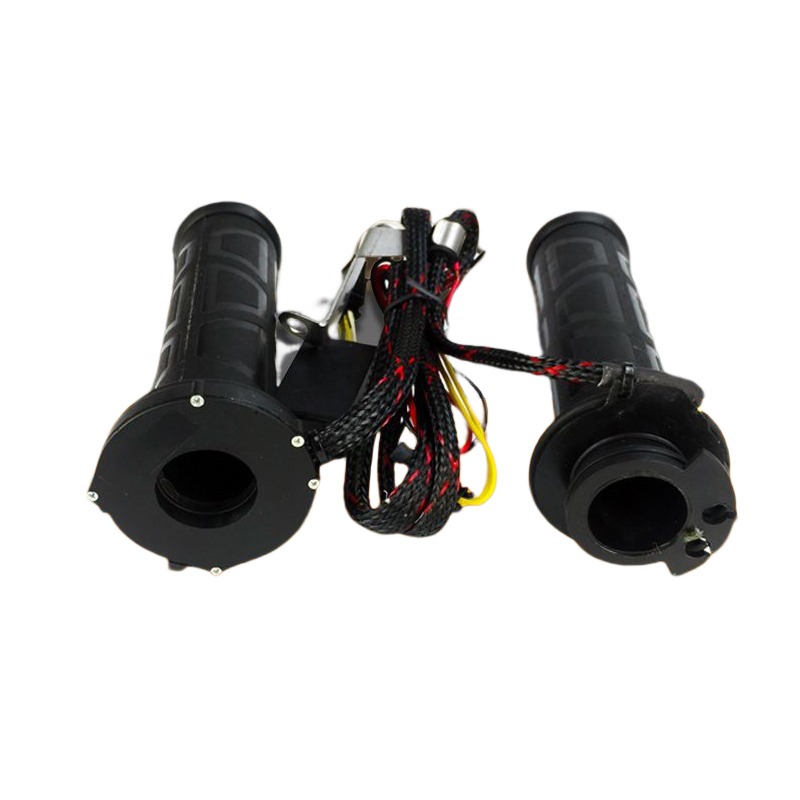

Motorcycle energy-saving heating handle

Installation method of Cover for motorcycle self-heating handlebars: 1. First remove the two screws of the switch lock cover, and then remove the two fixing screws of the headlamp assembly. Remove the headlamp back cover and two screws of the headlamp switch. 2. Loosen the screws of the balance weight. 3. It can be taken down by gently shaking, just like left and right. Take out the throttle handle of the throttle accessories, and then pull out the rubber sleeve of the left handlebar. 4. Some heating handles need to be treated to open the enclosure at the top, and some handle sleeves can be directly installed without modification. 5. Install the one on the right of the electric heating handle sleeve, and remember that the accelerator cable must be installed in the correct hanging hole. 6. Next, install the motorcycle vehicle accessories on the left side. After they are in place, tighten the set screws, hex socket screws, and then install the left and right balance weights. Next, find a turn signal lamp or multimeter, and find the 12V power supply outlet of the switch lock at the plug of the switch lock. This cable must be energized after the switch lock is turned on. 7. Connect the positive wire of the electric heating handle sleeve to the 12V outlet wire of the switch lock, and the other one is the ground wire. Connect it to any ground wire on the line. Then power on and try it. If the wiring is normal, the power indicator light on the right handlebar will light up. 8. Replace the fixing screws of the headlamp assembly and the switch lock cover, and fasten the headlamp backplane. be accomplished!
