VR series Vacuum Pump System
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Certificate: | ISO9001 |
Product Description
Product Description

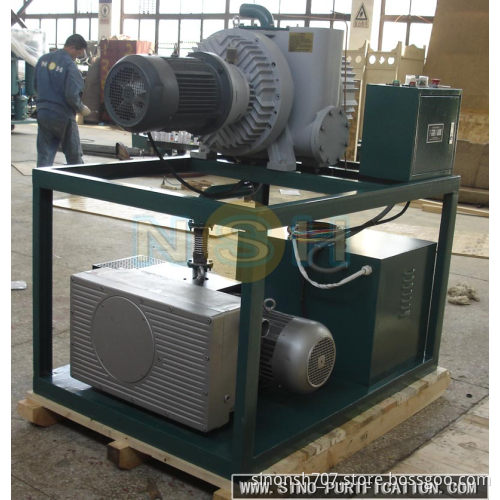

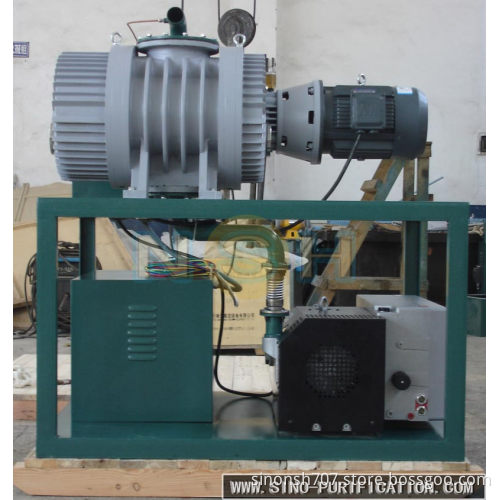

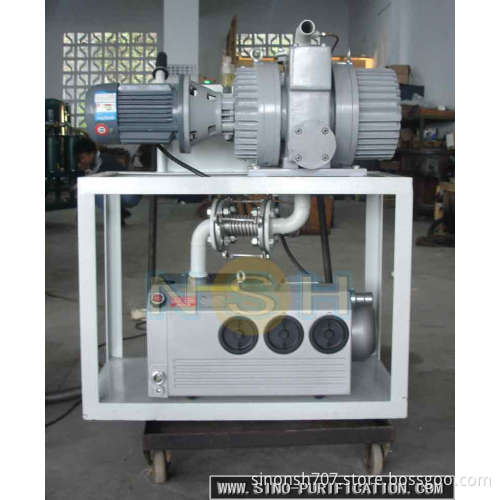

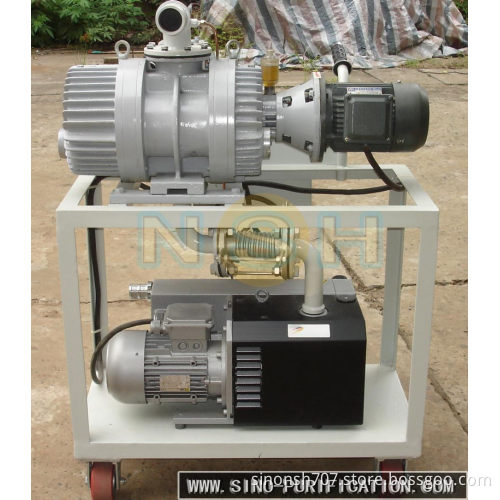

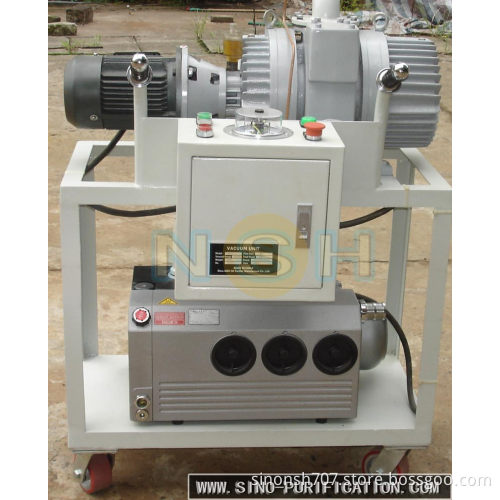

| VR series vacuum pump systems described here have been designed for rough and medium vacuum operation, i.e. for the pressure range from atmospheric pressure down to 10-4 mbar (7.5 x 10-5 Torr). VR pump systems consist of a combination of individual pumps whereby Roots vacuum pumps are employed on the intake side. Further compression to atmospheric pressure may be performed either by oil-sealed or dry-compressing vacuum pumps, liquid ring pumps or Roots vacuum pumps with pre-inlet cooling. All combinations may be equipped at suitable places with condensers. | |||||||
| Technical Specifications | |||||||
| Item | Unit | VR-30 | VR-70 | VR-150 | VR-300 | VR-600 | |
| Capacity | M3/H | 100 | 250 | 500 | 1000 | 2000 | |
| Maximum Vacuum Range | Pa | -0.098 | |||||
| Voltage | V | 380V/50Hz | |||||
| Working Noise | dB | ≤ 80 | |||||
| Total Power | KW | 3 | 3 | 5 | 7 | 8 | |
| Inlet(Outlet) Diameter | Mm | DN32 | DN32 | DN40 | DN40 | DN50 | |
| Weight | Kg | 450 | 550 | 600 | 900 | 950 | |
| Dimension | Length | mm | 900 | 900 | 1000 | 1200 | 1500 |
| Width | mm | 800 | 800 | 800 | 800 | 1000 | |
| Height | mm | 1200 | 1200 | 1200 | 1200 | 1200 | |
