Basic Info

Place of Origin:	China
Certificate:	ISO9001

Product Description

Application

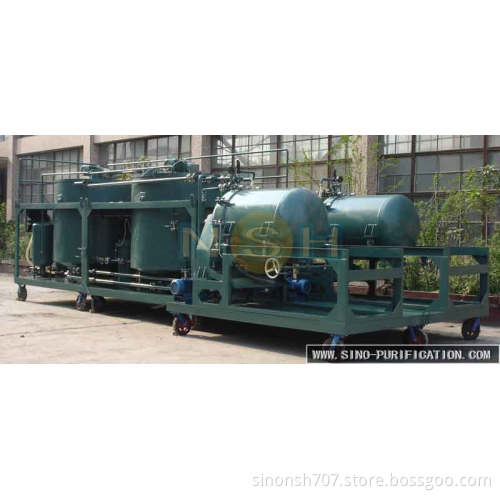

NSH GER Used Oil Regeneration System is particularly suitable to regenerate used internal-combustion engine oil including diesel engine oil, gasoline engine oil and used hydraulic oil, other used machinerys lubrication oil. GER series are able to effectively remove colloid, oxid, acid, pitch, particles, impurities, water, gas in the used oil. Specially, GER can restore the color of used oil and remove the scent rapidly.

Edges of GER

Two main filtering systems in the GER which can ensure the GER works continuously by batch.

Environmentally friendly, no acid used during operation.

The filters in filtering systems are made of stainless steel. It can extend lifetime

of filtering systems. Traditional filter is made of fabric or paper which need to be replaced frequently. So using stainless steel filter can largely decrease operation cost for customers.

Exhaust gas removing systems can remove exhaust gas quickly and efficiently and make operation more environmentally friendly.

Heat preservation material which can keep heating high efficient. Reducing operation cost.

Design according to different customers needs including Turnkey Project.

Purify blended oils.

Low operation cost.

Low maintenance and replacement expenses.

High regeneration rate.

Automatic reverse-washing system will extend the lifetime of filters and improve the performance of the filters.

High performance security system including pressure protection device and automatic temperature controller makes purifier operate safely.

Small size, light weight, low noise.

Technical Specifications:

Item	Unit	GER-1	GER-2	GER-3	GER-4	GER-5		GER Product Line
Treatment Capacity	L/8 -10hrs	2000	4000	6000	8000	10000		Above 10000
Regeneration Rate	%	70-90%
Working Pressure	MPa	-0.095-0.4
Temperature	Celsius degree	60-200
Working Noise	dB(A)	≤90
Heating Power	KW
Inlet/Outlet Pipe Diameter	Mm	Φ42
Weight	kg	6000	6700	7200	8000		8500
