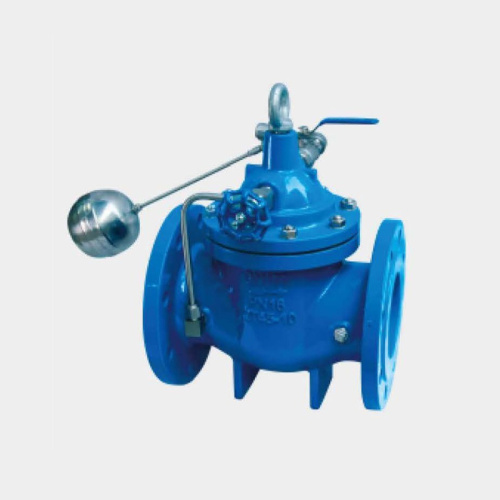

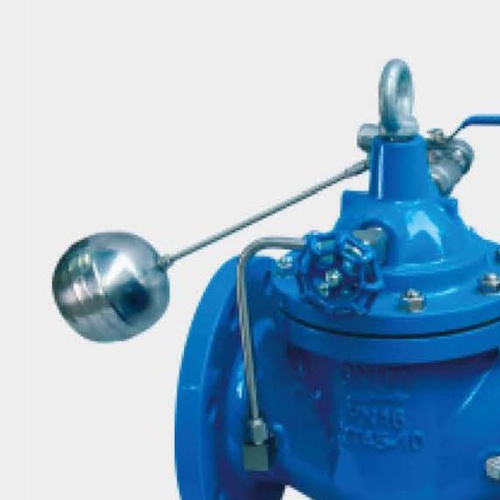

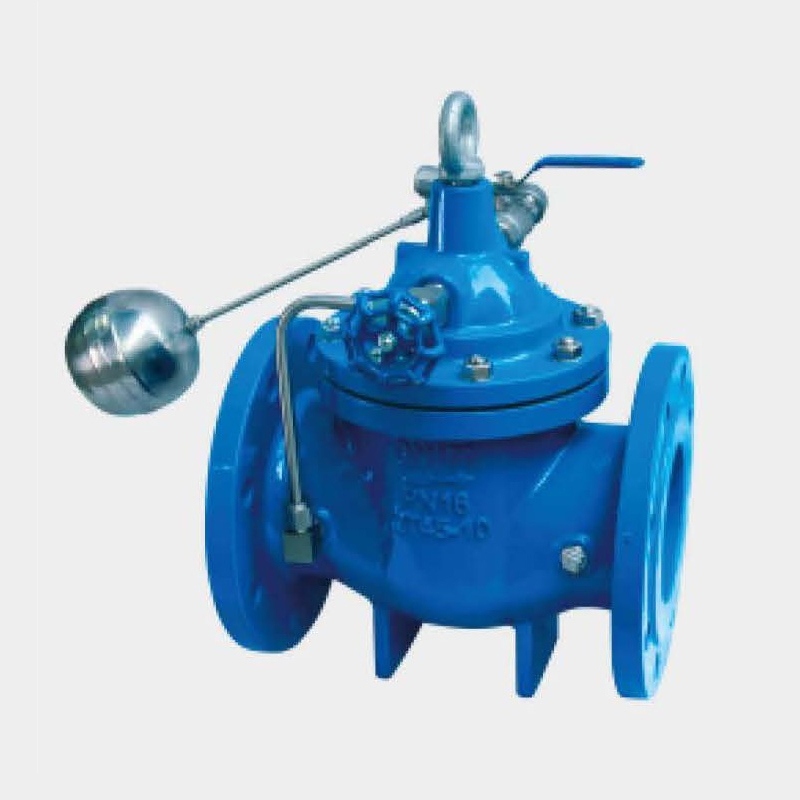

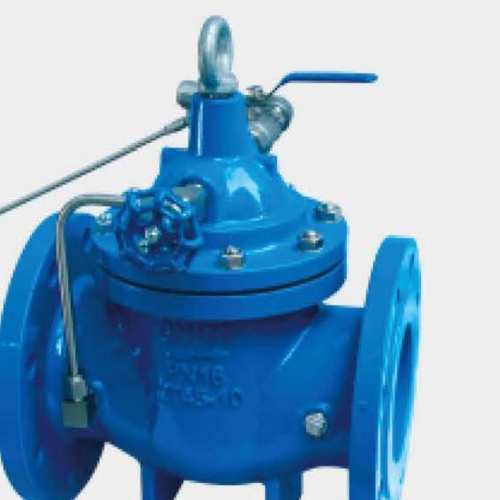

Remote controlled float valve
- Transportation:
- Ocean, Land
- Port:
- chongqing
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Payment Type: | T/T |
| Incoterm: | FOB |
| Transportation: | Ocean,Land |
| Port: | chongqing,, |
100X diaphragm type remote control float valve is a hydraulic control valve that controls the liquid level of the pool. The water pressure upstream of the pipe is used to push the valve disc up, open the valve, and supply water to the pool; when the liquid level in the pool reaches the required height, the float rises under the action of buoyancy, thus closing the valve and cutting off the discharge of the pipe to the pool. When the pool discharges water, the float falls and opens the upper chamber for circulation. At this time, the upstream pressure causes the valve disc to rise again, opening the valve so that the pipe can continue to supply water to the pool. This valve has rapid float movement, high liquid level control accuracy, flexibility and durability. The water level is not disturbed by water pressure and it closes tightly without leakage.
The 100X remote control float valve consists of a main valve, a needle valve, a ball valve, a float valve, a micro filter, etc. and forms a hydraulic control takeover system. After setting, the liquid level is automatically controlled.
When the pipeline supplies water from the water inlet end, since the needle valve, ball valve, and float valve are normally open, the water enters the pool through the micro filter, needle valve, control room, ball valve, and float valve. At this time, no pressure is formed in the control room, and the main The valve opens and the water tower (pool) supplies water. When the water surface of the water tower (pool) rises to the set height, the float floats and closes the float valve. The water pressure in the control room increases, pushing the main valve to close, and the water supply stops. When the water surface drops, the float valve reopens, the water pressure in the control room drops, and the main valve opens again to continue water supply and maintain the set height of the liquid level.
