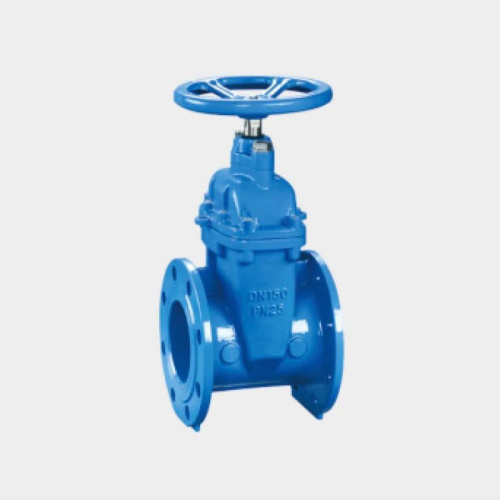

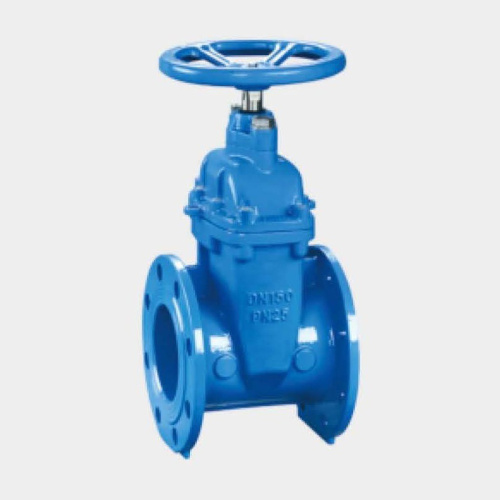

Concealed stem elastic seat seal gate valve

Concealed stem elastic seat seal gate valve

Get Latest Price

Transportation:: Ocean, Land

Port:: chongqing

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	T/T
Incoterm:	FOB
Transportation:	Ocean,Land
Port:	chongqing,,

Product Description

Gate valve movement mode:

When the gate valve in the universal valve is closed, the sealing surface can be sealed only by the medium pressure, that is, the sealing surface of the gate plate is pressed to the valve seat on the other side by the medium pressure alone to ensure the sealing surface sealing, which is self-sealing. Most gate valves adopt forced sealing, that is, when the valve is closed, external force must be relied on to force the gate plate to the valve seat to ensure the sealing performance of the sealing surface.

Concealed Rod Elastic Seated Gate Valve

Movement mode: The gate plate of the gate valve moves linearly with the valve stem, which is also called a rising stem gate valve. Usually there is a trapezoidal thread on the lift rod. Through the nut on the top of the valve and the guide groove on the valve body, the rotating motion is changed into linear motion, that is, the operating torque is changed into the operating thrust. When opening a special valve, when the lift height of the gate is equal to 1:1 times the diameter of the valve, the fluid channel is completely unobstructed, but during operation, this position cannot be monitored. In actual use, the top of the valve stem is used as a mark, that is, the position that does not open, as its fully open position. In order to consider the locking phenomenon due to temperature changes, the valve is usually opened to the top position and then retracted 1/2-1 turn as the fully open valve position. Therefore, the fully open position of the valve is determined by the position of the gate plate (i.e. stroke). Some gate valve stem nuts are set on the gate plate, and the rotation of the handwheel drives the valve stem to rotate, thereby lifting the gate plate. This kind of valve is called Rotating rod gate valve or hidden rod gate valve.
