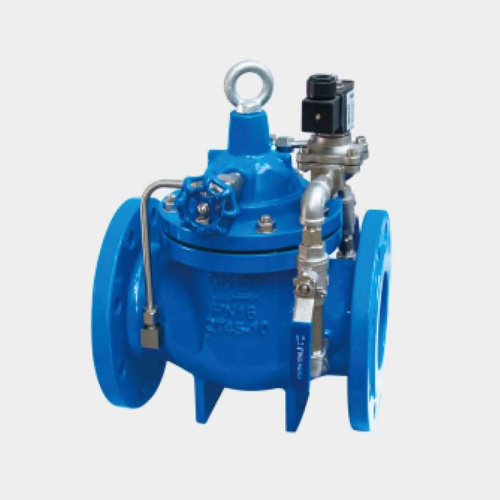

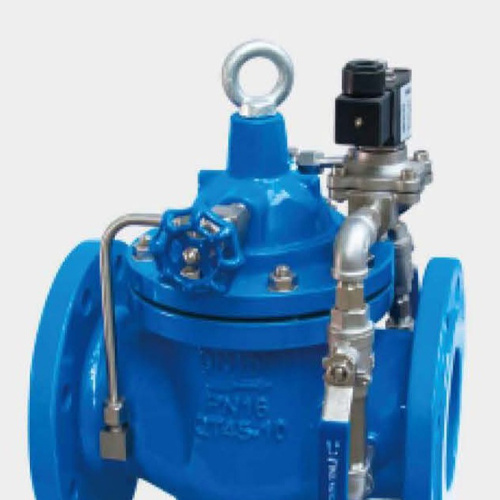

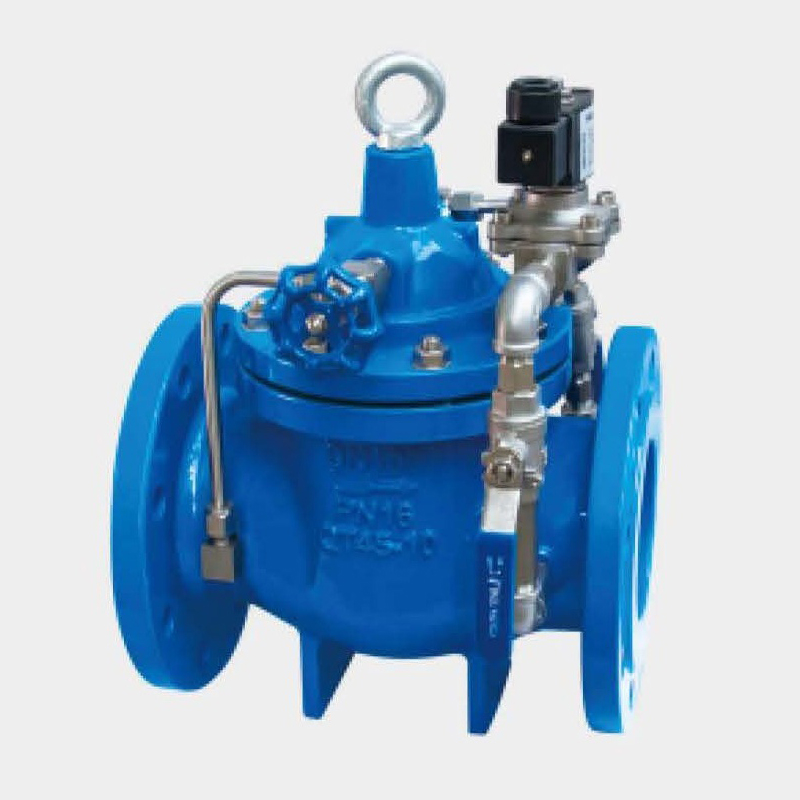

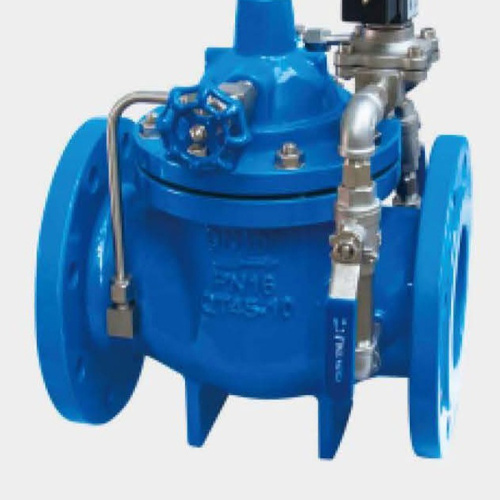

Electric hydraulic control valve

600X hydraulic electric control valve consists of main valve, solenoid pilot valve, needle valve, ball valve, micro filter and pressure gauge to form a hydraulic control take-over system. Through the solenoid pilot valve, the valve can be opened and closed remotely. After installing additional devices, the speed of opening and closing can be controlled. When the valve supplies water from the inlet end, the water flows through the needle valve and enters the main valve control room. When the solenoid pilot valve is opened, the water in the control room flows out through the solenoid pilot valve and the ball valve. The opening of the ball valve is greater than the opening of the needle valve, the pressure in the main valve control chamber is very low, and the main valve is in a fully open state. When the solenoid pilot valve is closed, the water in the main valve control chamber cannot flow out, and the pressure in the control chamber increases. Push the diaphragm to close the main valve. This product uses a pilot valve to control the opening and closing of the valve to save energy. It can replace other large electric valves and is widely used in water supply pipe network systems such as high-rise buildings and living areas as well as urban water supply projects.

When choosing a universal valve, we need to consider all aspects. Although various hydraulic and electric control valves seem to be similar, some structural differences can still be clearly seen in actual applications.
