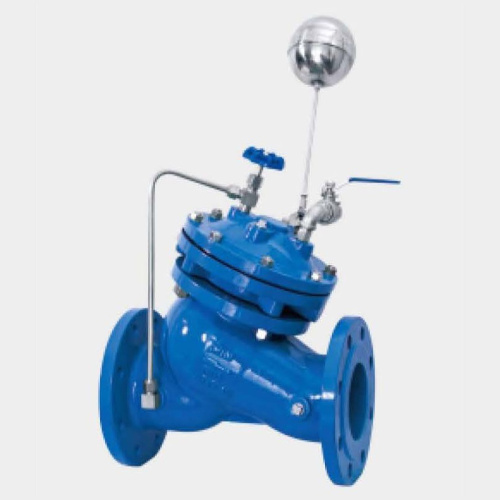

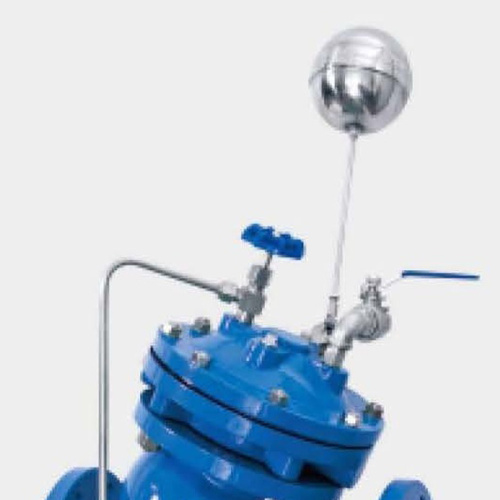

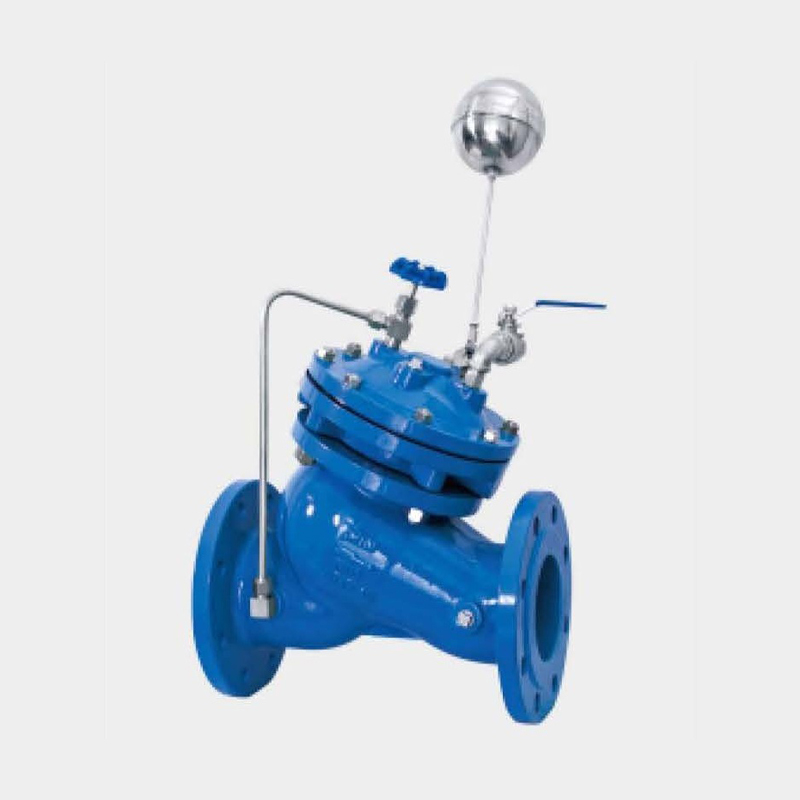

Diaphragm type remote control float valve

F745X diaphragm remote control float valve is a water-operated universal valve with multiple functions. Mainly installed at the water inlet of a pool or elevated water tower. When the water level reaches the set height, the high valve is controlled by the float pilot valve to close the water inlet and stop water supply; when the water level drops, the main valve is controlled by the float pilot valve to open the inlet. The water inlet fills the pool with water to realize automatic water replenishment. The liquid level control is accurate and is not affected by water pressure; the diaphragm-type remote control float valve can be installed at any position according to the height of the pool and the use space. It is easy to maintain, debug and inspect, has reliable sealing and long service life. Diaphragm valves have reliable performance, high strength and balanced action, and are suitable for pipelines with diameters below 450.

The F745X diaphragm remote control float valve is installed on the inlet end pipeline of water towers and pools to complete the function of maintaining the specified height of the liquid level in water towers and pools. F745X remote control float valve is widely used for automatic control of liquid level in water towers, pools and other facilities in water supply pipe network systems such as high-rise buildings and living areas.

F745X diaphragm remote control float valve consists of a main valve, a float valve and a connecting system. The main valve body adopts a full-channel, direct-flow, streamlined design, and adopts two types of structures: diaphragm type or piston type. The takeover system consists of float valve, ball valve and takeover.
