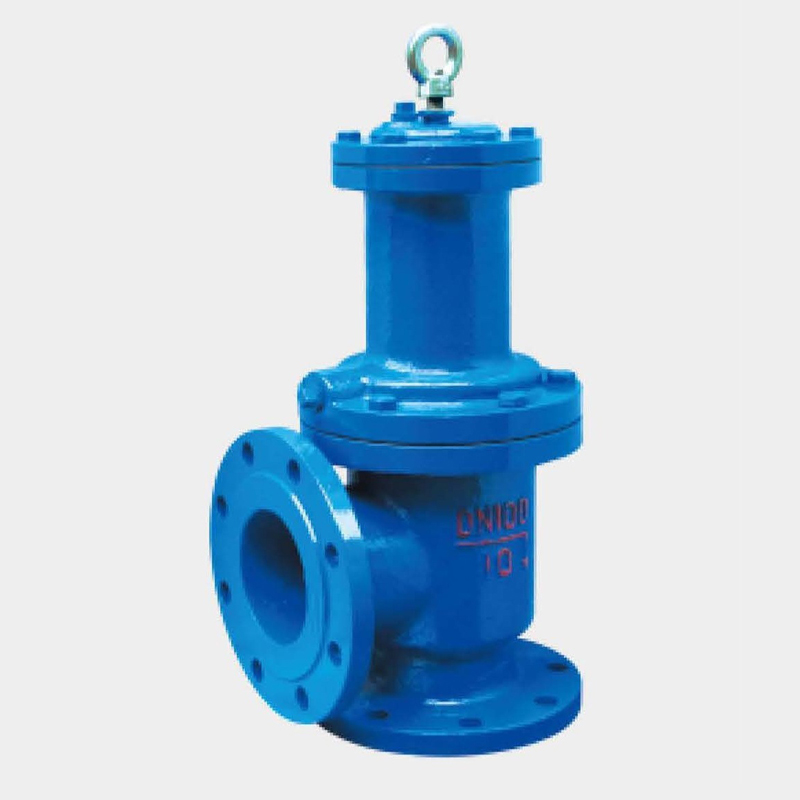

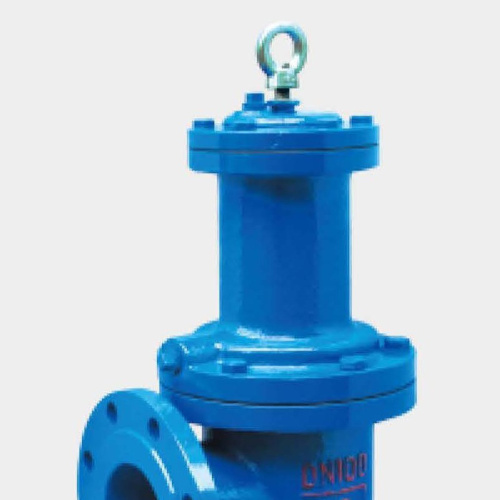

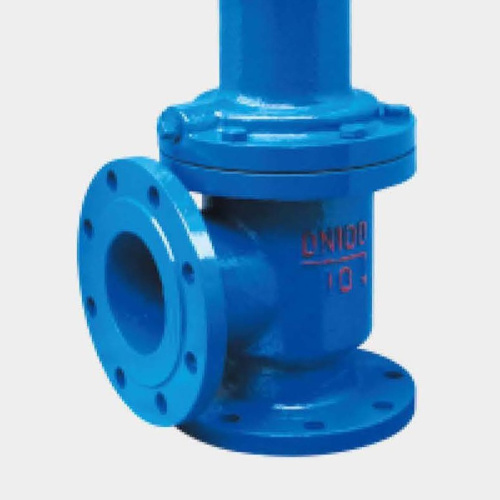

Pneumatic angle type quick opening mud drain valve

JM744X hydraulic and pneumatic JM644X diaphragm type quick-opening mud valve uses a dual-cavity diaphragm transmission mechanism instead of a piston mechanism, which has no motion wear and long life. The interior of the diaphragm is made of folded composite material, which greatly increases the elongation rate of the diaphragm and extends the service life of the diaphragm. During the opening and closing process of the valve, it is not easily broken and can withstand higher pressure. It adopts electric two-position four-way directional valve or manual two-position four-way or directional valve centralized control, which is easy to operate and the valve can be opened and closed flexibly. This special valve is mainly installed outside the bottom wall of the sedimentation tank to remove sediment and dirt from the bottom of the tank.

Angle diaphragm quick-opening mud valve is mainly composed of valve body, valve disc, diaphragm, valve stem and opening and closing mechanism. Among them, the valve body is the main structure of the entire valve, used to support and fix other components; the valve disc is a key component to control the entry and discharge of mud or sewage; the diaphragm is a replaceable seal that can effectively prevent sewage or mud leakage; the valve stem plays the role of connecting the valve disc and the opening and closing mechanism; the opening and closing mechanism is used to control the opening and closing of the valve disc.
