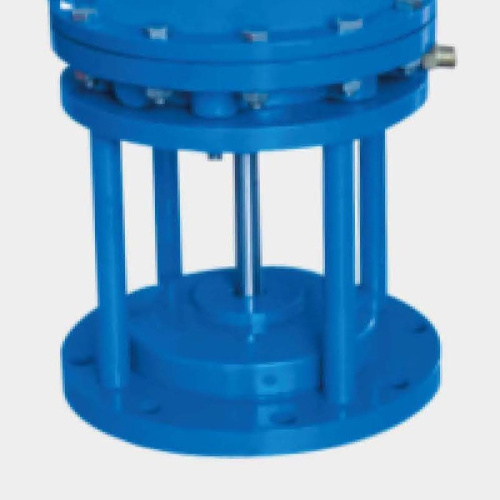

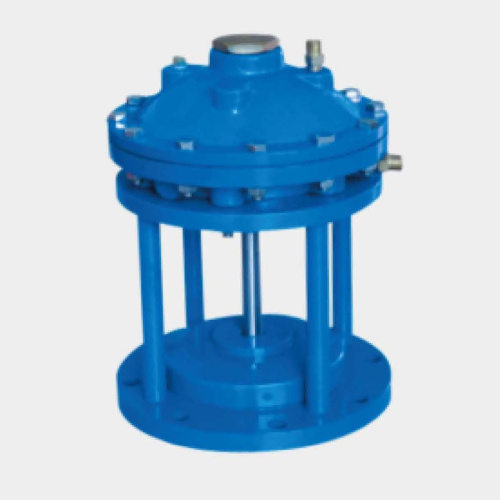

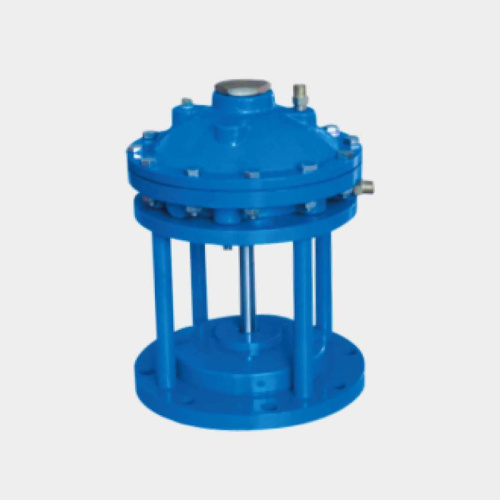

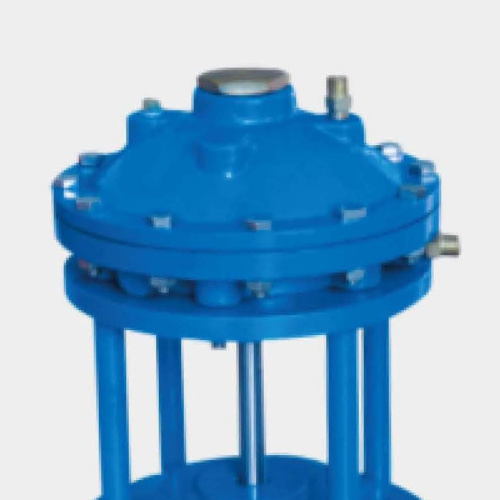

Diaphragm bottom mud discharge valve

JM742X diaphragm type pool bottom mud discharge valve is composed of a main valve, a two-position four-way directional valve, a valve disc and other parts. When the two-position four-way directional valve is in the one position, water enters the middle cavity of the main valve, and the upper cavity is connected to the atmosphere. The diaphragm drives the valve disc to rise under the pressure of the water, and the main valve opens. The sediment and other dirt at the bottom of the pool are removed. Start discharging; when the two-position four-way is in the two-state position, the water in the middle cavity of the main valve is discharged to the pool, and the upper cavity is filled with water. The main valve is closed to stop the discharge of sediment. This special valve is installed outside the bottom wall of various sedimentation tanks to remove sediment and dirt from the bottom of the tank. The opening and closing action is controlled by the reversing valve, with quick response and accurate closing.

Quick opening and closing: Due to the design of the valve disc and diaphragm, the angle diaphragm quick-opening mud valve can open and close quickly, which is beneficial to improving the efficiency of the entire system. High sealing performance: The close contact and elasticity of the diaphragm give the valve excellent sealing performance, which can effectively prevent the leakage of sewage or mud. Corrosion resistance: The main components of the valve such as valve body, valve disc, etc. are usually made of highly corrosion-resistant materials and can be adapted to various corrosive media. Easy to maintain: The design of the valve takes maintenance needs into consideration, such as replaceable diaphragms, etc., making maintenance work simple and easy.
