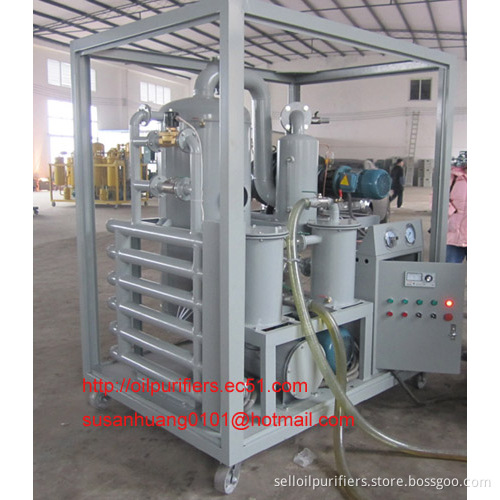

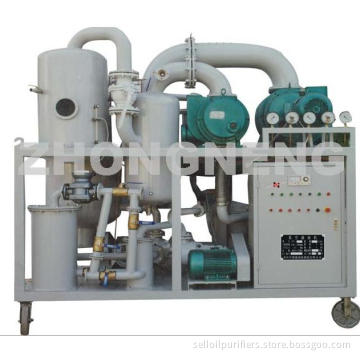

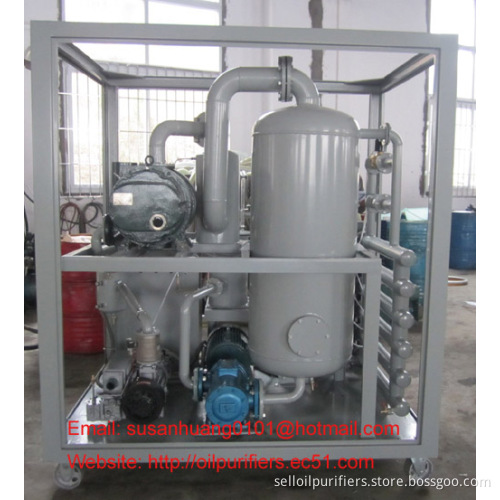

Double-stage high-efficiency vacuum Insulation oil purifier, dielectric oil filtration, oil purification, oil treatment plant

 Series ZYD Double-stage vacuum transformer oil purifier can remove the water, gas and impurities in insulation oil high-efficiently, increasing the pressure force and quality of oil, make the oil limiting voltage-withstand value much higher and make sure the electric device running safely. The machine is mainly used for electric power department and industries to deal with various oils such as transformer oil, mutual oil, switch oil, dielectric oil and so on. It also can be used for filtration of more than 110KV substation live line work onsite. Meanwhile, as the bridge-type vacuum linking system, Series ZYD oil purifier can be used as independent vacuum source with functions of vacuum drying and vacuum oiling.


Technology and advantages of this model Series ZYD Double-stage vacuum Insulating oil purifier, Transformer oil filtration:
1: It is for treating various insulating oil, including transformer oil, mutual inductor oil, switch oil.
2: It is widely applied in large scale manufacturing factory, power station and other related industrial fields which will use transformers, especially for over 110 KV transformers.
3: Double stage vacuum system, adopt international advanced duplex stereo-evaparation technology and UK G technology to eliminate the trace water in insulation oil and recover its breakdown voltage greatly.
4: Adopt Germany's 3 UG phase replay, can make the machine working efficaciously and safely at any situations, such as power off, lack of phase, wrong phase position, etc.
5: Equipped with advanced dielectric condensation devices for greatly prolong the oil purifier service life.
6: A trinity of interlocked preventive device is applied for avoid the machine being damanged from any accident automatically.
7: It also can be used as a separate vacuum system for dehydrating oil only, don't need to run all process and can save time and consumption for different request on oil filtration.
8: It can work onsite with the transformer running together.
9: A PLC system can be attached as per customer's requirement.

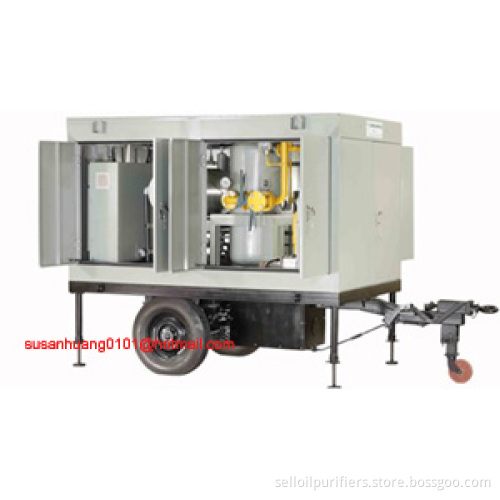

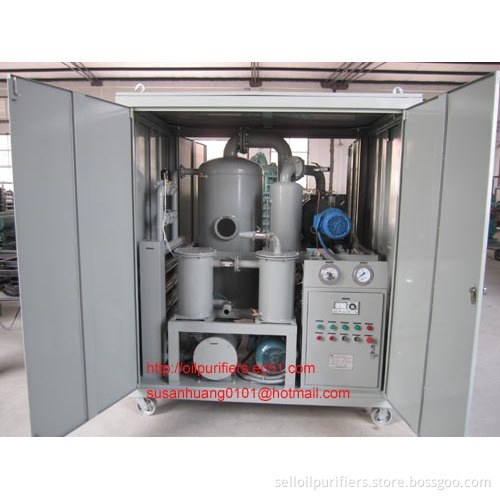

10: It can be moved easily with equipped steel wheels, it also can be designed for different structure of fully enclosed type and fully enclosed + trailer type for the purpose of ourdoor use and indoor use.
11. Various color of this model can be produced just as customer's favor.
