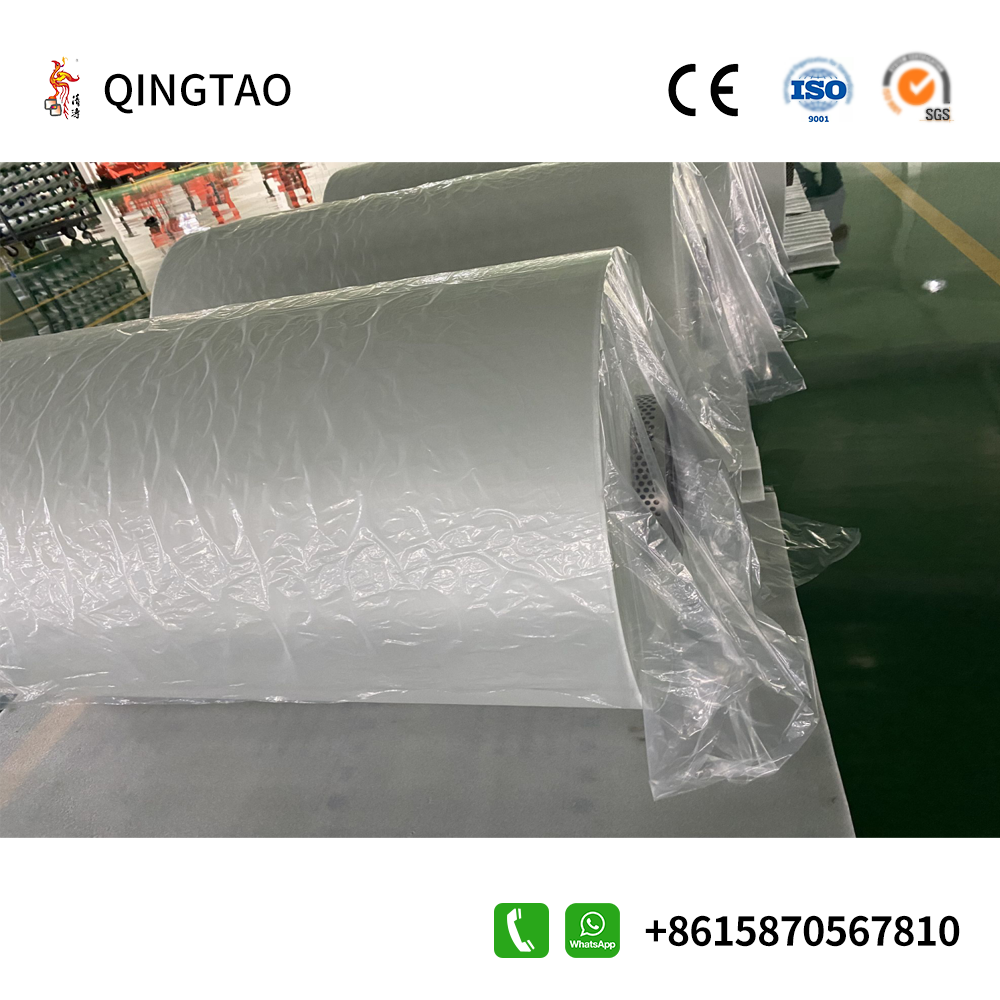

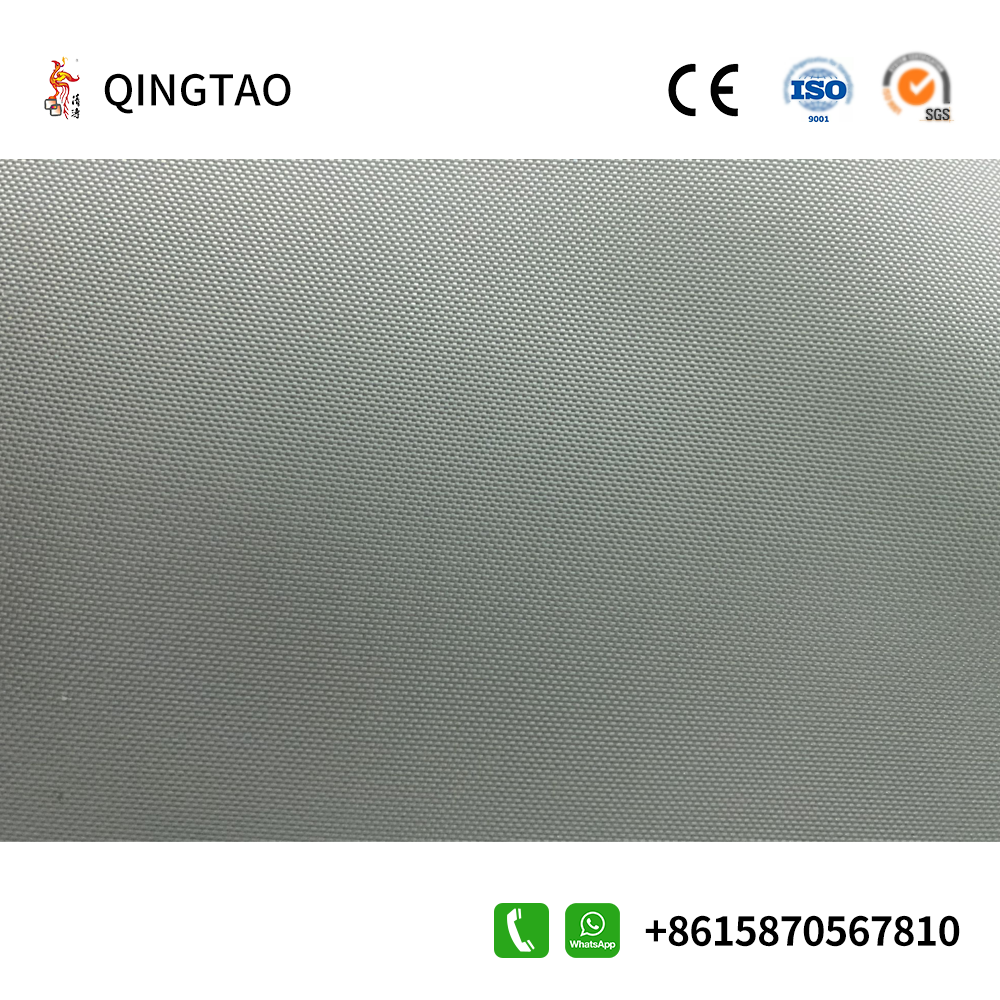

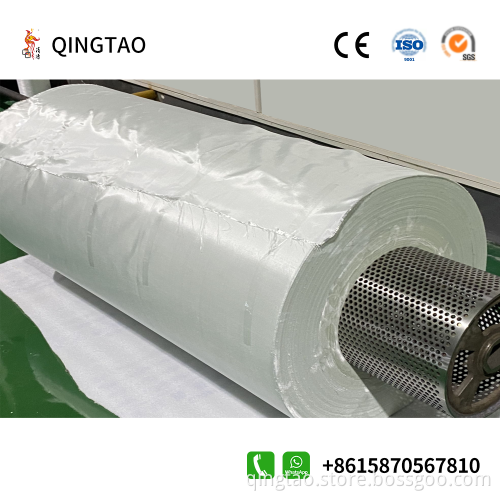

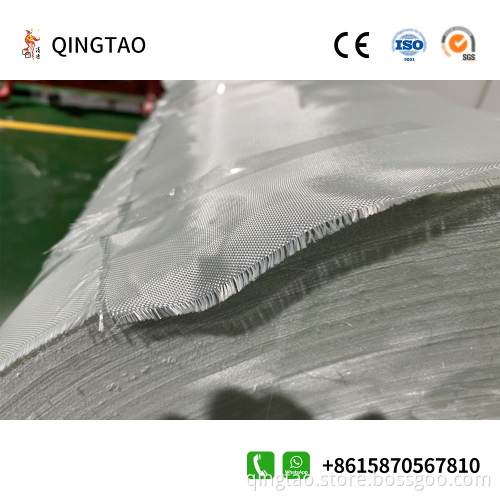

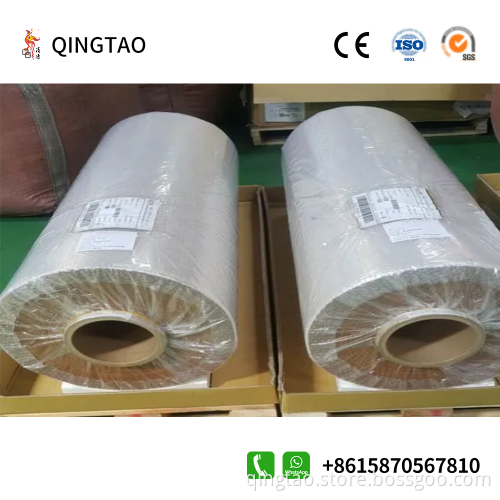

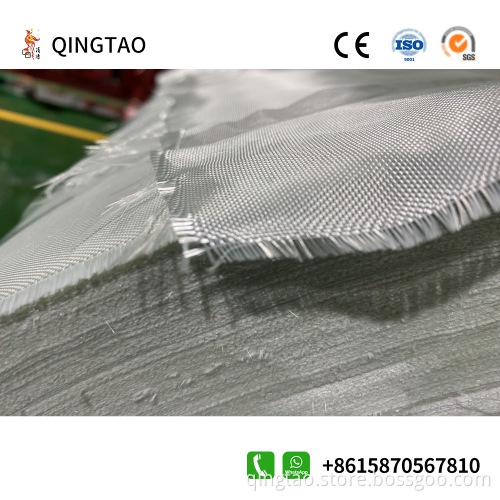

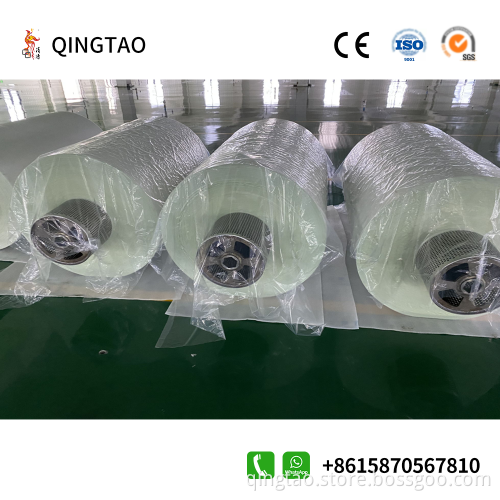

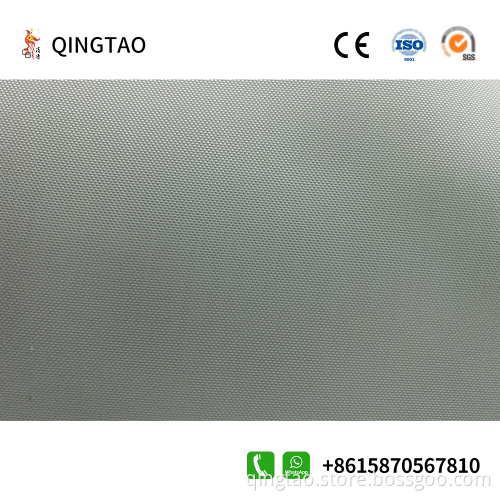

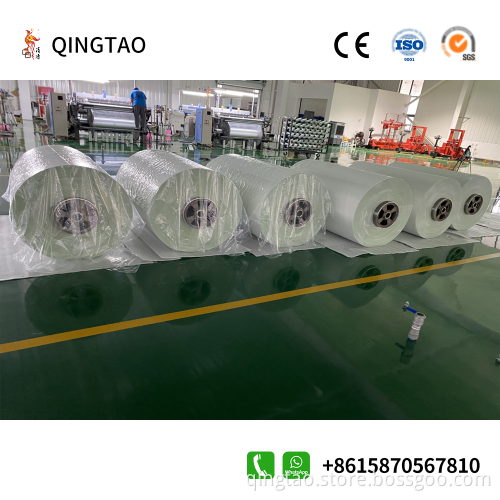

Electronic insulation material E-GLASS/Electronic cloth
-
$1.001-999 Square Meter
-
$0.751000-599999 Square Meter
-
$0.28≥600000 Square Meter
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Shen Zhen Port, Qingdao, Dalian Port, Chongqing, Shanghai, Ningbo, Yiwu, Guangzhou Port, etc.
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 5000㎡/Daily |
| Supply Ability: | 5000㎡/Daily |
| Payment Type: | T/T,Paypal,Alibaba,West Union,Alipay,etc |
| Incoterm: | CIF,FOB,EXW,DDP,DDU,Express Delivery |
| Certificate: | ISO,CE,Test Report,etc. |
| HS Code: | 7019909990 |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Shen Zhen Port,Qingdao,Dalian Port,Chongqing,Shanghai,Ningbo,Yiwu,Guangzhou Port,etc. |
Electronic grade (Industrial Textiles) glass fiber cloth has good insulation,Strong heat immunity (Anti Corrosive).The fine of corrosion resistance,High mechanical (basalt stone) strength,Applied to electronics,Transportation and construction.It is an inorganic of nonmetallic material with excellent performance,Wide variety.The advantages are good insulation,Strong heat resistance,Good corrosion
resistance,High mechanism strength.
The product has the following features:
▶ It is used between-196 ℃ at low temperature and 300℃ at high temperature.It has weather strength.
▶ Non adhesive,not easy to adhere to any (Electronic Fabrics) substance.
▶ Low (Fireproof Cloth) friction coefficient,is the choice of smooth oil-free self.
▶ The light transmittance(Anti Corrosive) is (electronic cloth) 6～13%,with high isolation performance,anti ultraviolet,anti-static.
▶ High strength and good mechanical properties,drug (Aluminum Foil ) immunity.
1.27*1000
Customizable
SPECIFICATION
Item
Texture
Yarn
(N/inch)
Warp x Weft
Warp
Weft
106
D900×D900
56×56
24±2
0.030±0.005
550℃
1035
D900×D900
66×68
29±2
0.030±0.005
550℃
1067
D900×D900
71×69
30±2
0.030±0.005
550℃
1078
D450×D450
55×53
48±2
0.045±0.008
550℃
1080
Plain
D450×D450
60×47
48±2
0.045±0.008
550℃
1*100
4.68
1086
D450×D450
60×58
52±2
0.050±0.008
550℃
1504
DE150×DE150
60×52
149±4
0.125±0.015
550℃
1506
E110×E110
47×45
162±4
0.140±0.015
550℃
2112
E225×E225
40×40
70±3
0.070±0.010
550℃
2113
E225×D450
60×56
78±3
0.070±0.010
550℃
2116
Plain
E225×E225
60×58
105±3
0.090±0.010
550℃
1*100
10.5
2117
E225×E225
60×55
107±3
0.090士0.010
550℃
2125
E225×G150
40×40
86±3
0.085±0.010
550℃
2155
E225×DE150
60×55
125±3
0.110±0.010
550℃
2313
E225×D450
60×64
81±3
0.075±0.010
550℃
3313
DE300×DE300
60×62
81±3
0.075±0.010
550℃
7627
G75×G75
44×30
200±4
0.170±0.020
550℃
7628
Plain
G75×G75
44×33
208±4
0.180±0.020
550℃
21
7630
Plain
G75×G75
44×32
220±4
0.190±0.020
550℃
1*100
22
7638
Plain
G75×G37
44×26
255±5
0.240±0.020
550℃
1*100
25.5
7567
G67×G67
44×32
220±4
0.190±0.020
550℃
7667
G67×G67
44×36
234±5
0.190±0.020
550℃
Electronic cloth refers to the general term for electronic grade glass fiber cloth used in the electronics industry. It is a high-end product among electronic grade fiberglass cloths. The main specifications are 7637, 7630, 7628, 7615, 1506, 2116, 2113, 3313, (e-glass)1080, 106, 104, which are mainly used for the manufacture of copper clad with laminates.
According to the IPCEG 14 0 standard promulgated by the United States in April 1988, this electronic grade fiberglass cloth has 33 specifications. The thinnest is called 10 4 cloth, with a thickness of only 0.02 8 mm; the heaviest is called 7652 cloth, which can reach 25 2g/m2. These special specifications of electronic cloth are not used much in the (basalt stone) electronics industry. Three of types of electronic cloth specifications commonly used in the electronics industry. The one with the largest dosage is 7628 cloth, with a thickness of 0.173mm and a mass per unit area of 204.4 g/m2; the second is 2116 cloth, with a nominal thickness of 0.094mm and a mass per unit area of 102g/m2; the one with a slightly smaller dosage is It is 1080 cloth, its nominal thickness is 0.053mm, and its unit area mass is 46.8g/m2.
