fiberglass chopped strand mat

$6.00

1-29 Kilogram
$1.35

30-999 Kilogram
$1.00

≥1000 Kilogram

Transportation:: Ocean, Land, Air, Express, CAR

Port:: Qingdao, Dalian Port, Shen Zhen Port

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	20 tons/daily
Supply Ability:	20 tons/daily
Payment Type:	T/T,Paypal,Alibaba,West Union,Alipay,etc
Incoterm:	FOB,CIF,EXW,DDP,DDU,Express Delivery,DAF
Certificate:	ISO,CE,Test Report,etc.
HS Code:	7019909990
Transportation:	Ocean,Land,Air,Express,CAR
Port:	Qingdao,Dalian Port,Shen Zhen Port

Product Description

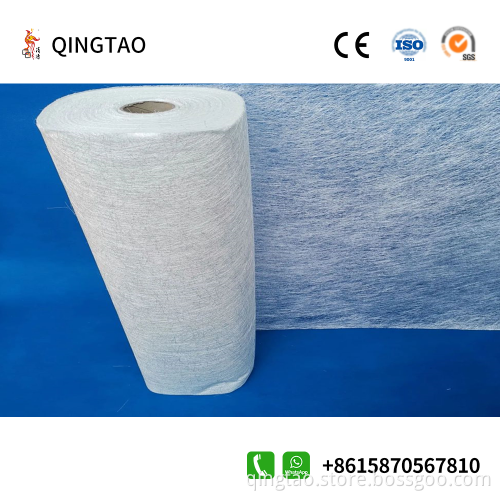

Chopped (Glass Mat) strand mat is made of E/C chopped strands (Fiber glass) randomly distributed and bonded with powder or emulsion polyester binder. The mat is compatible with unsaturated polyester,(Fibreglass mat) vinyl ester and various other resins. Mainly used in hand lay-up, fiber winding and molding procedure. Typical FRP products include plates, storage tanks, ships, pipes, etc.

Procedure of the production
Handmade lamination Procedure
Reinforcement material's type of fiberglass strands (Fiberglass cloth) , mats, or woven rovings is first placed into a mold coated with a release agent and gel coat. The resin mixture is then applied by hand using a brush or airbrush. This is then used to ensure even impregnation, complete wetting of the glass and removal of any trapped air bubbles. Repeat this operation until the desired thickness of the structure is obtained. After curing at room temperature / under heat, the finished part is formed.

Fiberglass Combo Mat

Pultru-sion Procedure

Rovings, mats or other fabrics are pulled through a resin impregnation bath and then into a heated die using a continuous pulling device. The final product is formed under high temperature and high pressure conditions.

Difference Between Fiberglass Cloth And Mat

Continuous Panel Molding Process
A controlled amount of the resin mixture is deposited uniformly onto the moving film at a constant speed. The thickness of the resin is controlled by a broach. Fiberglass rovings are chopped and evenly distributed over the resin. The top film is then applied to form a sandwich structure. The wet components are passed through a curing oven to form composite panels.

Vacuum Pattern Model
It involves laying reinforced material into a mold, covering the entire layer with a vacuum bag, sealing the periphery with a sealant, and then sucking in the resin in a vacuum. The resin completely penetrates the reinforcement and cures to form the end of product，chopped strand mat，building mat，fiberglass batt.
Chopped Strand Mat Uses

Item	Standard Weight	Width(mm)	Loss On lgnition	Moisture(%)	Compatible
Item	(g/m2)	Width(mm)	(%)	Moisture(%)	Resins
A	225	1040/1270/2080≤3300	2-6	≤0.2	UP VE EP
B	300	1040/1270/2080≤3300	2-6	≤0.2	UP VE EP
C	380	1040/1270/2080≤3300	2-6	≤0.2	UP VE EP
D	450	1040/1270/2080≤3300	2-6	≤0.2	UP VE EP
E	600	1040/1270/2080≤3300	2-6	≤0.2	UP VE EP
F	900	1040/1270/2080≤3300	2-6	≤0.2	UP VE EP
