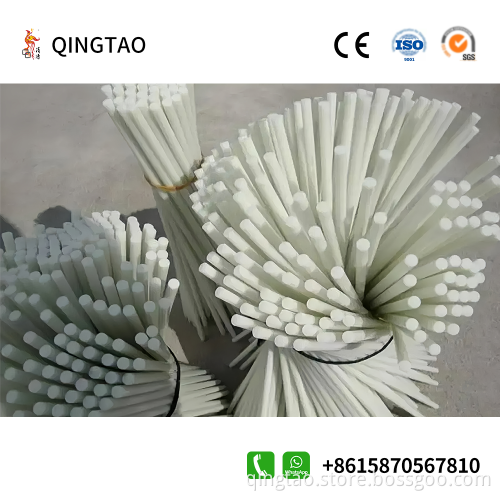

High Strength Fiberglass Rod White Fiberglass Rod 0.118inch
-
$8.001-999 Others
-
$0.531000-599999 Others
-
$0.10≥600000 Others
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Shen Zhen Port, Qingdao, Dalian Port
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 20 tons/daily |
| Supply Ability: | 20 tons/daily |
| Payment Type: | T/T,Paypal,Alibaba,West Union,Alipay,etc |
| Incoterm: | FOB,CIF,EXW,DDP,DDU,Express Delivery |
| Certificate: | CE,ISO,Test Report,etc. |
| HS Code: | 7019909990 |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Shen Zhen Port,Qingdao,Dalian Port |
The relative density is between 1.5 and 2.0, which is only 1/4 to 1/5 of carbon steel. However, the tensile strength is close to or even exceeds carbon steel, and the specific strength can be compared with high-grade alloy steel. Therefore, it has excellent results in aviation, rockets, spacecraft, high-pressure vessels and other products that need to reduce their own weight. The tensile, bending and compressive strength of some epoxy FRP can reach more than 400Mpa.
| Fiberglass Rod | |||||||
| Diameter | Weight | Diameter | Weight | ||||
| mm | inch | g/m | lb/ft | mm | inch | g/m | lb/ft |
| 2 | 0.079 | 6 | 0.004 | 17.5 | 0.689 | 481 | 0.323 |
| 3 | 0.118 | 14 | 0.009 | 18 | 0.709 | 509 | 0.342 |
| 3.2 | 0.126 | 16 | 0.011 | 19 | 0.748 | 567 | 0.381 |
| 4 | 0.157 | 25 | 0.017 | 20 | 0.787 | 628 | 0.422 |
| 5 | 0.197 | 39 | 0.026 | 22 | 0.866 | 760 | 0.511 |
| 6 | 0.236 | 57 | 0.038 | 24 | 0.945 | 905 | 0.608 |
| 6.35 | 0.25 | 63 | 0.043 | 25 | 0.984 | 982 | 0.66 |
| 7 | 0.276 | 77 | 0.052 | 25.4 | 1 | 1013 | 0.681 |
| 7.5 | 0.295 | 88 | 0.059 | 26 | 1.024 | 1062 | 0.714 |
| 8 | 0.315 | 101 | 0.068 | 28 | 1.102 | 1232 | 0.828 |
| 8.5 | 0.335 | 113 | 0.076 | 30 | 1.181 | 1414 | 0.95 |
| 9.5 | 0.374 | 142 | 0.095 | 32 | 1.26 | 1608 | 1.081 |
| 10 | 0.394 | 157 | 0.106 | 35 | 1.378 | 1924 | 1.293 |
| 11 | 0.433 | 190 | 0.128 | 36 | 1.417 | 2036 | 1.368 |
| 12 | 0.472 | 226 | 0.152 | 38 | 1.496 | 2268 | 1.524 |
| 12.7 | 0.5 | 253 | 0.17 | 40 | 1.575 | 2513 | 1.689 |
| 14 | 0.551 | 308 | 0.207 | 45 | 1.772 | 3181 | 2.137 |
| 15 | 0.591 | 353 | 0.237 | 50 | 1.969 | 3927 | 2.639 |
| 15.7 | 0.618 | 387 | 0.26 | 50.8 | 2 | 4054 | 2.724 |
| 16 | 0.63 | 402 | 0.27 | 76 | 2.992 | 9073 | 6.097 |
| 16.5 | 0.65 | 428 | 0.287 | 100 | 3.937 | 15708 | 10.555 |
| If there are any differences in parameters, staff will inform you during consultation | |||||||
FRP is a good corrosion-resistant material and has good resistance to the atmosphere, water, general concentrations of acids, alkalis, salts, and various oils and solvents. It has been applied to all aspects of chemical anti-corrosion and is replacing carbon steel, stainless steel, wood,（Fiber glass rod） non-ferrous （Fiberglass cloth） coherer, etc.
It(glass rod) is an excellent insulating material and is used to make insulators. Good dielectric properties can still be protected at high frequencies. It has good microwave permeability and has been widely used in radar radomes.
