Solid Flexible Fiberglass Rod Composite 0.197 inch
-
$8.001-9999 Others
-
$0.5610000-5999999 Others
-
$0.10≥6000000 Others
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Shen Zhen Port, Qingdao, Dalian Port
Your message must be between 20 to 2000 characters
Contact NowPlace of Origin: | China |
---|---|
Productivity: | 20 tons/daily |
Supply Ability: | 20 tons/daily |
Payment Type: | T/T,Paypal,Alibaba,West Union,Alipay,etc |
Incoterm: | FOB,CIF,EXW,DDP,DDU,Express Delivery |
Certificate: | CE,ISO,Test Report,etc. |
HS Code: | 7019909990 |
Transportation: | Ocean,Land,Air,Express |
Port: | Shen Zhen Port,Qingdao,Dalian Port |

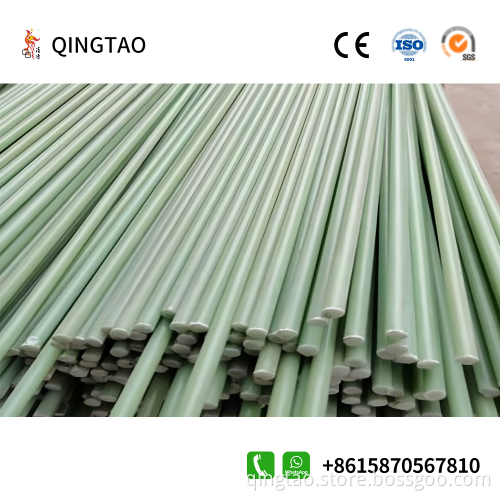

Glass fiber rod is a pultruded fiberglass composite material, which is a thermosetting elastic material made of continuous glass fiber roving and resin under the traction and molding of a pultrusion molding machine; the resin-rich layer on the surface makes it have good anti-corrosion properties. It has light weight, high strength, good elasticity, stable and precise dimensions, and has excellent properties such as insulation, non-heat conductivity, flame retardant, beautiful appearance and easy maintenance. It is the best alternative to steel and other materials in projects with corrosive environments. Excellent products, and widely used in: optical cable reinforcement core, sports equipment products, flagpoles, car hood poles, tent poles, grain machine booms, curtain poles, sign poles, exhaust fan columns, automobile antennas, building and bridge reinforcement, mechanical transmission shafts , golf clubs, yard fences, kite frames, aluminum film balloon frames, umbrella frames, support blanket frames, aircraft model frames, luggage frames, fishing gear accessories, etc. The specifications are: 0.5mm~~~90mm (generally commonly used specifications), Special specifications can be molded and produced according to customer require (Fiber glass) (glass rod) (Fiberglass cloth)
Fiberglass Rod | |||||||
Diameter | Weight | Diameter | Weight | ||||
mm | inch | g/m | lb/ft | mm | inch | g/m | lb/ft |
2 | 0.079 | 6 | 0.004 | 17.5 | 0.689 | 481 | 0.323 |
3 | 0.118 | 14 | 0.009 | 18 | 0.709 | 509 | 0.342 |
3.2 | 0.126 | 16 | 0.011 | 19 | 0.748 | 567 | 0.381 |
4 | 0.157 | 25 | 0.017 | 20 | 0.787 | 628 | 0.422 |
5 | 0.197 | 39 | 0.026 | 22 | 0.866 | 760 | 0.511 |
6 | 0.236 | 57 | 0.038 | 24 | 0.945 | 905 | 0.608 |
6.35 | 0.25 | 63 | 0.043 | 25 | 0.984 | 982 | 0.66 |
7 | 0.276 | 77 | 0.052 | 25.4 | 1 | 1013 | 0.681 |
7.5 | 0.295 | 88 | 0.059 | 26 | 1.024 | 1062 | 0.714 |
8 | 0.315 | 101 | 0.068 | 28 | 1.102 | 1232 | 0.828 |
8.5 | 0.335 | 113 | 0.076 | 30 | 1.181 | 1414 | 0.95 |
9.5 | 0.374 | 142 | 0.095 | 32 | 1.26 | 1608 | 1.081 |
10 | 0.394 | 157 | 0.106 | 35 | 1.378 | 1924 | 1.293 |
11 | 0.433 | 190 | 0.128 | 36 | 1.417 | 2036 | 1.368 |
12 | 0.472 | 226 | 0.152 | 38 | 1.496 | 2268 | 1.524 |
12.7 | 0.5 | 253 | 0.17 | 40 | 1.575 | 2513 | 1.689 |
14 | 0.551 | 308 | 0.207 | 45 | 1.772 | 3181 | 2.137 |
15 | 0.591 | 353 | 0.237 | 50 | 1.969 | 3927 | 2.639 |
15.7 | 0.618 | 387 | 0.26 | 50.8 | 2 | 4054 | 2.724 |
16 | 0.63 | 402 | 0.27 | 76 | 2.992 | 9073 | 6.097 |
16.5 | 0.65 | 428 | 0.287 | 100 | 3.937 | 15708 | 10.555 |
If there are any differences in parameters, staff will inform you during consultation |
