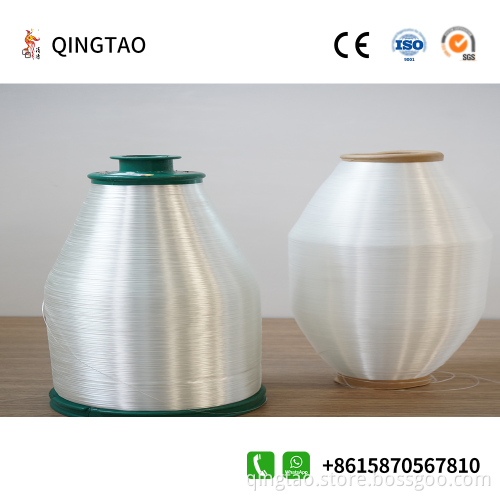

fiberglass yarn /glass-fiber yarn/fiberglass tube yarn
-
$1.781-999 Kilogram
-
$0.531000-599999 Kilogram
-
$0.34≥600000 Kilogram
- Transportation:
- Ocean, Land, Air, Express, Car
- Port:
- Shen Zhen Port, Qingdao, Dalian Port
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Productivity: | 20 tons/daily |
| Supply Ability: | 20 tons/daily |
| Payment Type: | T/T,Paypal,Alibaba,West Union,Alipay,etc |
| Incoterm: | FOB,CIF,EXW,DDP,DDU,Express Delivery |
| Certificate: | ISO,CE,TEST REPORT,etc. |
| HS Code: | 7019120090 |
| Transportation: | Ocean,Land,Air,Express,Car |
| Port: | Shen Zhen Port,Qingdao,Dalian Port |
Product Description
Product Description
Fiberglass yarn is electrical insulation materials, electronic industrial fabrics, tubes and other industrial fabric raw materials. It is widely used for circuit board, weaving all kinds of fabrics in the scope of reinforcement, insulation, corrosion resistance, heat resistance and so on.
| Product Specification | ||||
| Type | Glass | Filament Diameter | Type in U.S.A. | Twist Degree |
| EC9-33X1X2 | E | 9um | ECG 150 1/2 | S65 |
| EC9-33X1X3 | E | 9um | ECG 150 1/3 | S65 |
| EC9-33X2X3 | E | 9um | ECG 150 2/3 | S110 |
| EC9-68X1X0 | E | 9um | ECG 75 1/0 | Z28-35 |
| EC9-68X1X2 | E | 9um | ECG 75 1/2 | S28-110 |
| EC9-136X1X0 | E | 9um | ECG 37 1/0 | Z28-35 |
| EC9-136X1X2 | E | 9um | ECG 37 1/0 | S28-110 |
| EC5.5-12x1x0 | E | 5.5um | ECD 450 1/0 | S40 |
| EC5.5-12x1x2 | E | 5.5um | ECD 450 1/2 | S40 |
| CC9-33x1x2 | C | 9um | CCG 150 1/2 | S28-100 |
| CC9-33x2x2 | C | 9um | CCG 150 2/2 | S28-100 |
Glass fiber is a material composed of countless small glass fibers, which can be divided into roving and fine yarn. Roving is also called glass fiber twisted roving, and its diameter is relatively large, usually between 10-50 μm; spun yarn is also called glass fiber twisted spun yarn, and its diameter is relatively small, usually between 3-10 μm.
2. Characteristics and uses of glass fiber rovings and spun yarns
1.Fiberglass rovings and spun yarns differ (Fiberglass cloth) significantly in the following (glass yarn) of aspects:
(1) Different diameters: The Dia. of roving yarn is large, and the diameter of fine yarn is small.
(2) Different fineness: fineness of spun yarn is large, while fineness of roving is small.
(3) Different tensile strengths: The tensile strength of spun yarns is relatively high, while the (Glass fiber yarn) tensile strength of roving yarns is relatively low.
2.Fiberglass rovings and spun yarns also have different uses. Generally speaking, roving is used in reinforcing materials, such as building products, thermal insulation materials, filter products, etc.; while fine yarn is suitable for high-strength insulation materials, electronic industry, fabrics, chemical hygiene protection in acid, alkali, salt and other environments, and wires. Cables and other fields.
