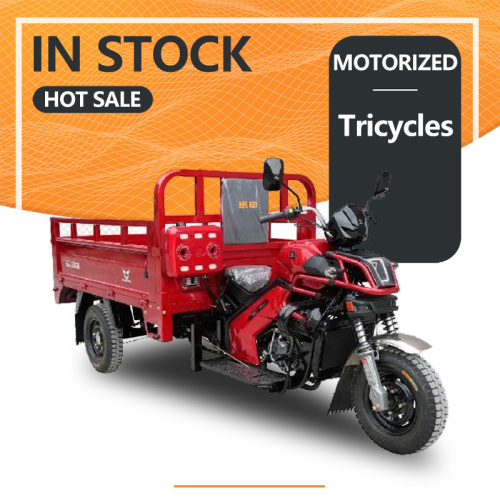

Motorized tricycle with driver's cab
  • Motorized tricycle with driver's cab
  • Motorized tricycle with driver's cab
  • Motorized tricycle with driver's cab
  • Motorized tricycle with driver's cab
Motorized tricycle with driver's cab
Motorized tricycle with driver's cab
Motorized tricycle with driver's cab
Motorized tricycle with driver's cab

Motorized tricycle with driver's cab

Transportation:
Ocean, Land
Port:
chongqing
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: L/C,T/T,Paypal
Transportation: Ocean,Land
Port: chongqing
Product Description
Product Description

A cab-mounted tricycle is a unique vehicle that consists of three wheels and is equipped with an enclosed cab to provide a safer and more comfortable driving experience. This type of vehicle is commonly used for transportation and tourism in urban and rural areas. Tricycle for Adults with cabs, as the name suggests, add a cockpit to the original tricycle, allowing the driver to have a relatively closed space. This model not only has the advantages of an Electric Tricycles, but also increases the driver's comfort and privacy, so it is very popular among consumers.

New Transportation Electric Tricycle

1. High safety. Motorized tricycles with cabs are usually equipped with powerful motors and braking systems, which can maintain stable control at high speeds. They also have powerful driving lights, which provide good visibility and safety protection.


2. Good comfort. The cab is equipped with comfortable seats and an air-conditioning system, which can enable the driver to maintain a comfortable working environment in extreme weather and bring a better driving experience.


3. Large storage space. This type of vehicle is usually equipped with a large-capacity storage box, which can conveniently store and transport items.


4. Green and environmentally friendly, tricycles with cabs usually use electricity or gas as energy, which reduces pollution and has a smaller impact on the environment.


5. Multi-purpose, tricycles with cabs can be used in many fields, such as freight, personnel transportation, commercial activities, tourism, etc.


Product Parameter


Model Name ZS200ZH-25C (NEW GOOD LUCK )
Engine type CG200cc JINGQING/250CC JINZHAN, four stroke, water-cooled,
Cylinder Arrangement Single Cylinder
Bore×Stroke (mm) 63.5*62.2
Piston Displacement (cc) 197/249
Lubrication Method Pressure and splash
Compression Ratio 10.5:1
Maximum Power(kw/r/min) 10.3/7500/11.8/6500
Maximum Torque(N.m./rpm) 14.2/6000
Transmission System shaft drive with reverse gear
Ignition Type CDI
Starter System electric & kick start
Transmission Forward cycle 5 gears ( 0-1-2-3-4-5) + Reverse gear
Minimum Fuel Consumption(g/Kw.h) ≤354
Net weight(kg) 399
Clutch method Manual wet multi-plate
L×W×H (mm) 3460*1300*1490
wheel base (mm) 2350
Ground Clearance (mm) 190
Seat Height (mm) 870
Dry Weight (kg) ≤440
Brake (Front/Rear) front & rear drum brake
Wheel iron wheel
Tyre, Front 5.00-12
Tyre, Rear 5.00-12
Rear Carriage 2000mm x 1.300mX340MM rear carriage (390mm side door + 150mm guard bar=540mm)
Front suspension four Φ30 + outer springs
Rear suspension 850*70mm steel plate spring (8pcs / side) + rear shock damper
Rear Axle Φ70 full floating for hilly road, with booster(8:24), 1140mm of Length, Φ220 drum brake
Fuel tank 23L
Battery 12V28A
Max. Loading Capacity (Kg) 2000-2500
Max. Speed 65 km/h
Chassis Longitudinal beam 40 × 80/Flat frame edge wrapping 820/Wheel pitch 1060
Accessories with emergency flash light, on board tools bag.
